65
HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-21 +BV3 (3-CR)
✩ 102 A-1144-739-A MAIN BOARD, COMPLETE (DZ119)
✩ 102 A-1178-935-A MAIN BOARD, COMPLETE (DZ410)
103 3-077-331-01 +BV3 (3-CR)
104 1-787-331-11 FAN, D.C.
0 106 1-751-520-31 CORD, POWER (UK)
0 106 1-777-071-22 CORD, POWER (DZ119)
0 106 1-830-188-11 CORD, POWER (DZ410:AEP)
107 3-703-244-00 BUSHING (2104), CORD
108 3-077-331-11 +BV3 (3-CR)
109 A-1144-737-A POWER BOARD, COMPLETE (DZ119)
109 A-1177-660-A POWER BOARD, COMPLETE (DZ410)
110 1-828-292-11 WIRE (FLAT TYPE)(5 CORE)
111 1-828-332-11 WIRE (FLAT TYPE)(13 CORE)
112 1-828-300-11 WIRE (FLAT TYPE)(7 CORE)
113 1-828-330-11 WIRE (FLAT TYPE)(13 CORE)
114 2-597-972-11 SHEET, RADIATION
115 2-597-972-21 SHEET, RADIATION
0F901 1-532-325-00 FUSE, TIME-LAG (T6.3AL/250V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-881-09 SCREW +BVTT 4X8 (S)

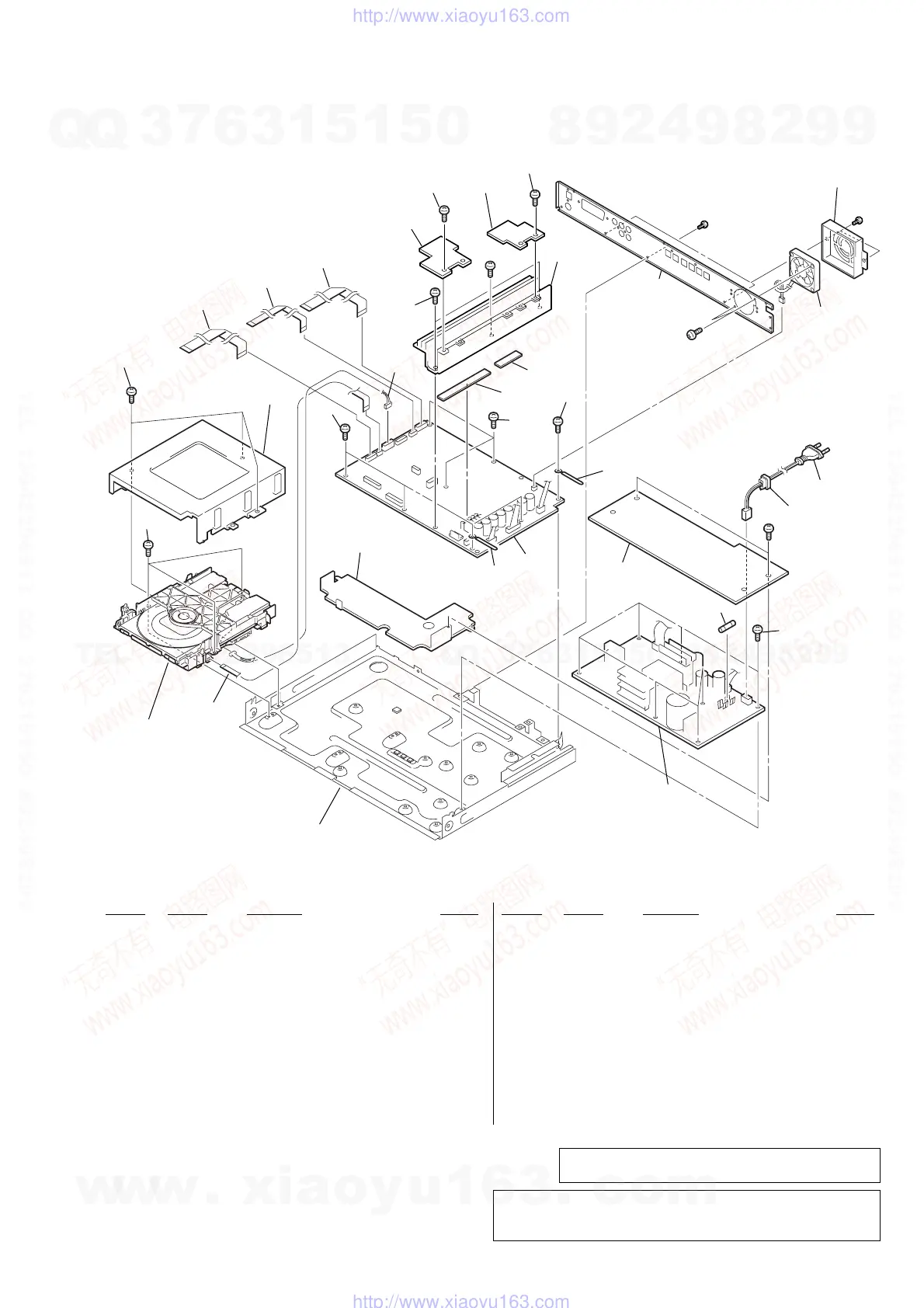

7-3. CHASSIS SECTION
101
114
102
104
103
109
115
101
103
101
107
106
101
101
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
F901
not
supplied
not
supplied
not
supplied
not
supplied
#1
#1
#1
#4
not supplied
DVD mechanism
deck section
(CDM85-DVBU102)
#2
103
not
supplied
111
108
112
113
110
✩ New part of EEP ROM (IC1103) on the MAIN board cannot be used.
Therefore, if the mounted MAIN board (A-1144-739-A, etc.) is replaced,
exchange new EEP ROM (IC1103) with that used before the replacement.
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
Ver. 1.1
