Sony HCD-DZ119 - Printed Wiring Board - I;O SCART Board (Side A)

4343
HCD-DZ119/DZ410
HCD-DZ119/DZ410

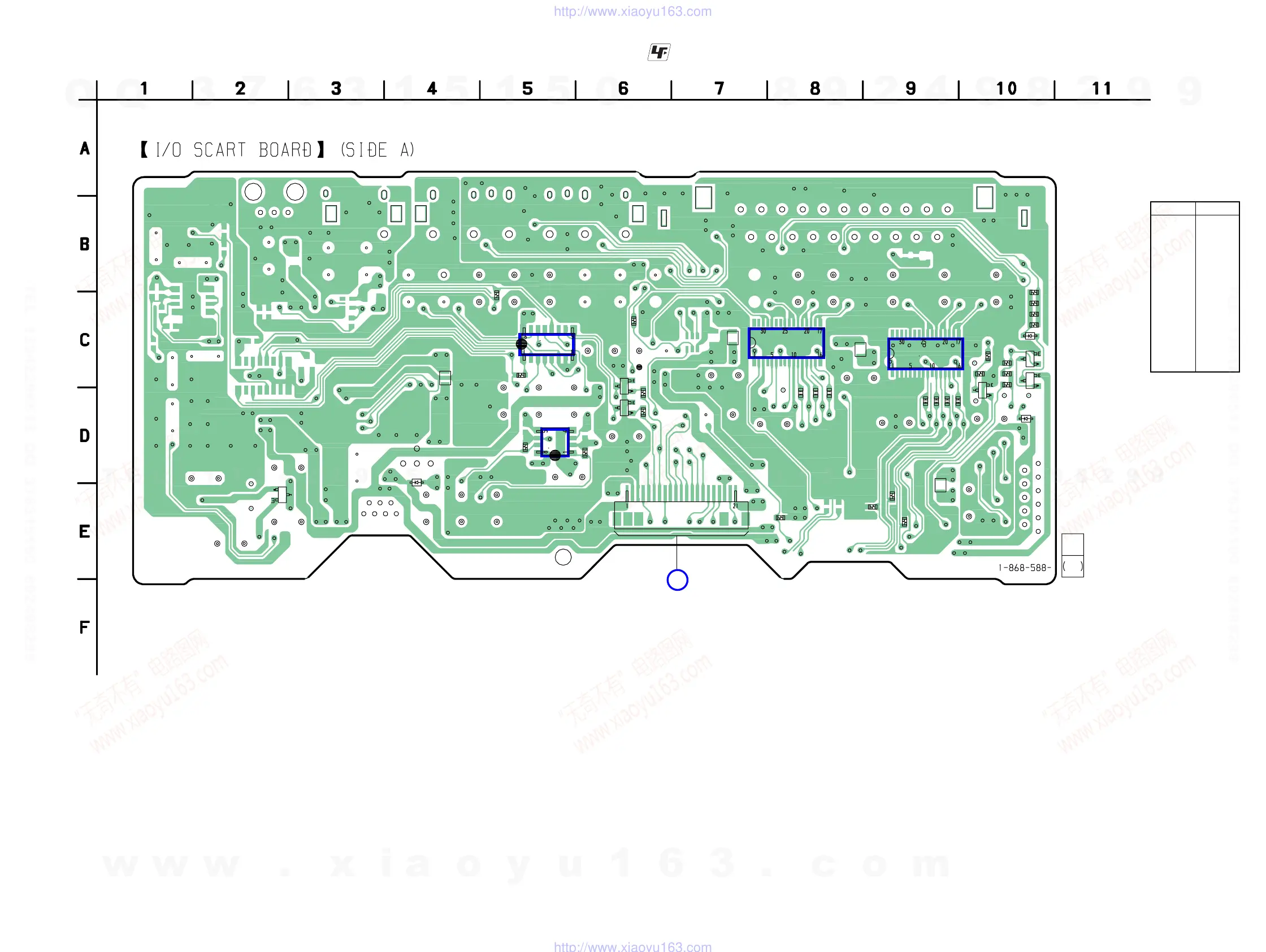

6-18. PRINTED WIRING BOARD – I/O SCART BOARD (SIDE A) –
• See page 25 for Circuit Boards Location.
:Uses unleaded solder.
IC230
IC201
IC360
IC350
E
MAIN BOARD
CN507
(Page 32)
12
12
Q300
D300
R365
R355
L350
R366
Q396Q395
R357R399
R367
R209
R281
R282
R280
R278
R279
D272
Q273 Q272
R277
Q276
C238 C234 C239 C240
R273
R272
R271
D271
R227
R228
L300
R229
CN301
R232
C209 C208 C210
L231
L201
• Semiconductor
Location
Ref. No. Location
D271 D-10
D272 C-10
D300 D-4
IC201 C-8
IC230 C-9
IC350 C-5
IC360 D-5
Q272 C-10
Q273 C-10
Q276 C-10
Q300 E-2
Q395 D-6
Q396 C-6
