Sony HCD-DZ119 - Page 7

7
HCD-DZ119/DZ410

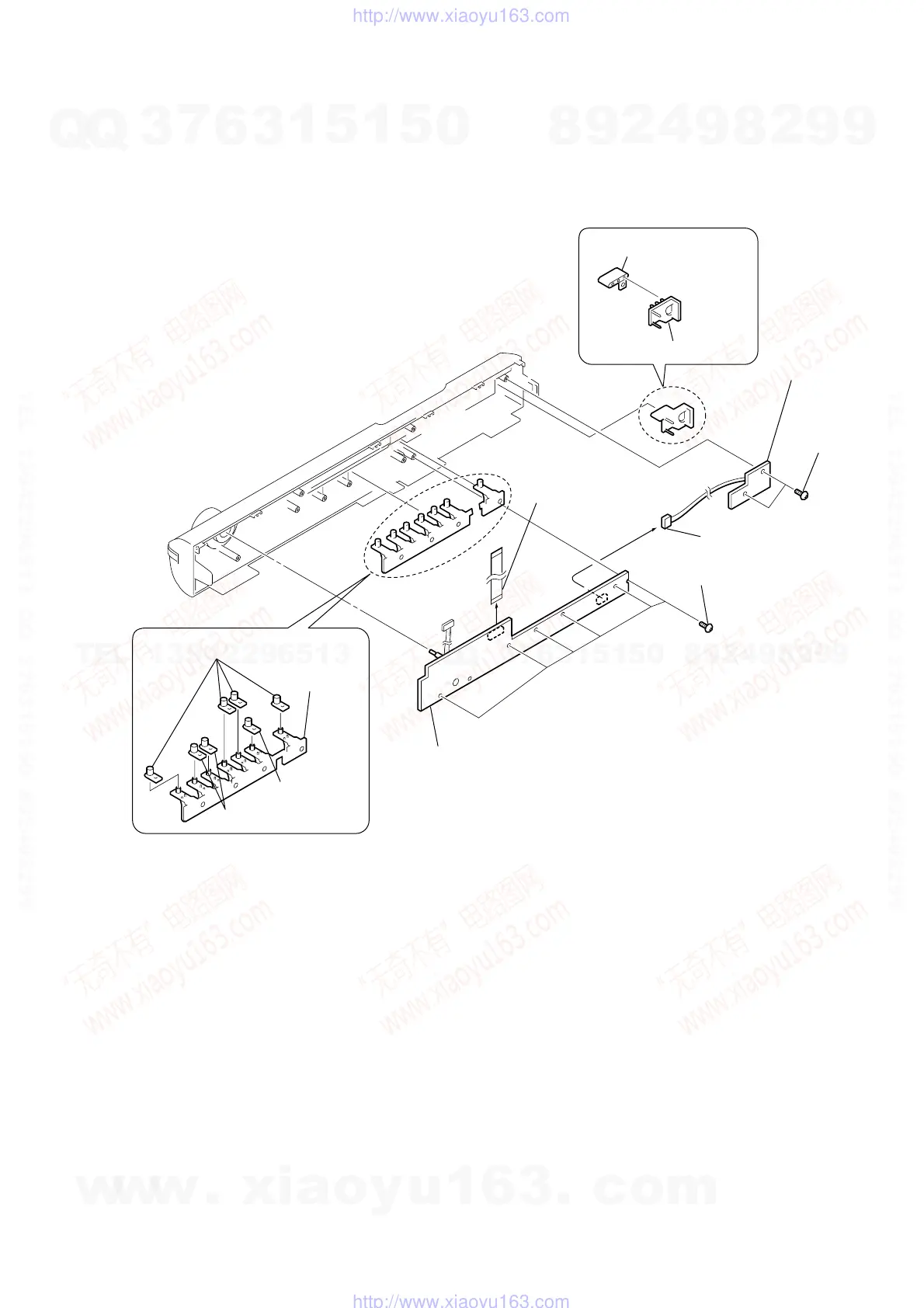

JACK board
BUTTON BASE
(PLAY)
CAP (POWER)
wire (flat type)
13core (CNP802)
connector (CNP801)
six screws (+BVTP 2.6)
two screws
(+BVTP 2.6)
BUTTON BASE (POWER)
SW board
CAP (PLAY)
CAP (AMS)
CAP (FUNC)
Precaution when replacing the CAP (HCD-DZ410 model)
Please apply the adhesive agent to the BUTTON BASE (PLAY) when replacing the CAP (PLAY) or CAP (FUNC) or CAP (AMS).
Please apply the adhesive agent to the BUTTON BASE (POWER) when replacing the CAP (POWER).
