HCD-EC68/EC78
10

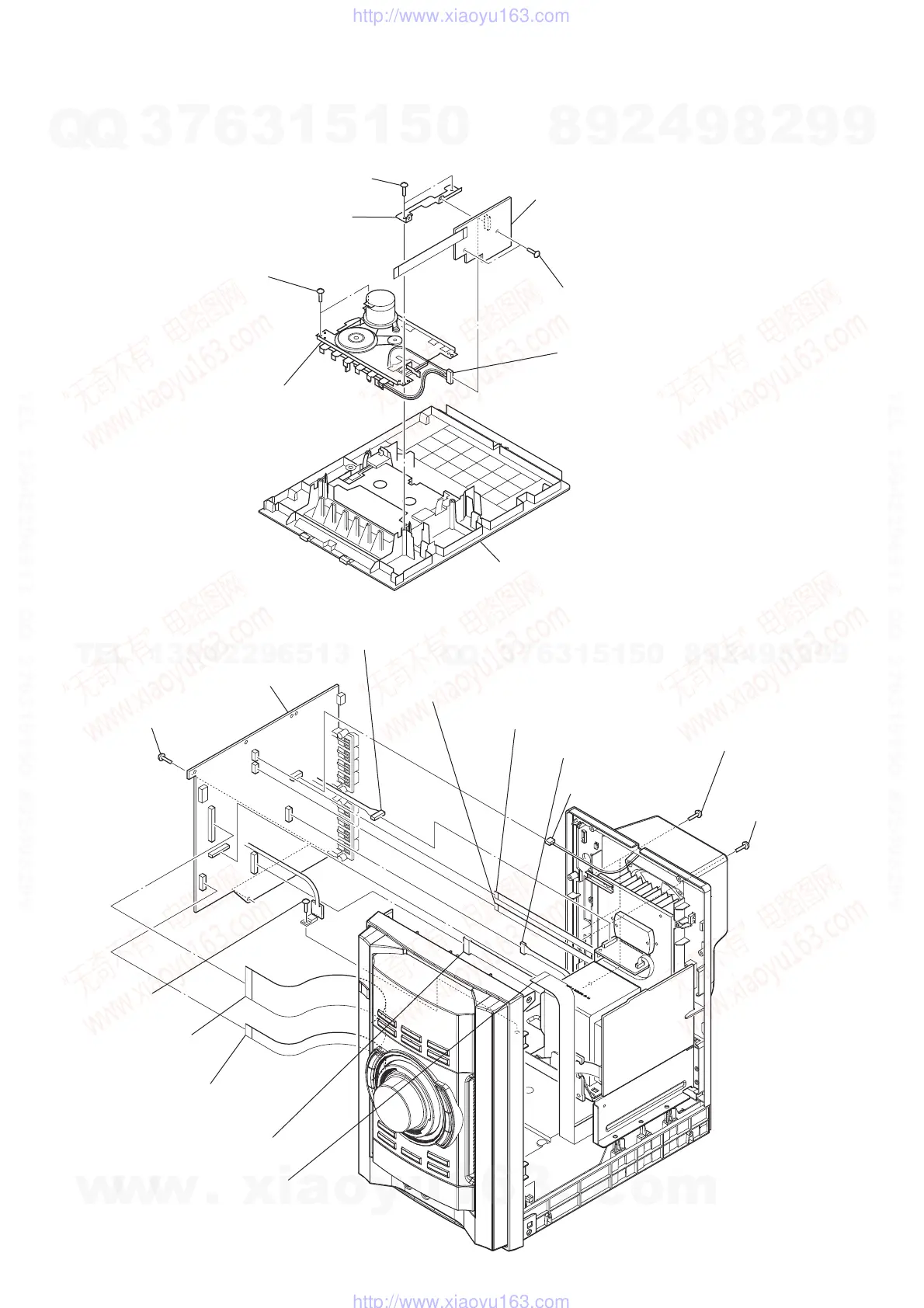

3-5. MAIN BOARD
RT
two screws
(BVTP3
×
10) (EC78)
RB
two screws
(BVTP3
×
10)
connector (CN601)
connector (CN633)
flexible flat cable (5 core)
(CN603)
flexible flat cable (5 core)
(CN602) (EC78)
connector (CN151)
RG
MAIN board
RE
two screws
(BVTP3
×
6)
screw
(BVTP3
×
10)
flexible flat cable (27 core)
(CN607)
flexible flat cable (9 core)
(CN605)
connector (CN604)
flexible flat cable (21 core)
(CN608)
3-4. TAPE MECHANISM DECK (EXCEPT EC68: UK MODEL)
Note: This illustration is seeing top panel block from inside.
two screws
(2.6
×
8)
two screws
(2.6
×
8)
bracket (deck)
DECK board
two screws
(BVTP3
×
6)
connector (CN501)
tape mechanism deck
(TCM-J1 or CS-21SC-900TP)
top panel block
