44
HCD-EC68/EC78
SECTION 8
EXPLODED VIEWS
1 3-276-203-01 DOOR (CD)
2 3-363-099-32 SCREW (CASE 3 TP2)
3 2-890-831-11 PANEL (L), SIDE
4 2-890-830-11 PANEL (R), SIDE
(EC68/EC78: E2, E3, E51, MX, AR)
4 2-890-830-31 PANEL (R), SIDE (EC78: AEP, RU)
5 2-890-829-11 PANEL (TOP) (EC68: UK)
6 3-254-143-11 SCREW (B3), (+) BV TAPPING
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#5 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts of Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AR : Argentina model
AUS : Australian model
E2 : 120V AC area in E model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

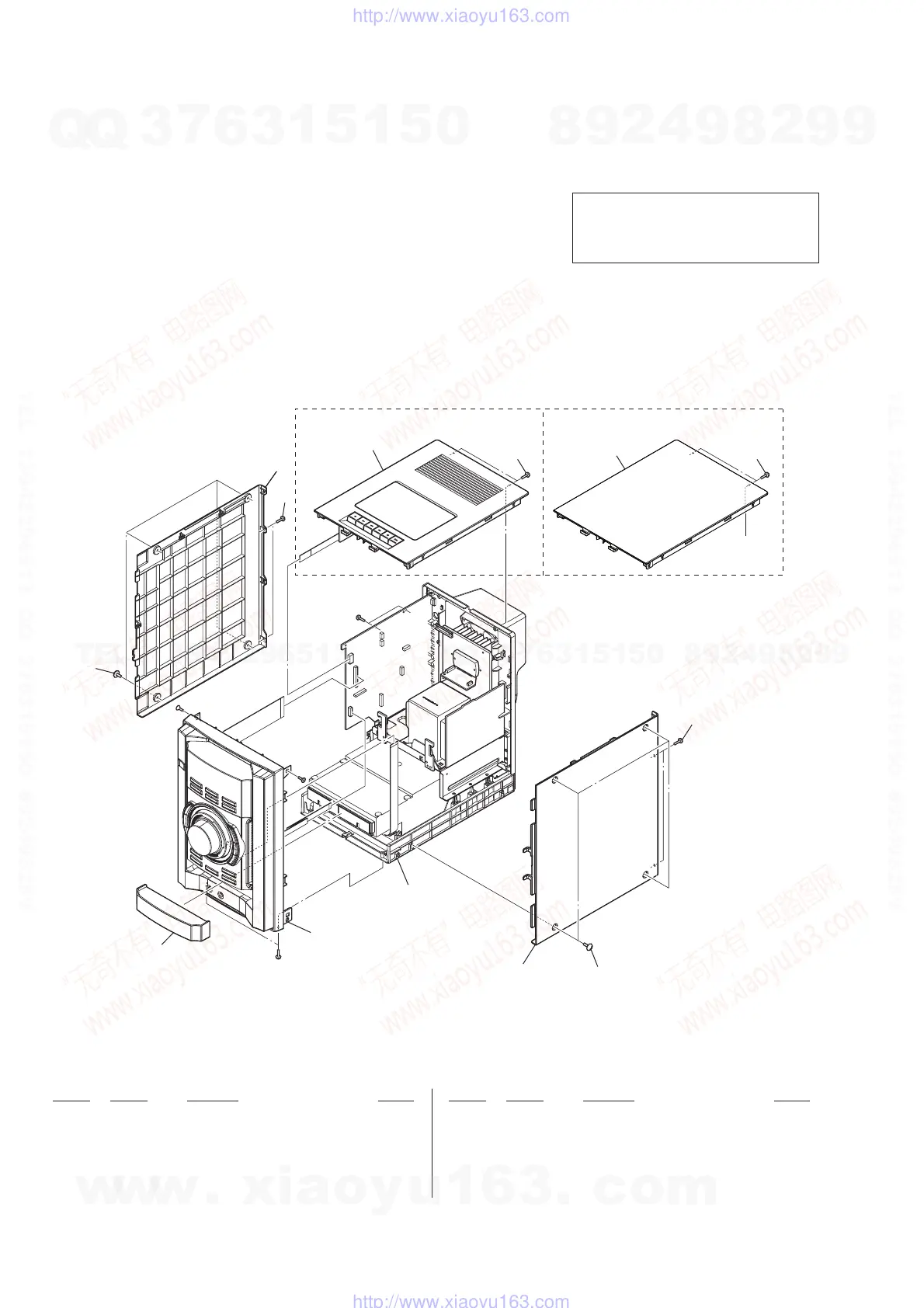

8-1. PANEL SECTION
1
2
4
2
3
#1
#1
#5
#5
chassis section
tape deck section
(EXCEPT EC68:UK) (EC68:UK)
front panel section
5
6
6 6
6
E3 : 240V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
RU : Russian model
