Sony HCD-EC98P - Front Panel Block (Australian Model); MAIN Board

HCD-EC98P
12
RE
five screws
(BVTP3
×
10)

fan connector (CN601)

connector (CN633)

flexible flat cable (7 core)
(CN643)

flexible flat cable (5 core)
(CN602)

connector (CN151)
RH
MAIN board
RG
two screws
(BVTP3
×
6)
RT
screw
(BVTP3
×
10)

flexible flat cable (31 core)
(CN803)

flexible flat cable (9 core)
(CN605)

flexible flat cable (11 core)
(CN609)

connector (CN654)

flexible flat cable (21 core)
(CN608)
RB
fan connector (CN701)
(US, Canadian)

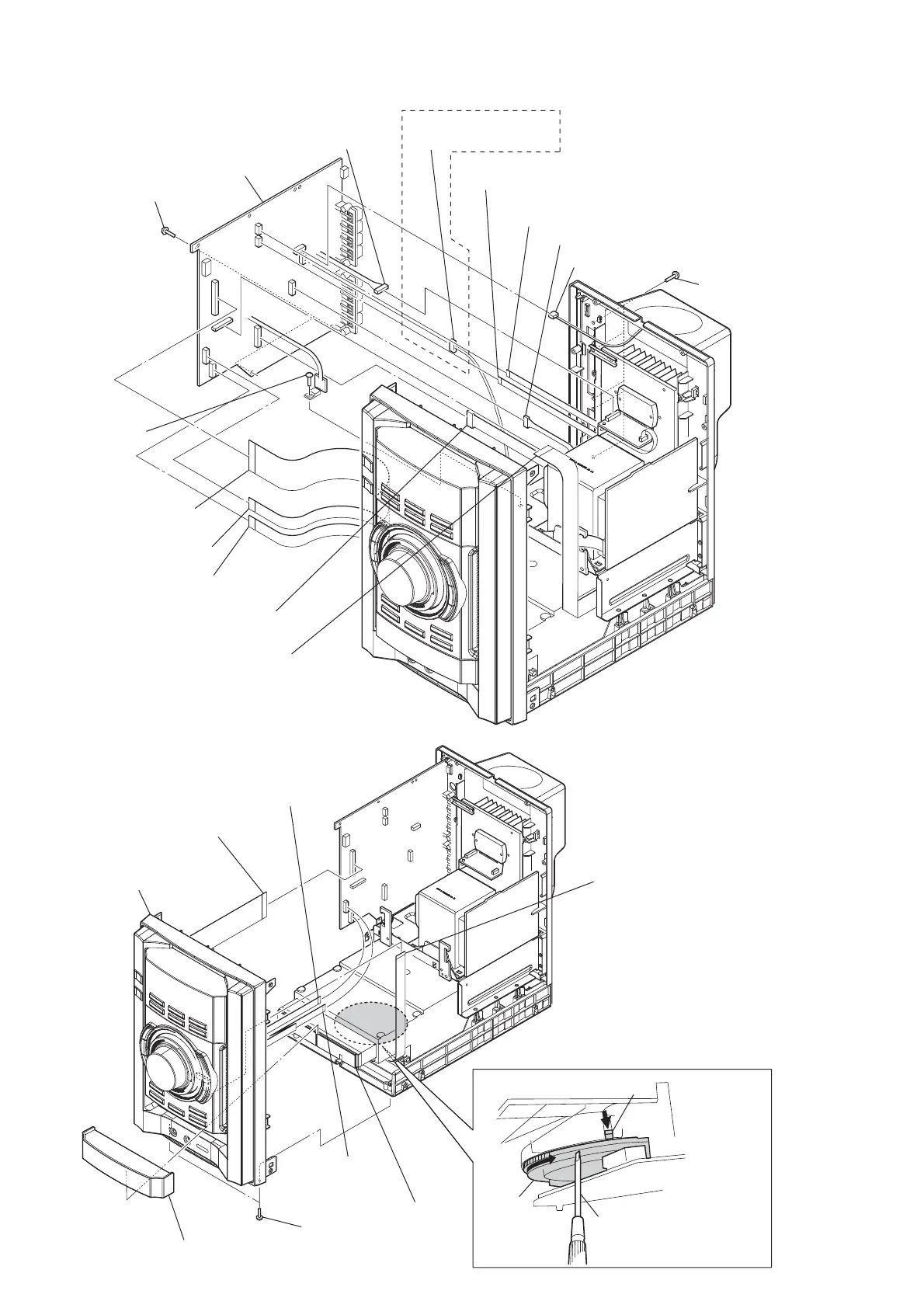

3-4. MAIN BOARD

two screws
(BVTP3
×
10)

flexible flat cable
(9 core) (CN605)

flexible flat cable
(11 core) (CN609)

Turn a gear by a driver
till a lever falls down
to the position of the figure.

pull the tray by hand.
lever
gear

flexible flat cable (31 core)
(CN803)

flexible flat cable (13 core)
(CN302)

door (CD)

front panel block
3-5. FRONT PANEL BLOCK (Australian model)
