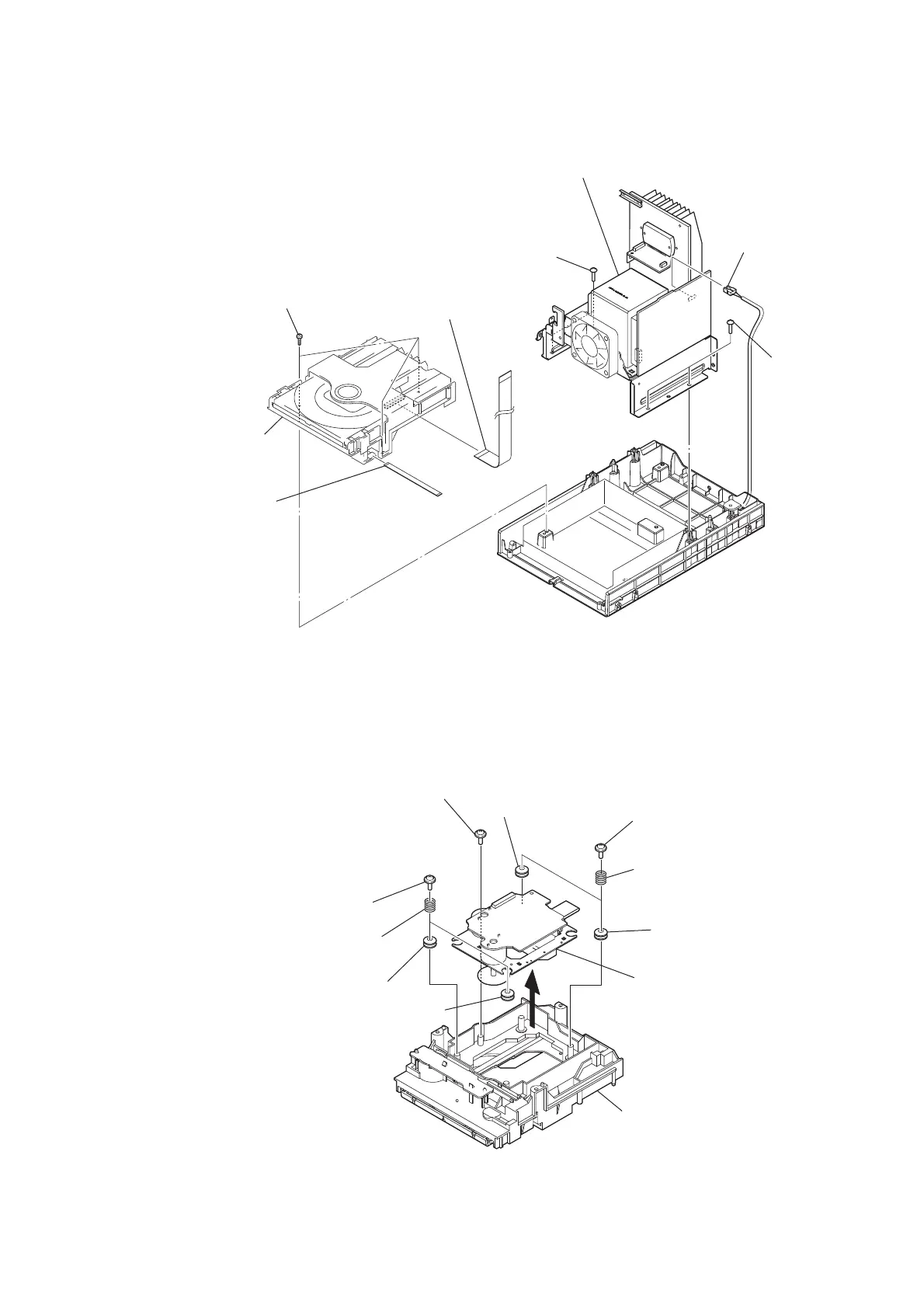

3-10. 1 CD MECHANISM BLOCK (US and Canadian models)
3-11. BASE UNIT (US and Canadian models)

three screws
(BVTP3
×
10)

flexible flat cable
(21 core) (CN201)

flexible flat cable (5 core)
(CN001)

1 CD mechanism block

two screws
(BVTP4
×
12)

PT block

two screws
(BVTP4
×
12)

connector (power cord)
(CN053)
 insulator
 insulator
 base unit
 insulator
 insulator
 two springs
(insulator)
 two floating screws
 two floating screws
 floating screw

loading (BK) assy
– Bottom view –
 two springs (insulator)
