Sony HCD-EC98P - Base Unit (Australian Model); CD Mechanism Block (Australian Model)

HCD-EC98P
14

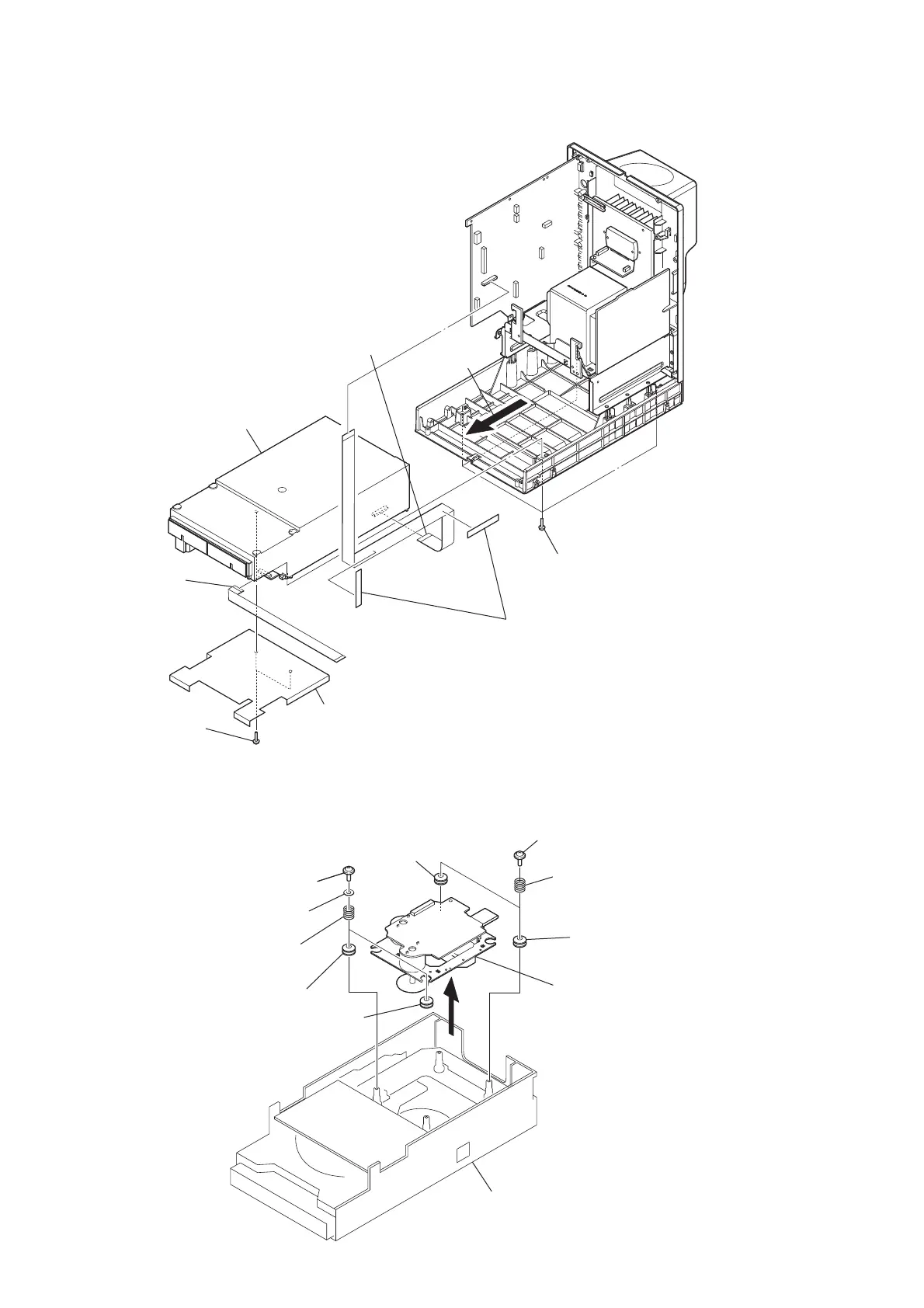

3-8. 3 CD MECHANISM BLOCK (Australian model)
3-9. BASE UNIT (Australian model)

four screws
(BVTP3
×
10)

two tapes

flexible flat cable
(21 core)
(MAIN board: CN608/
CD board: CN201)

flexible flat cable
(13 core)

3 CD mechanism block


cover (DLM3)

two screws (BVWH)
Note: When installing the CD mechanism section,
install two tapes for prevention of noise.
 insulator
 insulator
 base unit
 insulator
 insulator
 two springs
(insulator)
 two screws (PTPWHM2.6)
 two screws (PTPWHM2.6)

– Bottom view –
 two springs (insulator)
 two polyethylene washers
CD mechanical (DLM3A)
