HCD-EC98P
4

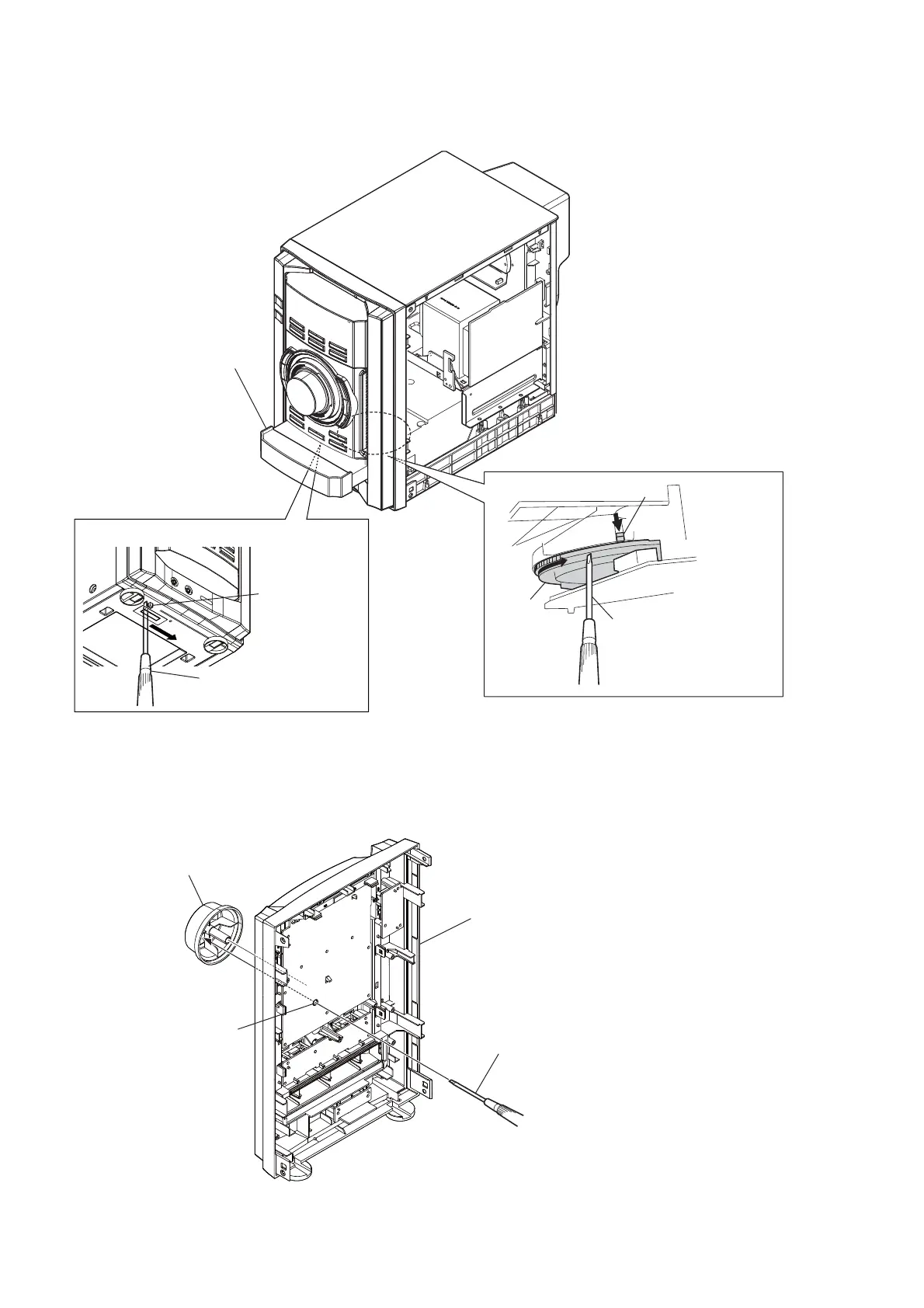

HOW TO REMOVE THE KNOB (VOL)
HOW TO OPEN THE TRA
Y
WHEN POWER SWITCH TURN OFF
T
urn a gear by a driver
till a lever falls down
to the position of the figure.
lever
gear
(Australian)
(US, Canadian)
Pull the tray by the hand.
Slide the boss by a driver
.
boss
knob
(VOL)
hole
Push the knob (VOL) by the flat head driver
.
front panel block
(back view)
3
5
Table of Contents
Default Chapter
1
Specifications
1
1 Servicing Notes
3
Table of Contents
3
2 General
6
Basic Operations
8
3 Disassembly
10
Disassembly Flow
10
Panel (Top)
11
Side Panel (L)/(R)
11
Front Panel Block (Australian Model)
12
MAIN Board
12
Back Panel Block
13
Front Panel Block (US and Canadian Models)
13
Base Unit (Australian Model)
14
CD Mechanism Block (Australian Model)
14
Base Unit (US and Canadian Models)
15
CD Mechanism Block (US and Canadian Models)
15
Belt (Australian Model)
16
Belt (US and Canadian Models)
16
OP Base Assy (KSM-213D)
17
4 Test Mode
18
5 Electrical Adjustments
22
Block Diagram - CD SERVO, TUNER Section
25
6 Diagrams
25
Block Diagram - MAIN Section
26
Printed Wiring Board - CD Board
28
Schematic Diagram - CD Board
29
Printed Wiring Boards - MAIN Section
30
Schematic Diagram - MAIN Section (1/3)
31
Schematic Diagram - MAIN Section (2/3)
32
Schematic Diagram - MAIN Section (3/3)
33
Printed Wiring Board - HI AMP Board
34
Schematic Diagram - HI AMP Board
34
Printed Wiring Board - LOW AMP Board
35
Schematic Diagram - LOW AMP Board
35
Printed Wiring Board - PANEL Board
36
Schematic Diagram - PANEL Board
37
Printed Wiring Boards - KEY Section
38
Schematic Diagram - KEY Section
38
Printed Wiring Board - PT Board
39
Schematic Diagram - PT Board
39
MOTOR Board (US and Canadian Models)
40
Printed Wiring Board - MOTOR Board (US and Canadian Models)
40
Schematic Diagram MOTOR Board (US and Canadian Models)
40
7 Exploded Views
47
Panel Section
47
Front Panel Section
48
Chassis Section
49
Main Section
50
CD Mechanism Section (Australian Model) (CDM88A-K6BD90-WOD)
51
CD Mechanism Section (US and Canadian Models) (CDM77B-K6BD90-WOD)
52
8 Electrical Parts List
53
