HCD-EH15
7

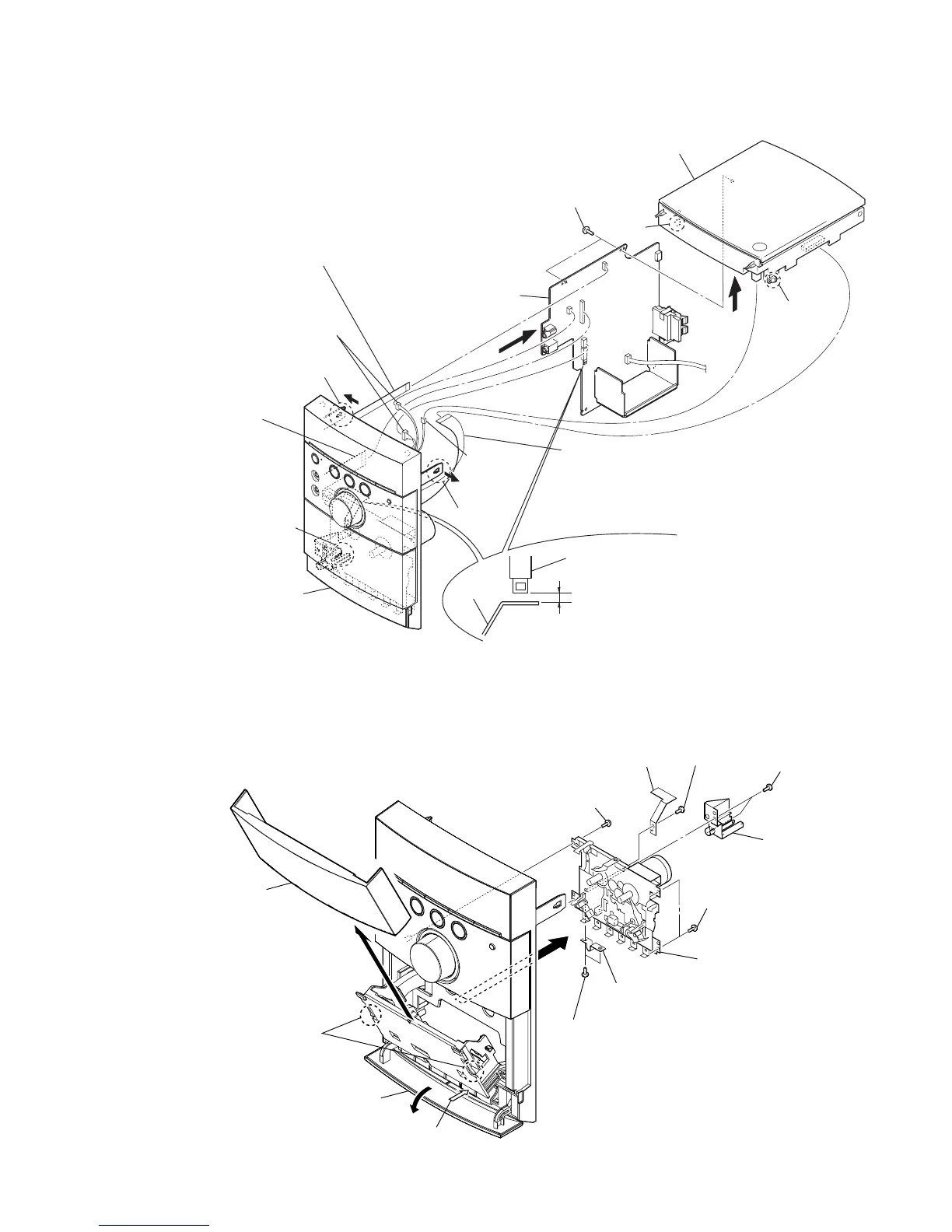

3-3. FRONT CABINET BLOCK, TOP CABINET BLOCK, MAIN BOARD
3-4. MF-EH10 (TAPE MECHANISM DECK), CASETTE LID
slide switch (REC/PB) (SW501)
REC lever
2.3 ± 0.4 mm
two screws
(BVTP2.6)
flexible flat cable (5 core) (FFC001)
(except UK, Russian models),
flexible flat cable (7 core) (FFC001)
(UK, Russian models)
(CN106)
flexible flat cable (17 core)
(FFC002) (CN105)
flexible flat cable (FFC003)
(CN201)
connector
(SW750)
two connectors
(CNP501, CNP502)
claw
Note: Adjust so that the space of slide switch (REC/PB) (SW501)
REC lever becames 2.3 ± 0.4 mm
.
claw
claw
claw
R
top cabinet block
RB
MAIN board
front cabinet block
claw
two screws
(BVTP2.6)
screw
lever (REC)
RE
cassette lid
two screws
R
cable holder
RT
two claws
RB
MF-EH10
(tape mechanism deck)
PWB holder
two screws
(BVTP2.6)
Open the button cover (C).
Push the eject button.
screw
(BVTP2.6)
Note: When removing cassette lid,
it's possible to remove cassette
lid by the order of RTRE.
To Next Page
