Sony HCD-EP40 - Tape Mechanism Deck (TCM125-2); Cassette Lid

HCD-EP30/EP40
10

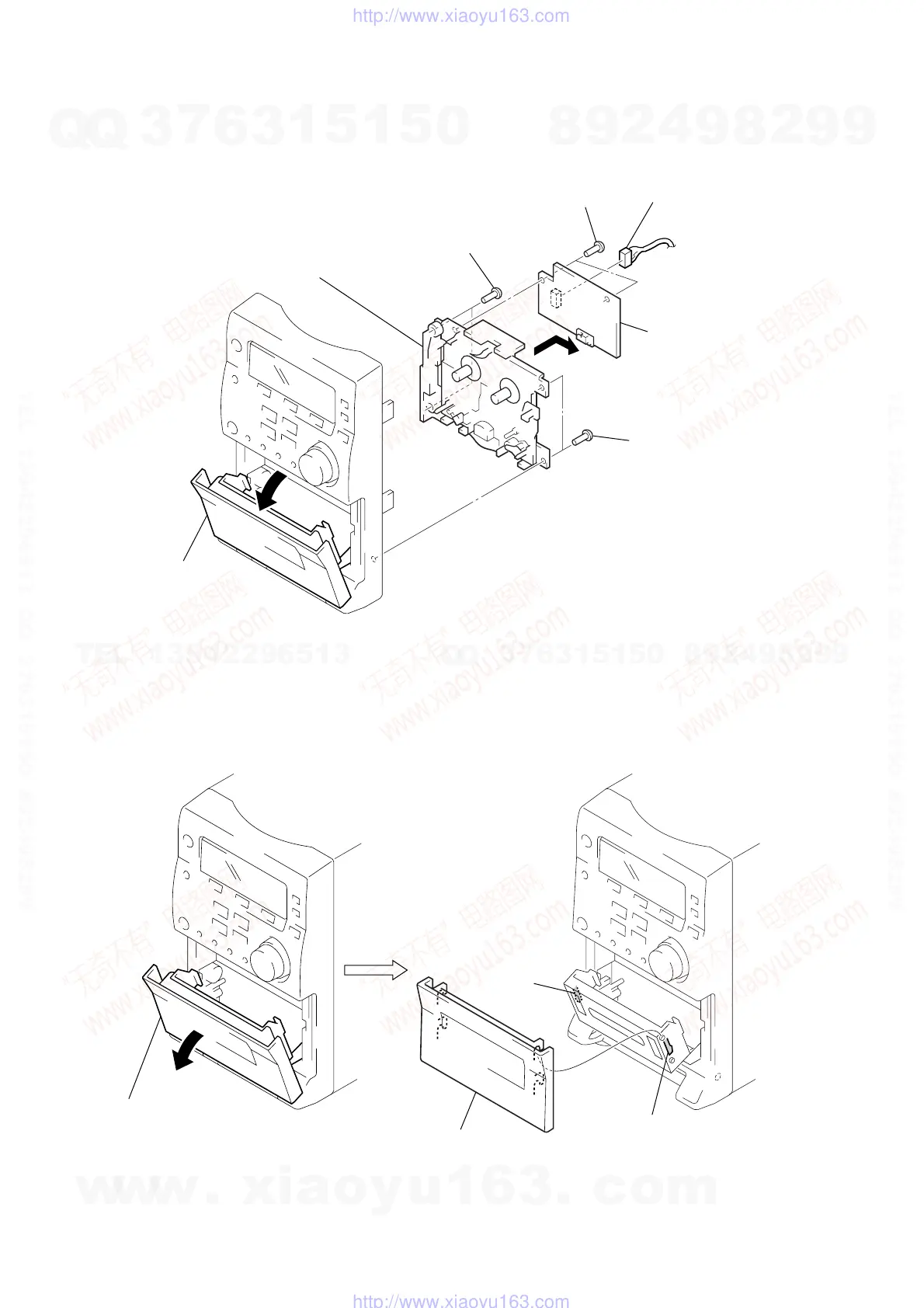

3-6. TAPE MECHANISM DECK (TCM125-2)
3-7. CASSETTE LID
4 cassette board
3
1 connector
(CN701)
2 two screws
(BTP2.6
× 6)
6 two screws
(BVTP3
× 10)
6 two screws
(BVTP3
× 10)
7 tape mechanism deck
(TCM125-2)
5 Open the cassette lid.
1 Open the cassette lid.
3 cassette lid
2 claw
2 claw
