Sony HCD-EP40 - Front Panel Section; MAIN Board; Hcd-Ep30;Ep40 Qq

HCD-EP30/EP40
8

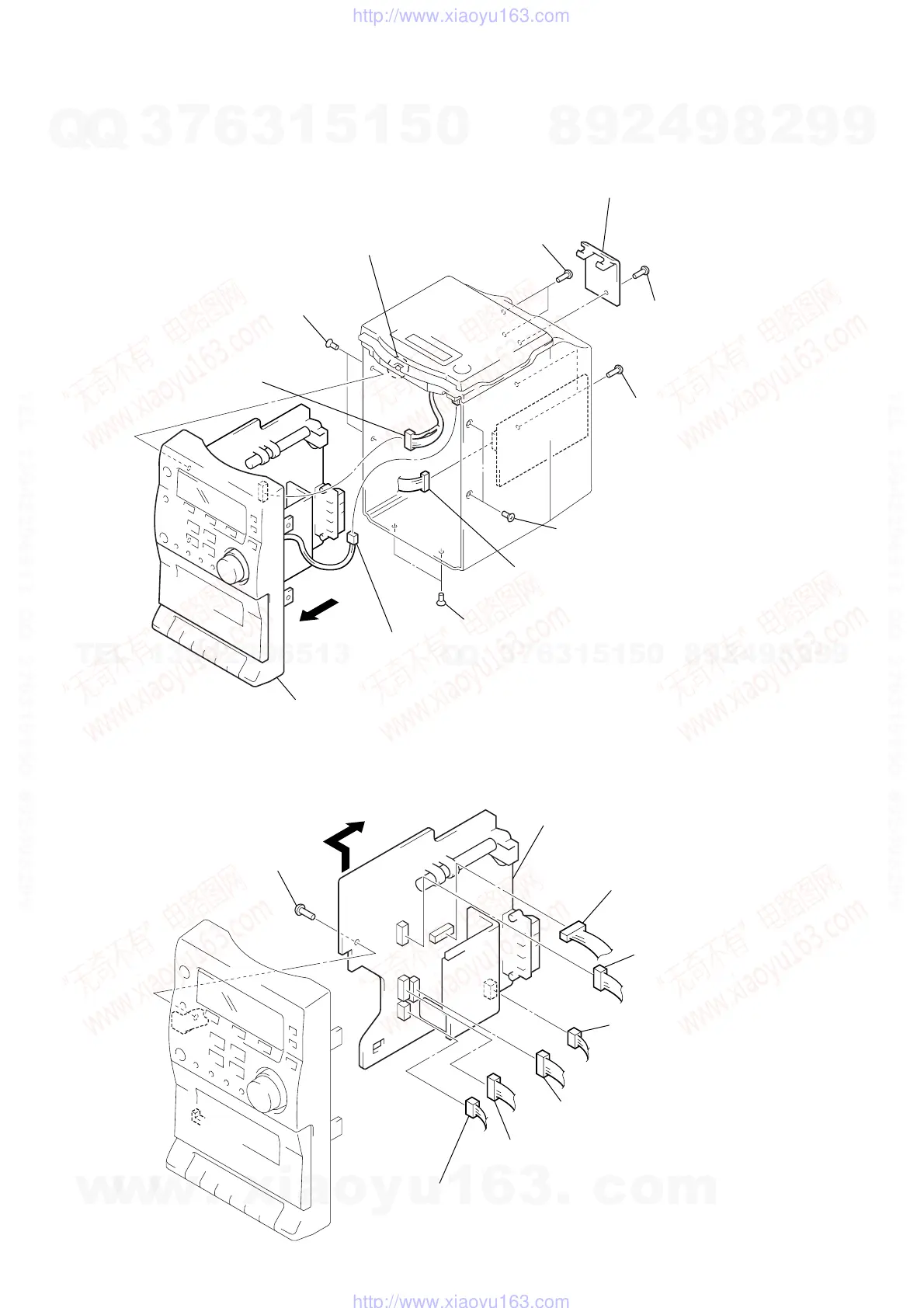

3-3. MAIN BOARD
Note: Follow the disassembly procedure in the numerical order given.
3-2. FRONT PANEL SECTION
8 connector
(CN203)
5 two screws
(+K3
× 5)
3 two screws
(BTP2.6
× 10)
1 screw
(BVTP3
× 10)
4 two screws
(BVTP3
× 10
)
5 two screws
(+K3
× 5)
5 two screws
(+K3
× 5)
9 connector
(CN402)
0 connector
(SW600)
qa front panel section
7
2 antenna cover cabinet
6 claw
6 connector
(CN202)
5 connector
(CN201)
4 connector
(CN302)
3 connector
(CN301)
2 connecto
r
(CN101)
1 connector
(CN204)
9 MAIN board
7 screw
(+BTP2.6
× 8)
8
