32
HCD-FX200/FX205
SECTION 6
EXPLODED VIEWS
1 4-171-957-01 KNOB (VOL)
2 3-077-331-21 +BV3 (3-CR)
3 3-087-053-01 +BVTP2.6 (3CR)
4 4-171-952-21 PANEL (REAR) (EXCEPT E2, E51, EA)
4 4-171-952-51 PANEL (REAR) (E2, E51, EA)
5 3-198-753-11 FOOT (FELT)
6 4-191-085-01 SHEET, COPPER (AEP, RU, KR)
7 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

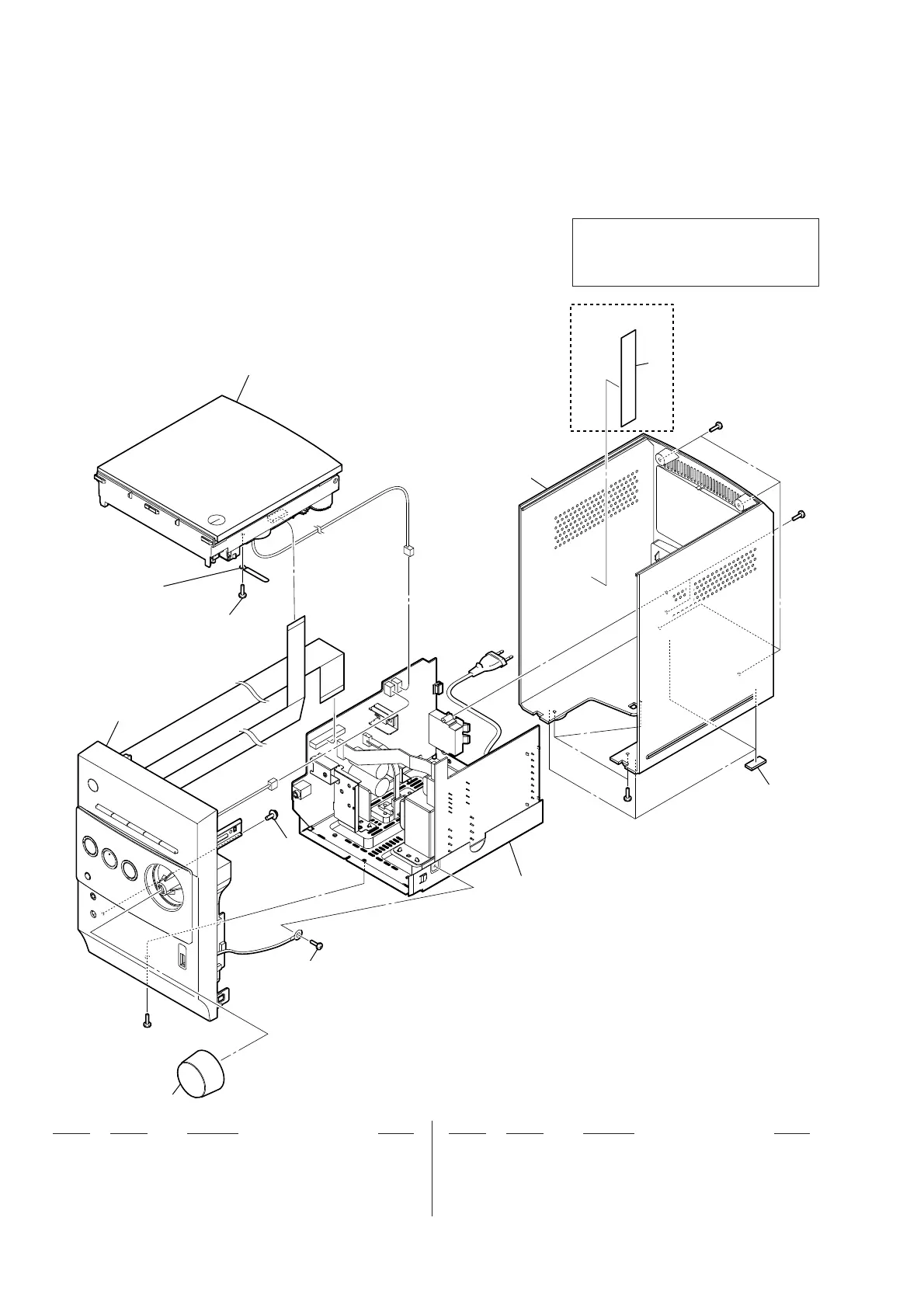

6-1. OVERALL SECTION
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
AUS : Australian model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
(AEP, RU, KR)
6
4
#1
#2
#2
5
not supplied
1
2
7
3
top panel section
front panel section
#1
chassis section
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
EA : Saudi Arabia model
KR : Korean model
RU : Russian model
SP : Singapore model
TH : Thai model
TW : Taiwan model
Ver. 1.1
