Sony HCD-FX205 - Disassembly; Rear Panel Block Disassembly

HCD-FX200/FX205
5
SECTION 2
DISASSEMBLY
2-3. TOP PANEL BLOCK
(Page 6)
2-2. PANEL (REAR) BLOCK
(Page 5)
2-7. BASE UNIT (BU-D1BD73U)
(Page 8)
2-4. FRONT PANEL BLOCK
(Page 6)
2-8. OPTICAL PICK-UP BLOCK
(DA11MMVGP)
(Page 8)
2-5. KNOB (VOL)
(Page 7)
2-6. MAIN BOARD
(Page 7)
SET
3
2
two screws
(BVTP3
u
10)
4
panel (rear) block
1
three screws
(BVTP3
u
8)
2
four screws
(BVTP3
u
10)
• This set can be disassembled in the order shown below.

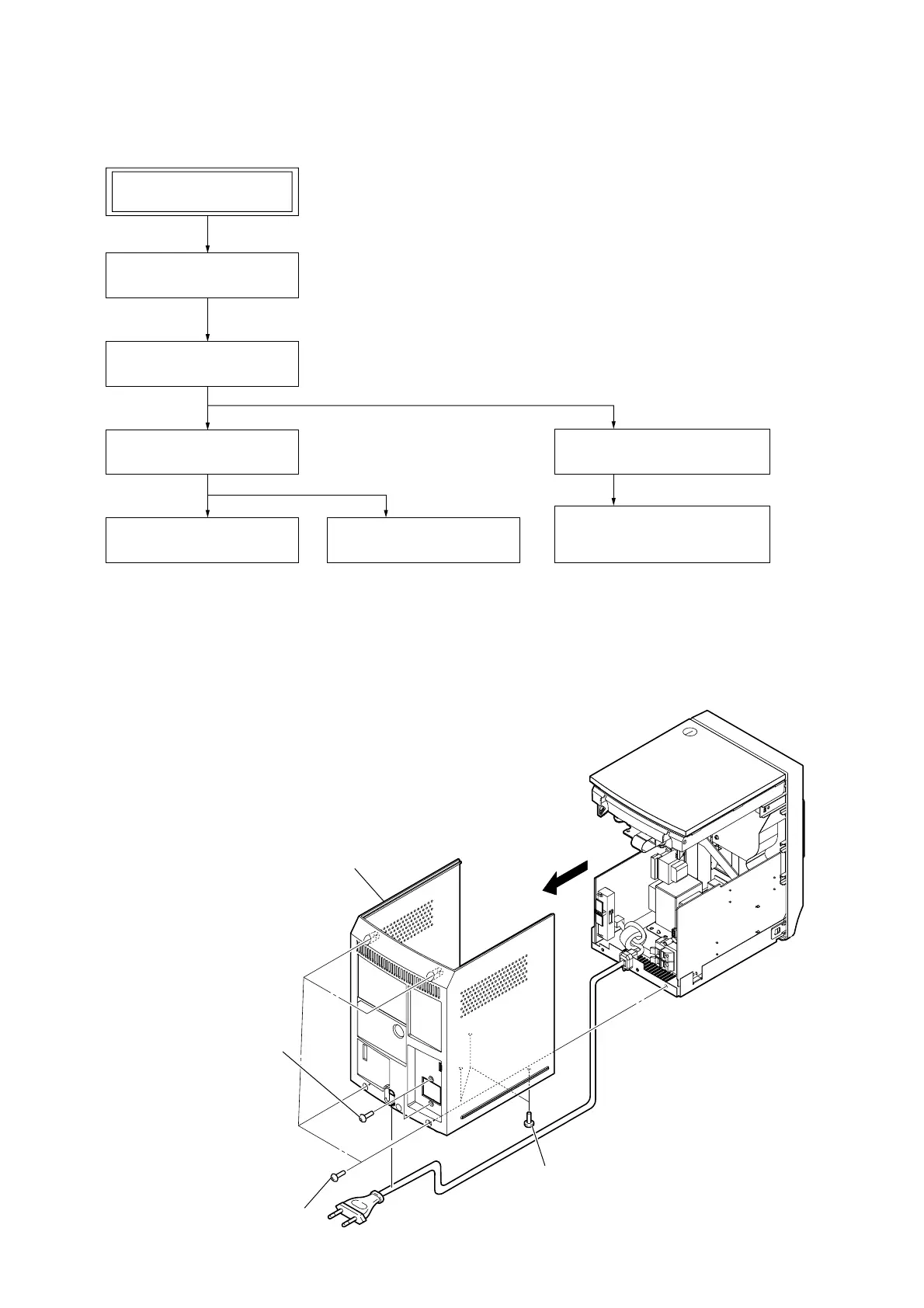

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. PANEL (REAR) BLOCK
Note: This illustration sees the set from rear side.
