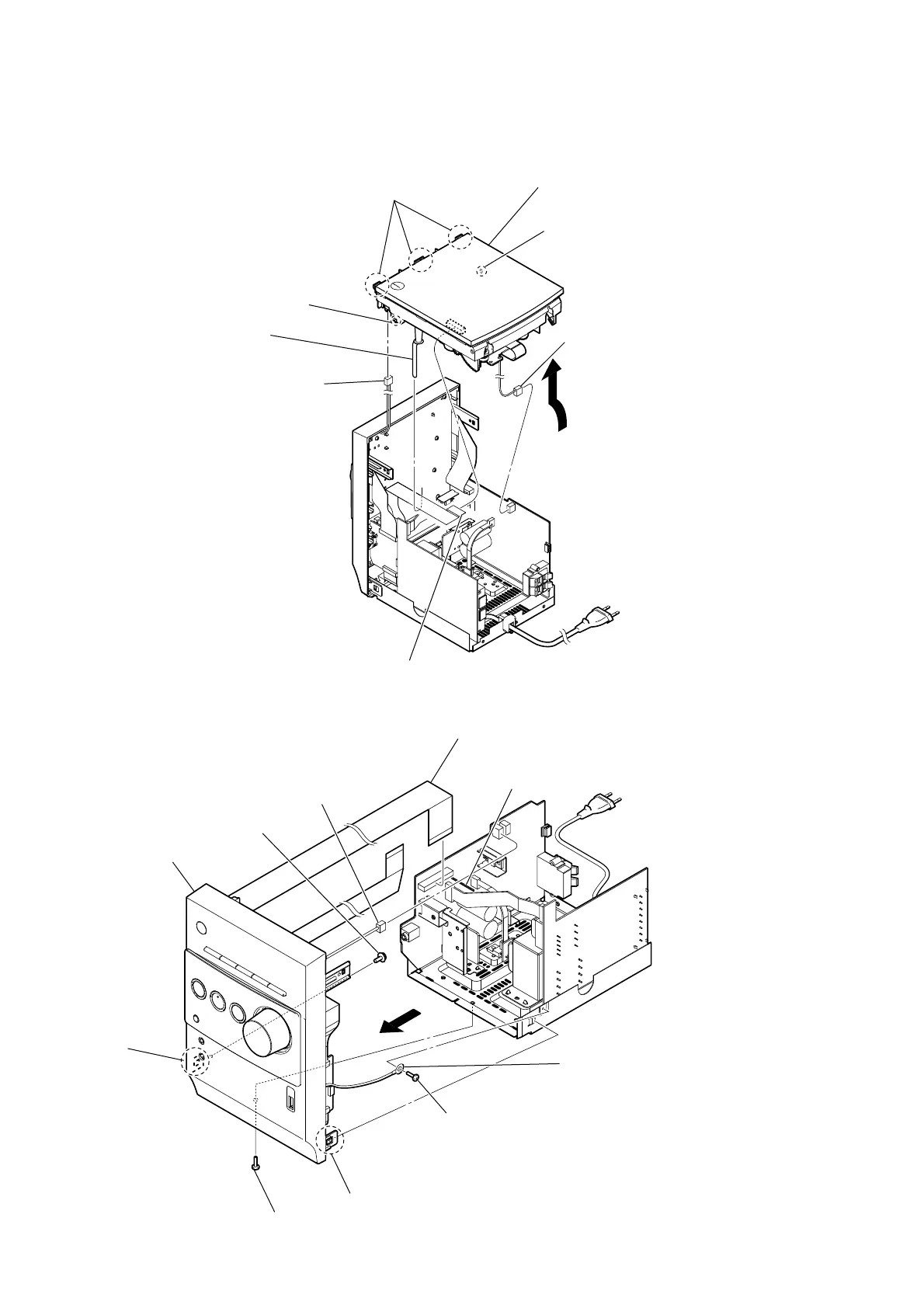

2-3. TOP PANEL BLOCK
Note: This illustration sees the set from rear side.
1
connector
(SW880)
4
connector
(CN914)
8
top panel block
5
claw
2
Extend the coating clip.
5
claw
3
flexible flat cable (19 core) (CN402)
7
three claws
6
2-4. FRONT PANEL BLOCK
0
front panel block
5
lead wire (from USB board)
8
claw
4
screw (BV3)
6
floating screw (PTPWH M2.6)
3
flexible flat cable (21 core) (CN912) (except AEP)
flexible flat cable (23 core) (CN911) (AEP)
1
connector (CN913)
2
Lift up the lead pin.
9
8
claw
7
screw
(BVTP3
u
8)
