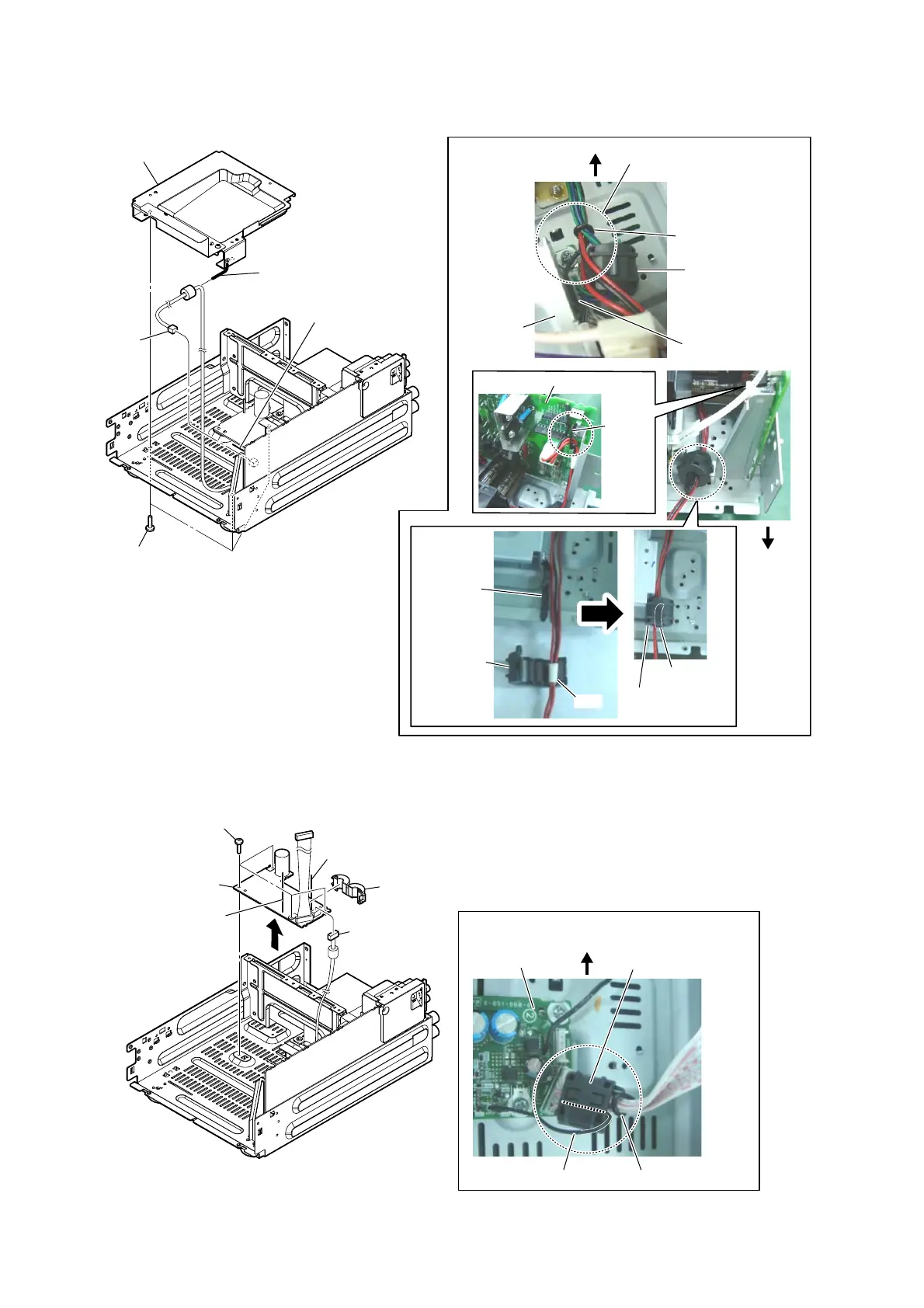

2-17. HOLDER (CD) BLOCK
2-18. DCDC BOARD
1 Lift up the lead pin.
3 Remove the coating clip from
the clamp filter (ferrite core).
2 connector
(CN301)
4 three screws
(BVTT4 u 8)
5 holder (CD) block
:LUHVHWWLQJ
clamp filter
(ferrite core)
holder (CD)
Note:
Confirm the wire does not
hit the edge of holder (CD).
lead pin
DCDC board
rear side
coating clip
coating clip
clamp filter
(ferrite core)
clamp filter
(ferrite core)
lead pin
AMP board
front side
tape
1 Lift up the lead pin.
6 Lift up the lead pin.
lead pinlead pin
5 clamp filter (ferrite core)
clamp filter (ferrite core)
7 DCDC board
DCDC board
2 connector
(CN952)
3 four screws
(BV3)
4
:LUHVHWWLQJ
rear side
