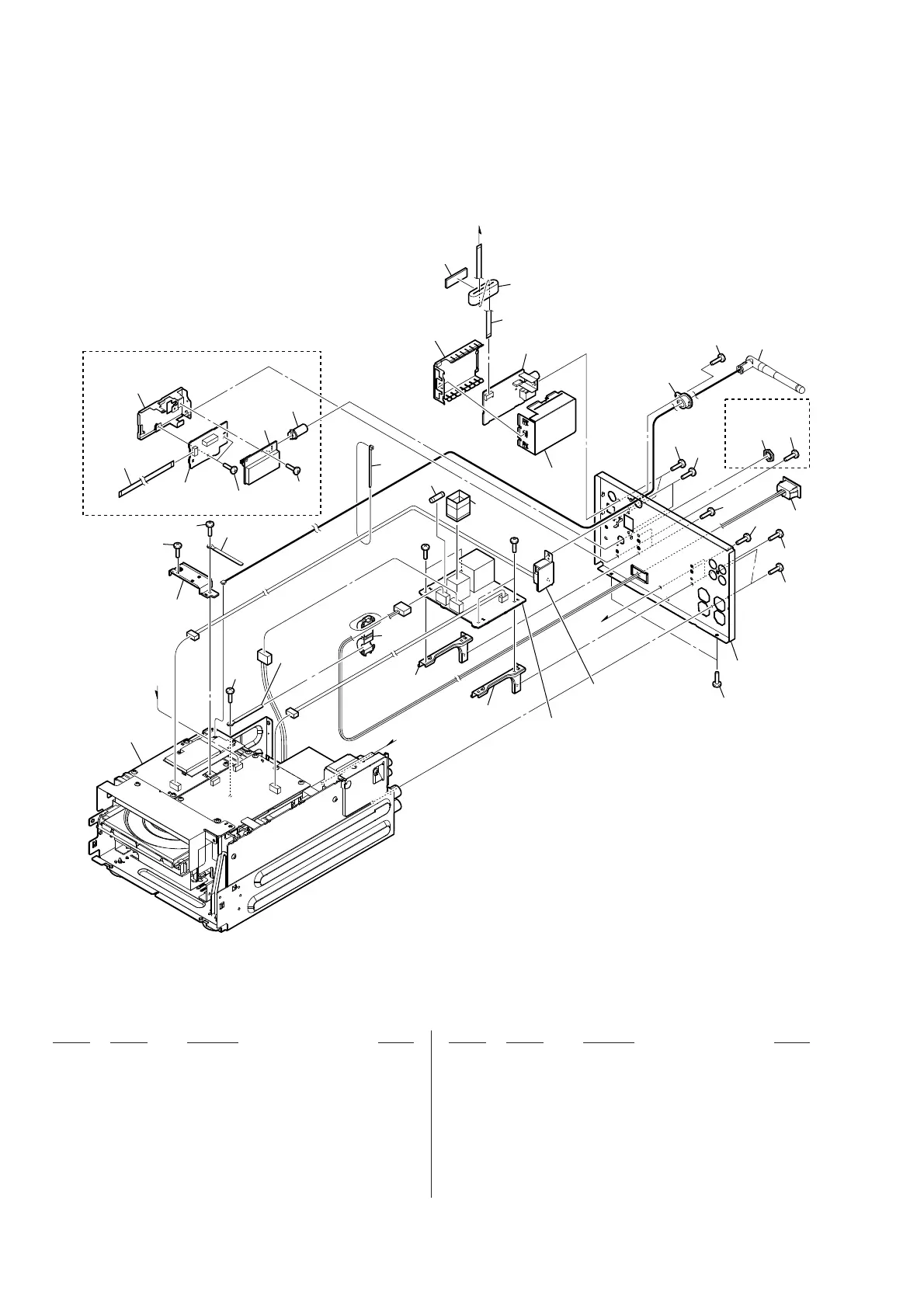

6-3. REAR PANEL SECTION
101 1-481-530-21 FILTER, CLAMP (FERRITE CORE)
102 3-077-331-21 +BV3 (3-CR)
103 3-087-053-01 +BVTP2.6 (3CR)
104 1-839-670-21 CABLE, FLEXIBLE FLAT (8 CORE) (G2BNiP)
105 A-1820-895-A TUNER BOARD, COMPLETE
106 1-839-671-21 CABLE, FLEXIBLE FLAT (9 CORE)
107 1-457-413-11 CORE, FERRITE
108 3-704-515-32 SCREW (BV/RING)
109 2-650-108-01 NUT (G2BNiP)
110 3-655-653-11 BAND (TAITON), BINDING
111 4-297-611-02 SHEET, SUB PT
0 AC1 1-697-045-11 AC INLET (2P)
ANT1 1-754-804-11 ANTENNA, 2.4 GHZ
CN01 1-820-441-11 CONNECTOR, COAXIAL (F TYPE) (G2BNiP)
DAB1 1-489-807-11 MODULE (DAB TUNER) (G2BNiP)
0 F4401 1-532-504-33 FUSE (T 4 AL/250 V)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
102
110
103
103
103
103
104
105
106
107
108
108
108
108
108
108
109
111
not supplied
(SUB-PT board)
not supplied
(DAB board)
not supplied
DAB1
CN01
not supplied
not supplied
not
supplied
not supplied
(LAN board)
not supplied
not supplied
ANT1
A
#1
#1
F4401
not supplied
AC1
MAIN board section
not supplied
not supplied
not supplied
not supplied
A
108
108
108
B
B
(G2BNiP)
(G2BNiP)
