Sony HCD-G2BNiP - MAIN Board Section

65
HCD-G2BNiP/G2NiP

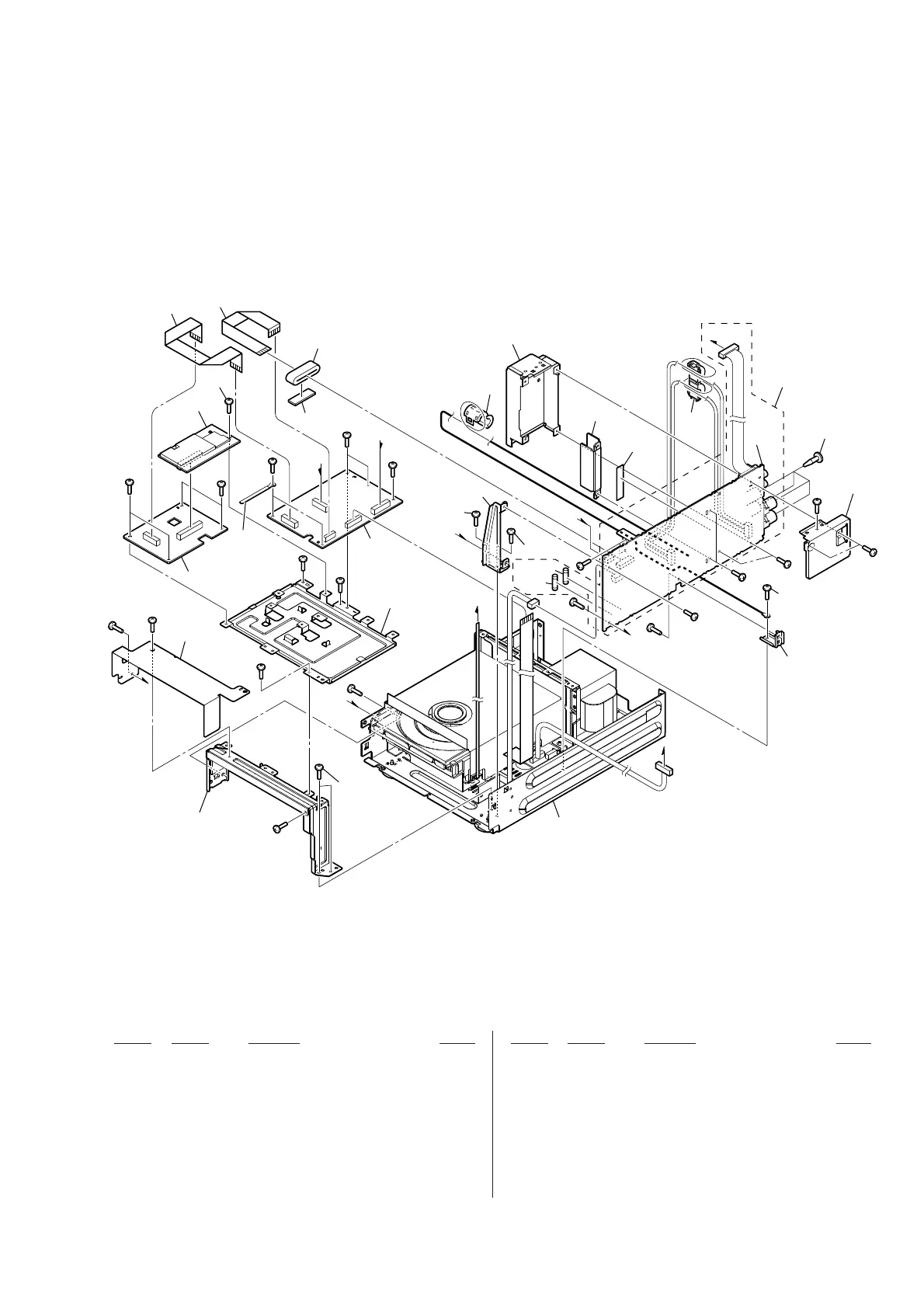

6-4. MAIN BOARD SECTION
151 3-077-331-21 +BV3 (3-CR)
152 A-1823-064-A MAIN BOARD, COMPLETE (G2NiP)
152 A-1823-068-A MAIN BOARD, COMPLETE (G2BNiP: AEP, UK)
152 A-1847-083-A MAIN BOARD, COMPLETE (G2BNiP: Australian)
153 1-839-672-21 CABLE, FLEXIBLE FLAT (15 CORE)
154 1-457-413-11 CORE, FERRITE
155 1-500-082-11 CLAMP, SLEEVE FERRITE
156 1-481-530-21 FILTER, CLAMP (FERRITE CORE)
157 4-275-263-01 SHEET (RADIATION)
158 A-1820-948-A AMP BOARD, COMPLETE
159 A-1847-087-A NET BOARD, COMPLETE
160 3-087-053-01 +BVTP2.6 (3CR)
161 1-839-674-21 CABLE, FLEXIBLE FLAT (21 CORE)
0 F303 1-532-504-33 FUSE (T 4 AL/250 V)
0 F304 1-532-504-33 FUSE (T 4 AL/250 V)
MOD1 A-1861-411-A MODULE (SERVICE) (WIRELESS LAN MODULE)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151
152
160
153
154
159
161
not supplied
not supplied
AMP
board
not
supplied
not
supplied
not
supplied
not supplied
not
supplied
not supplied
MOD1
not supplied
not supplied
not supplied
chassis section
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
151
151
151
158
156
155
157
C
C
D
E
E
F
D
F
F303
F304
#1
#1
#1
#1
G
G
Ver. 1.1
