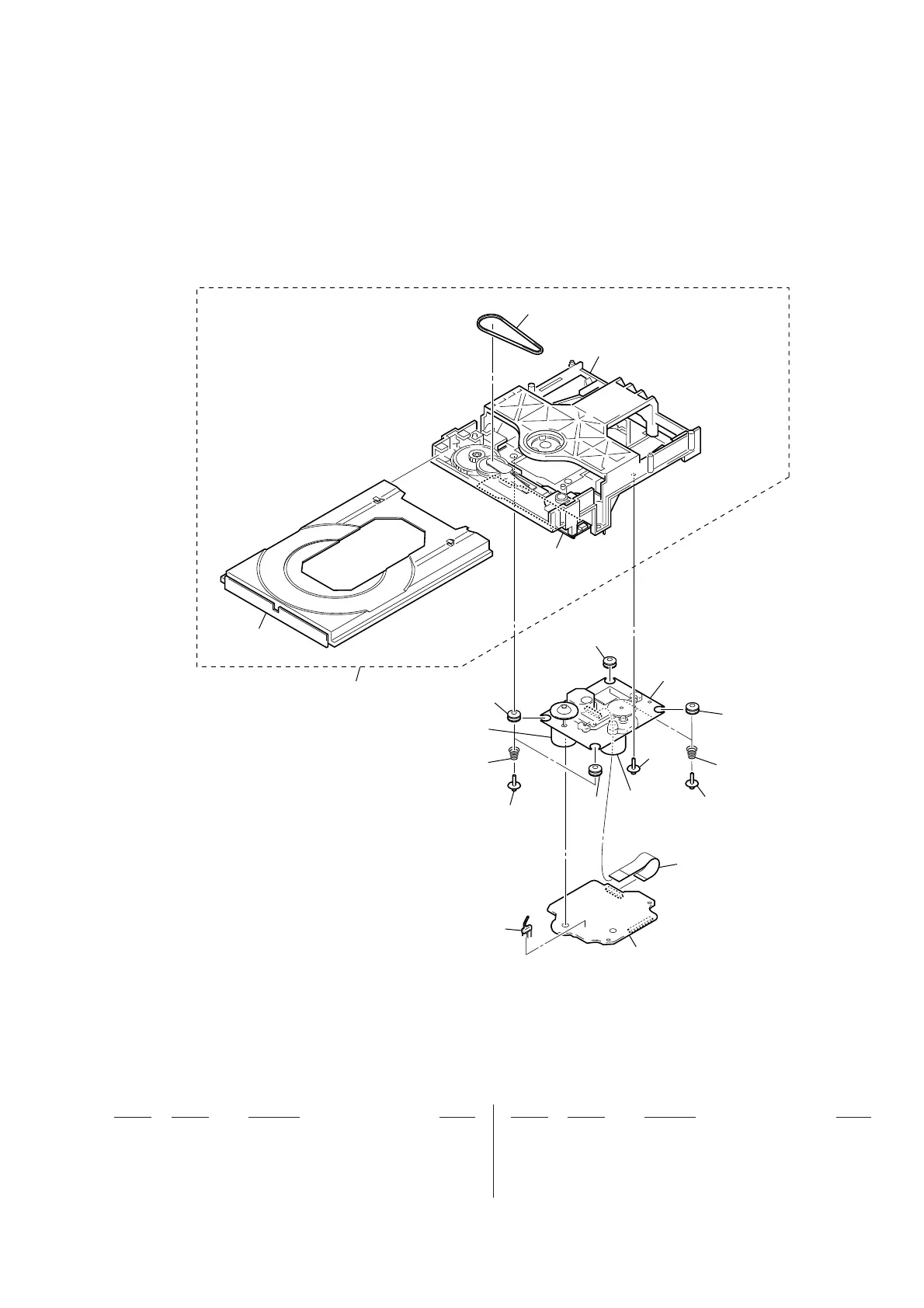

6-6. CD MECHANISM DECK SECTION
(CDM77B-K6BD94DC)
251 A-1242-967-B LOADING (BK) ASSY (Including MOTOR board)
252 3-080-478-01 BELT
253 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
254 4-156-130-01 SPRING, CONE
255 4-229-005-41 INSULATOR
0 256 A-4735-357-A BASE ASSY, OP (KSM-213D)
(Including sled motor, spindle motor)
257 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
258 A-1857-582-A BD94DC BOARD, COMPLETE
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
(MOTOR board)
251
252
255
254
253
253
253
255
254
255
255
S201
sled motor
257
256
(including sled motor,
spindle motor)
spindle motor
258
