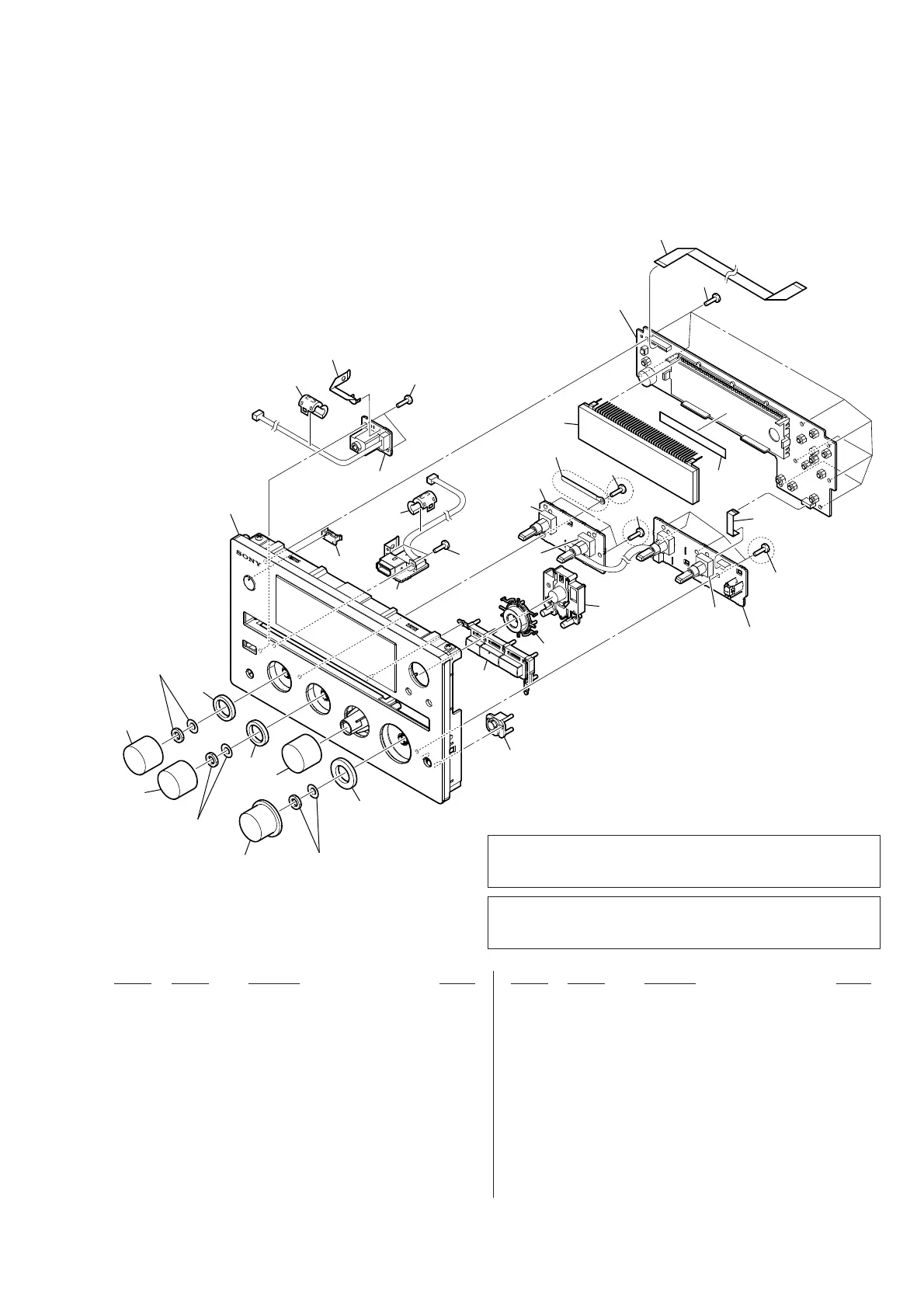

6-2. FRONT PANEL SECTION
51 X-2581-078-1 KNOB (VOLUME) ASSY
52 X-2581-077-1 KNOB (FUNCTION) ASSY
53 X-2582-944-1 PANEL (FRONT NW) ASSY (G2NiP)
53 X-2582-945-1 PANEL (FRONT NW) ASSY (G2BNiP: AEP, UK)
53 X-2582-946-1 PANEL (FRONT NW) ASSY (G2BNiP: Australian)
54 4-275-195-01 INDICATOR
55 4-275-196-01 WINDOW (IR)
56 4-275-190-01 BUTTON (EJECT) (Z, u, x)
57 A-1820-896-A USB BOARD, COMPLETE
58 3-087-053-01 +BVTP2.6 (3CR)
59 1-500-082-11 CLAMP, SLEEVE FERRITE
60 A-1820-897-A HP BOARD, COMPLETE
61 1-839-673-21 CABLE, FLEXIBLE FLAT (19 CORE)
62 1-839-489-21 CABLE, FLEXIBLE FLAT (7 CORE)
63 4-154-640-01 SHEET (FL HOLDER), ADHESIVE
64 4-300-584-01 CUSHION (KNOB VOLUME)
65 4-300-585-01 CUSHION (KNOB FUNCTION)
66 X-2583-274-1 BUTTON (TUNING NW) ASSY (F, f)
67 4-275-273-01 BUTTON (ENTER NW) (ENTER)
ND4102 1-811-488-11 INDICATOR TUBE, FLUORESCENT
S4301 1-418-725-51 ENCODER, ROTARY (12 TYPE) (VOLUME)
S4321 1-418-725-51 ENCODER, ROTARY (12 TYPE) (TONE TREBLE)
S4322 1-418-725-51 ENCODER, ROTARY (12 TYPE) (TONE BASS)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51
52
55
56
67
66
57
58
59
not supplied
ND4102
not supplied
(JOG2 board)
not supplied
(JOG1 board)
not supplied
(FL-NET board)
included in S4301
included in S4321
included in S4322
S4322
S4321
S4301
52
65
52
53
54
59
58
60
58
58
58
62
63
61
58
not supplied
65
64
Ver. 1.1
Note 1: When replacing the rotary encoder (Ref. No. S4301 (JOG1 board),
S4321 and S4322 (JOG2 baord)), replace the three parts at the
same time and delete the three cushions (Ref. No. 64 and 65).
Note 2: Screw surrounded with a dotted line circle may not be attached.
Coating clip surrounded with a dotted line circle may differ in the
illustration and the attachment position.
