HCD-G2BNiP/G2NiP
5

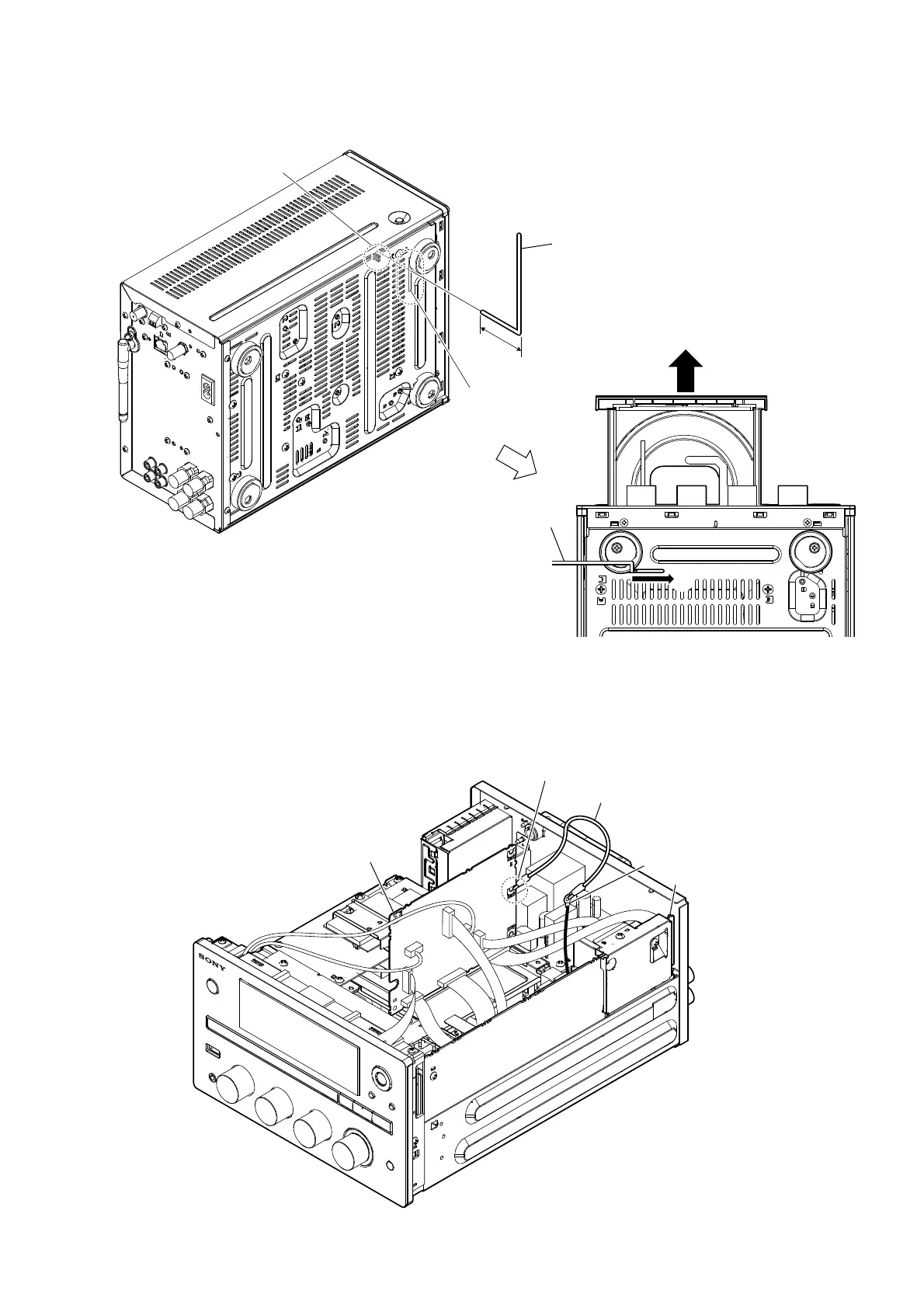

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
MAIN BOARD SERVICE POSITION
1 Insert the hard metal fittings of L character type 6 cm
or more in the hole of the chassis.
2 Push the lever in the direction
of the arrow A.
3
6 cm or more
– Rear bottom view –
hole
lever
– Bottom view –
A
MAIN board
AMP board
lug wire
alligator clips
Note:
Connect the alligator clips surely with this position.
To Next Page
