HCD-GB3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

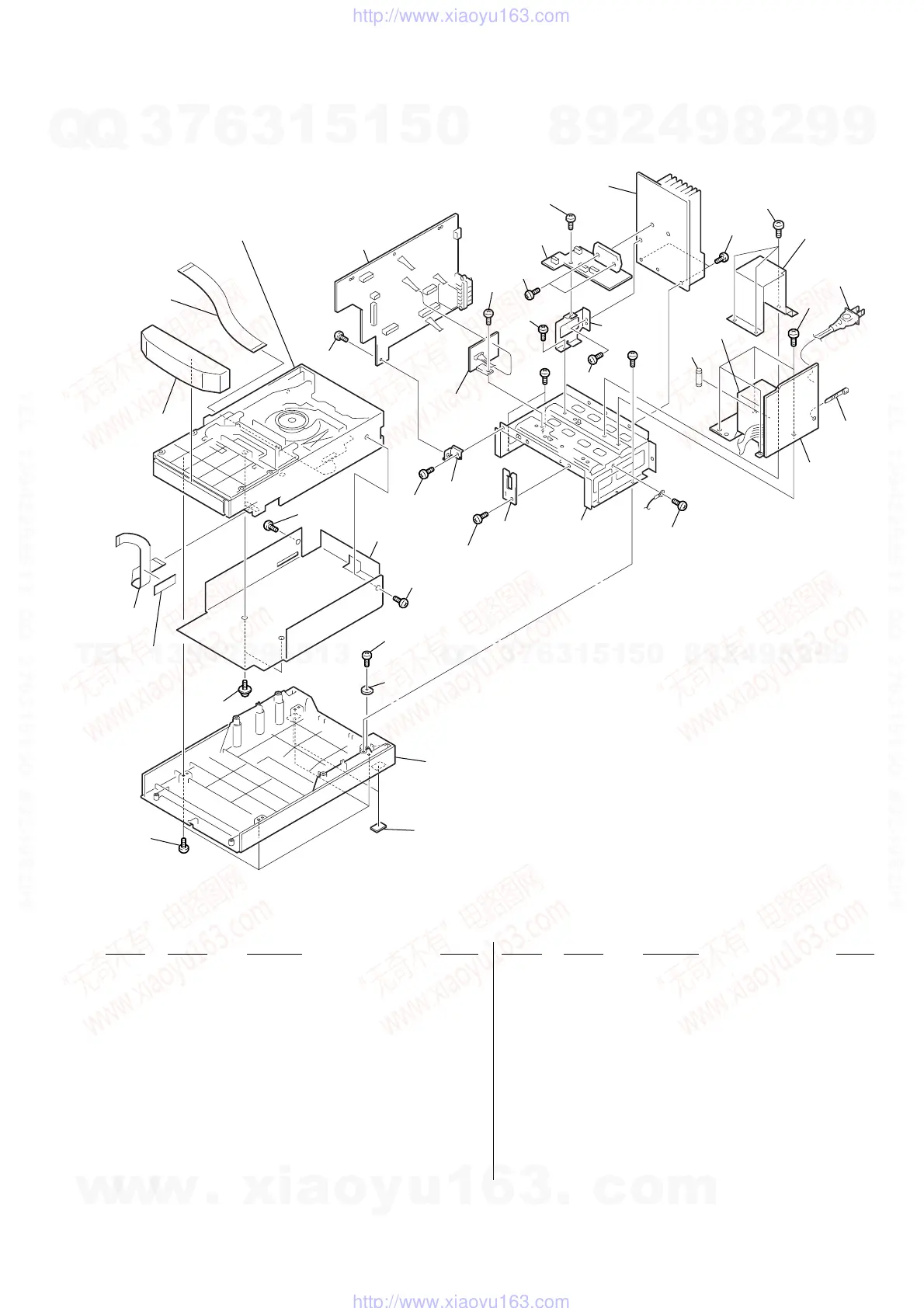

8-3. CHASSIS SECTION
101 2-649-153-41 CHASSIS (MAIN MOLD)
102 4-225-252-01 CUSHION (FOOT)
103 3-254-143-11 SCREW (B3), (+) BV TAPPING
104 3-229-336-11 SCREW, +BVWH TAPPING
105 2-633-134-01 SCREW (B2.6), (+) BV TAPPING
106 2-681-036-01 COVER (CD MECHA)
107 1-832-837-21 CABLE, FLEXIBLE FLAT (13 CORE)
108 X-2109-155-1 DOOR (CD) ASSY
109 1-831-612-21 CABLE, FLEXIBLE FLAT (23 CORE)
110 A-1177-468-A MAIN BOARD, COMPLETE
111 3-701-748-00 CLAMP
112 A-1177-469-A AMP BOARD, COMPLETE
113 3-905-609-31 SCREW (TRANSISTOR)
0114 1-831-370-11 CORD, POWER (E2)
0114 1-832-228-11 CORD, POWER (AR)
0114 1-832-377-11 CORD, POWER (MX)
115 A-1177-464-A POWER BOARD, COMPLETE (E2)
115 A-1177-466-A POWER BOARD, COMPLETE (MX)
115 A-1177-467-A POWER BOARD, COMPLETE (AR)
116 4-900-386-01 SCREW
0F051 1-532-237-00 FUSE (T3.15AL/250V)
0PT001 1-443-911-11 TRANSFORMER, POWER (E2, AR)
0PT001 1-443-995-21 TRANSFORMER, POWER (MX)
#2 7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
