Sony HCD-GRX9900 - Schematic Diagram - PANEL (1;3);CD SW Board

HCD-GRX9900/RXD9
– 55 –
– 56 –
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER (FM/AM)

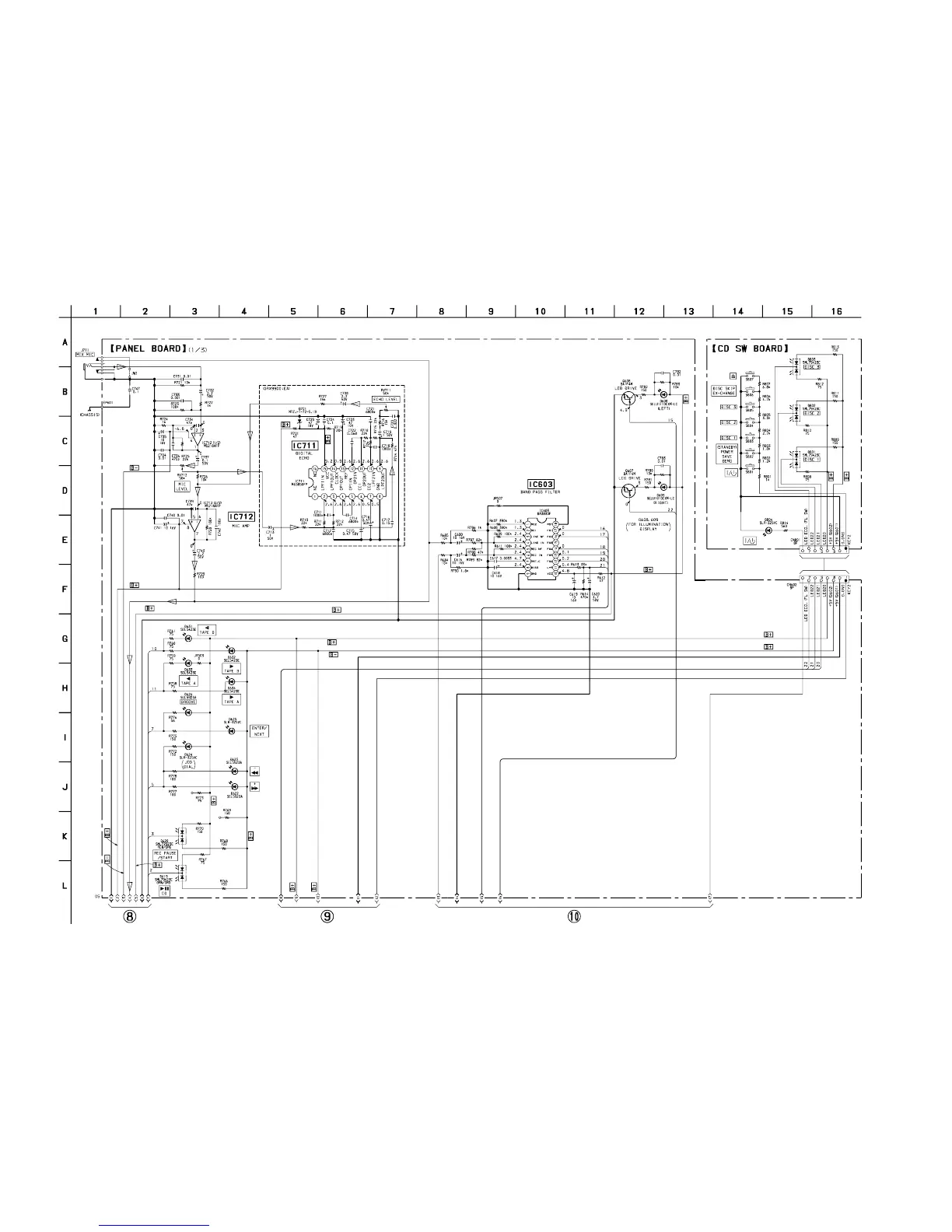

7-20. SCHEMATIC DIAGRAM – PANEL (1/3)/CD SW Board– • See page 68 for IC Block Diagrams.
(Page 57)(Page 59)(Page 59)
