HCD-GRX9900/RXD9
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
– 61 –
– 62 –
• Semiconductor
Location
Ref. No. Location
D971 G-2
D972 G-1
D973 G-1
Q971 G-1

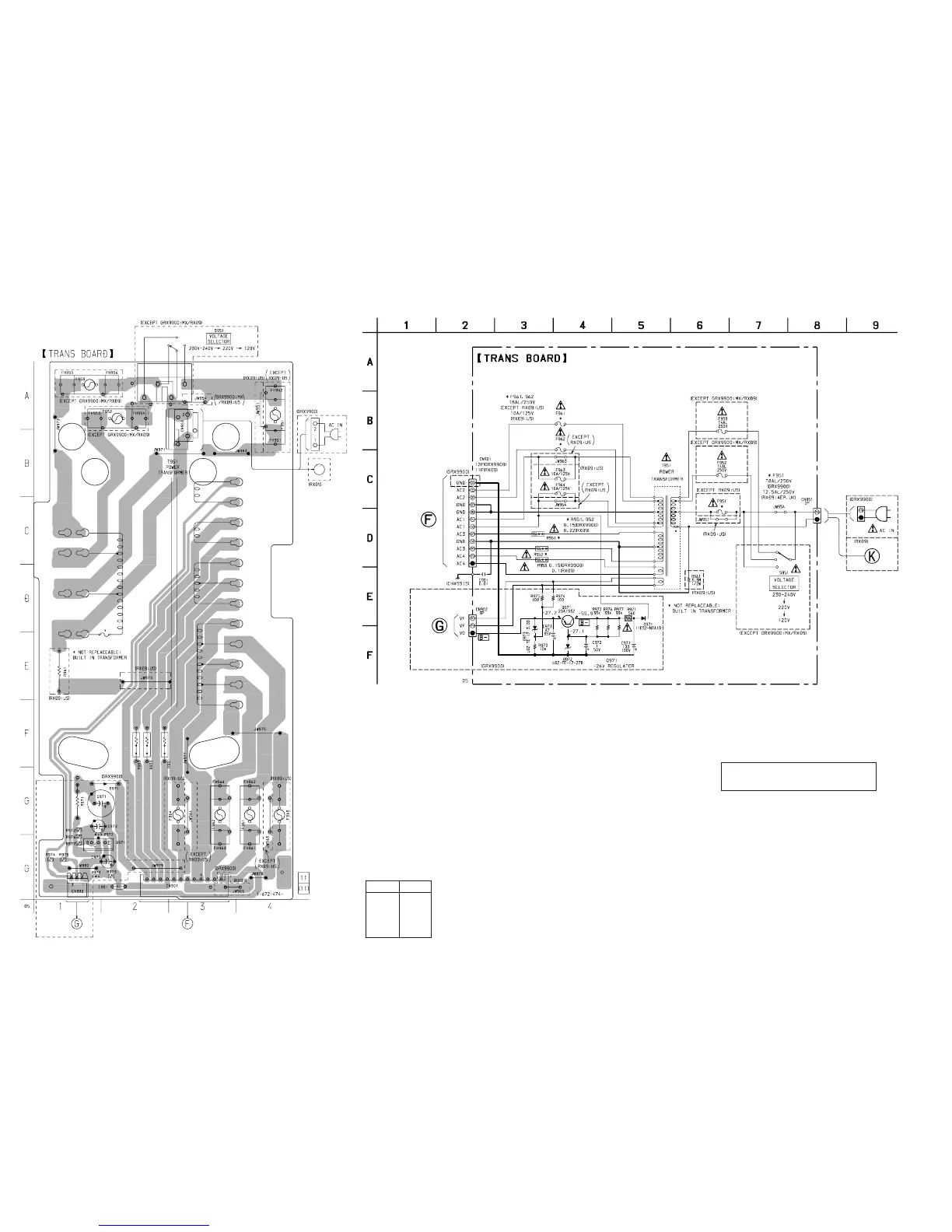

7-23. PRINTED WIRING BOARD – TRANS Board –
• See page 28 for Circuit Boards Location.
7-24. SCHEMATIC DIAGRAM – TRANS Board –
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : TUNER (FM/AM)
(Page 64)
(Page 63)
(Page 43)
(Page 43)
(Page 48)
(Page 50)
To Next Page
