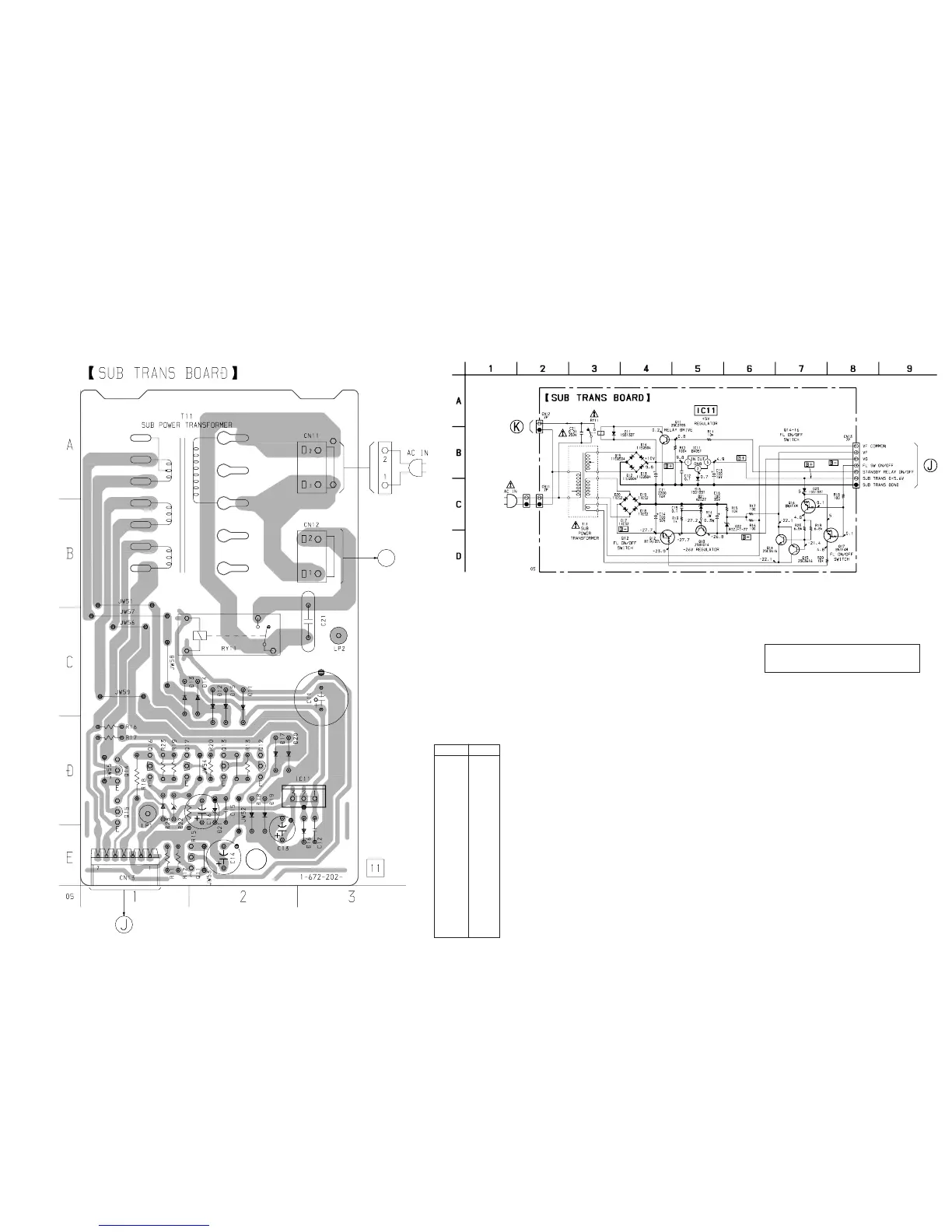

7-25. PRINTED WIRING BOARD – SUB TRANS Board (RXD9) –
• See page 28 for Circuit Boards Location.
7-26. SCHEMATIC DIAGRAM – SUB TRANS Board (RXD9) –
• Semiconductor
Location
Ref. No. Location
D11 C-2
D12 C-2
D13 C-1
D14 C-2
D15 C-2
D16 E-3
D17 D-2
D18 D-2
D19 D-2
D20 D-2
D21 D-2
D22 D-1
D23 D-1
IC11 D-3
Q11 E-2
Q12 D-2
Q13 D-2
Q14 D-1
Q15 D-1
Q16 D-1
Q17 D-1
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : TUNER (FM/AM)
