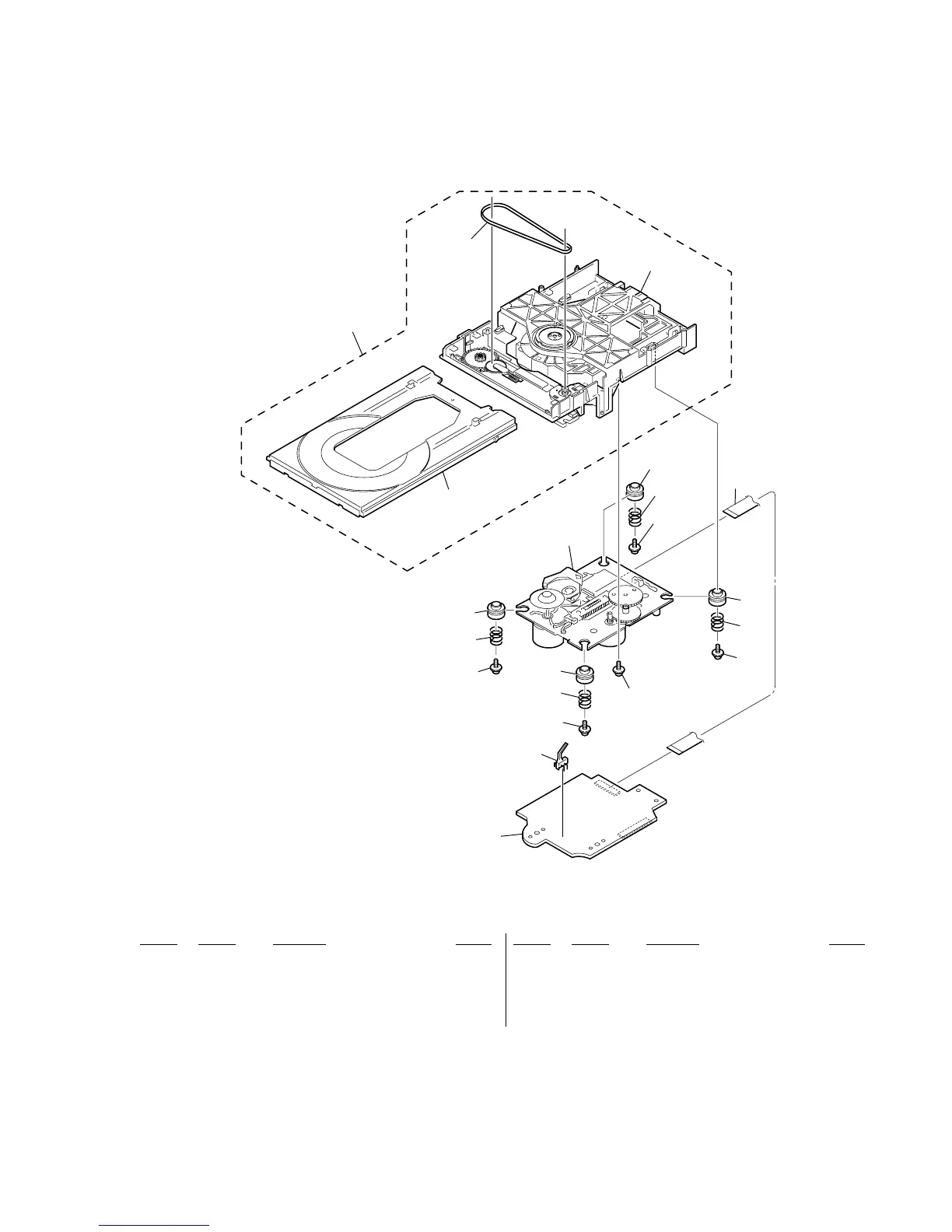

7-4. CD MECHANISM SECTION
207
208
206
201
204
203
S201
205
204
203
202
202
202
204
203
202
204
203
202
not
supplied
not
supplied
201 A-1217-914-A BD90 BOARD, COMPLETE
202 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
203 4-227-045-41 SPRING (INSULATOR)
204 4-229-005-41 INSULATOR
0205 A-4735-357-A OPTICAL PICK-UP ASSY (KSM213DHAP/ZRP1)
206 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
207 A-1242-967-A LOADING (BK) ASSY
208 3-080-478-01 BELT
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
