HCD-GS10/GS30DAB

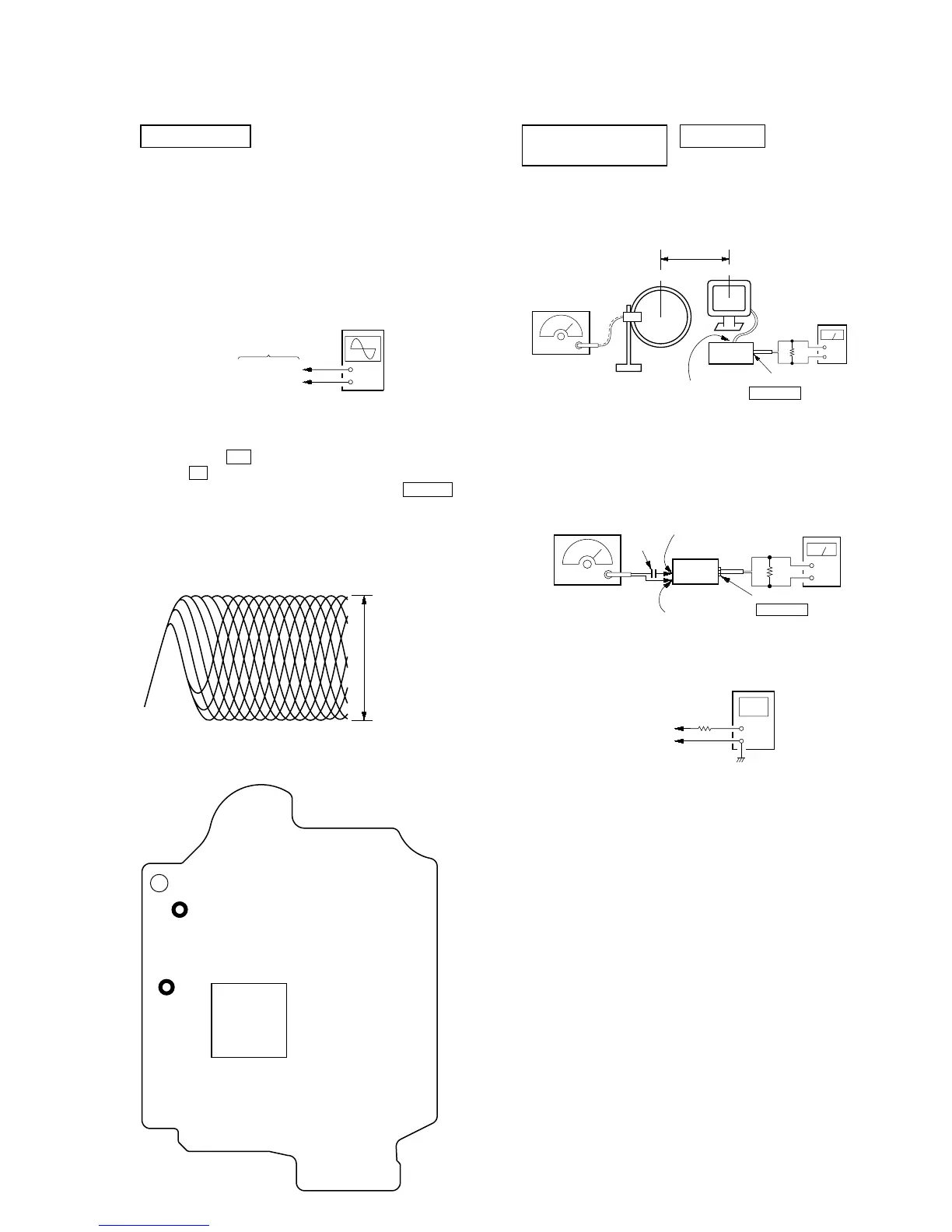

Checking Location:
+
–
BD90 board
TP (RFI)
TP (VC)
oscilloscope
(DC range)
Procedure :
1. Connect oscilloscope to TP (RFI) and TP (VC) on the BD90
board.
2. Press the I/1 button to turn the power ON, and press
the Z (CD) button to open the CD disc tray.
3. Set disc (YEDS-18) on the tray and press the CD u button
to playback.
4. Confirm that oscilloscope waveform is as shown in the figure
below. (eye pattern)
A good eye pattern means that the diamond shape (◊) in the
center of the waveform can be clearly distinguished.
VOLT/DIV: 200 mV
TIME/DIV: 500 ns
level:
1.2
±
0.3 Vp-p
TP
(VC)
TP
(RFI)
IC101
– BD90 Board (Side B) –
CD SECTION
Note:
1. CD Block is basically constructed to operate without adjustment.
2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10 MΩ impedance.
4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specified value with the following checks.
5. Check the focus bias check when optical pick-up block is replaced.
FOCUS BIAS CHECK
SECTION 5
ELECTRICAL ADJUSTMENTS
TUNER SECTION 0 dB=1 µV
(Except UK)
[AM]
Setting:
FUNCTION: TUNER
TUNER/BAND button: AM
[FM]
Setting:
FUNCTION: TUNER
TUNER/BAND button: FM
•Repeat the procedures in each adjustment several times.
