Sony HCD-GS30DAB - Side Panel (R) and Side Panel (L); Top Panel, DAB Board (UK)

7
HCD-GS10/GS30DAB

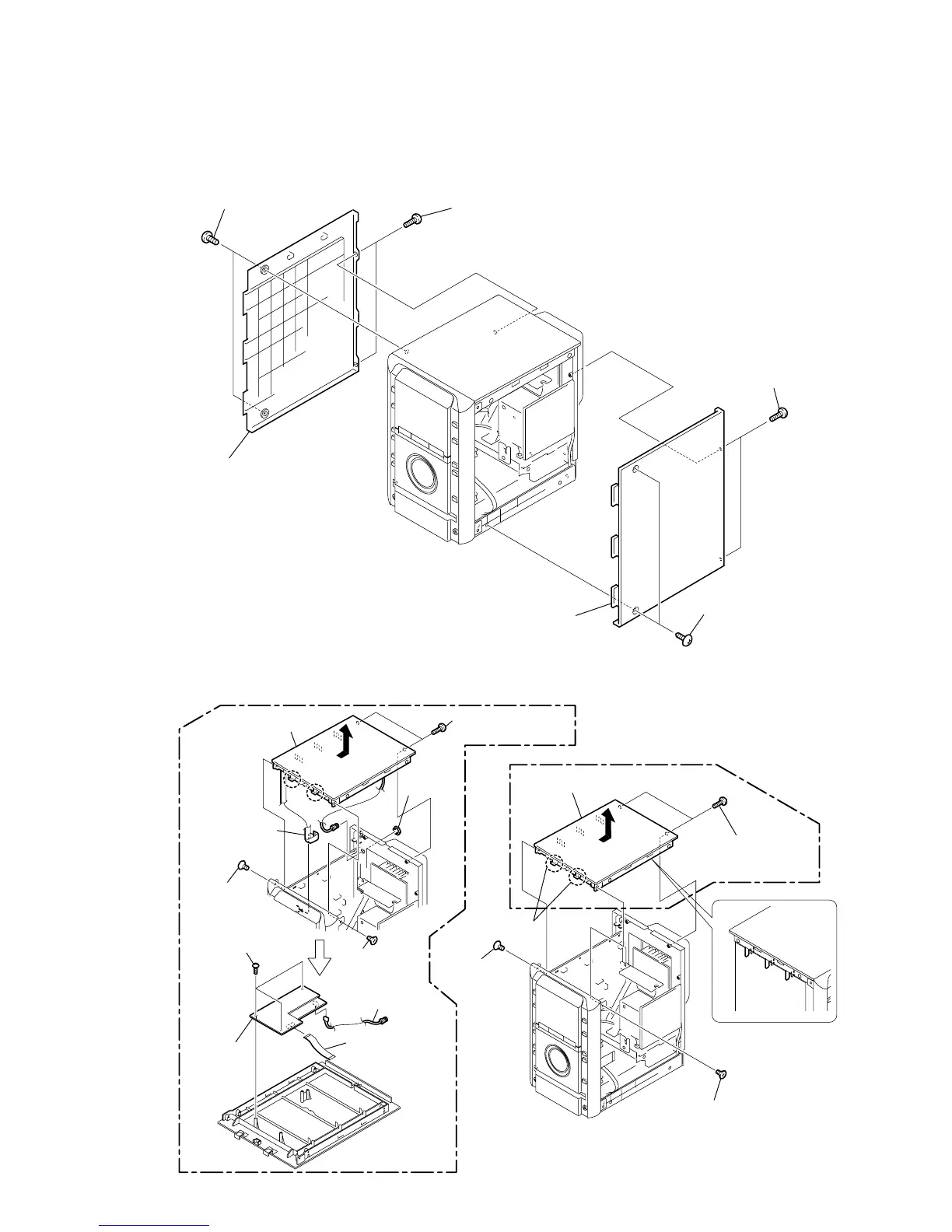

3-2. SIDE PANEL (R) AND SIDE PANEL (L)
3-3. TOP PANEL, DAB BOARD (UK)
3 side panel (R)
6 side panel (L)
1 two screws
(3 × 12)
4 two screws
(3 × 12)
2 two tapping screw
s
(+BVTP 3 × 10)
5 two tapping screws
(+BVTP 3 × 10)
Note: Follow the disassembly procedure in the numerical order given.
Ver. 1.2
1 screw
(+KTP2 3 × 8 )
2 screw
(+KTP2 3 × 8 )
4 two claws
5 top panel
3 two tapping screws
(+BVTP
3 × 10)
(EXCEPT UK)
7 screw
(+KTP2 3 × 8 )
8 two tapping screws
(+BVTP
3 × 10)
qa top panel
0 wire (flat type)
9core (CN500)
(UK)
qs three screws
(+BVTP 2.6)
qg DAB board
qd wire (flat type)
9core
qf pin connector
9 washer
6 screw
(+KTP2 3 × 8 )
