Sony HCD-H11 - CD Mechanism Section-1

– 65 –

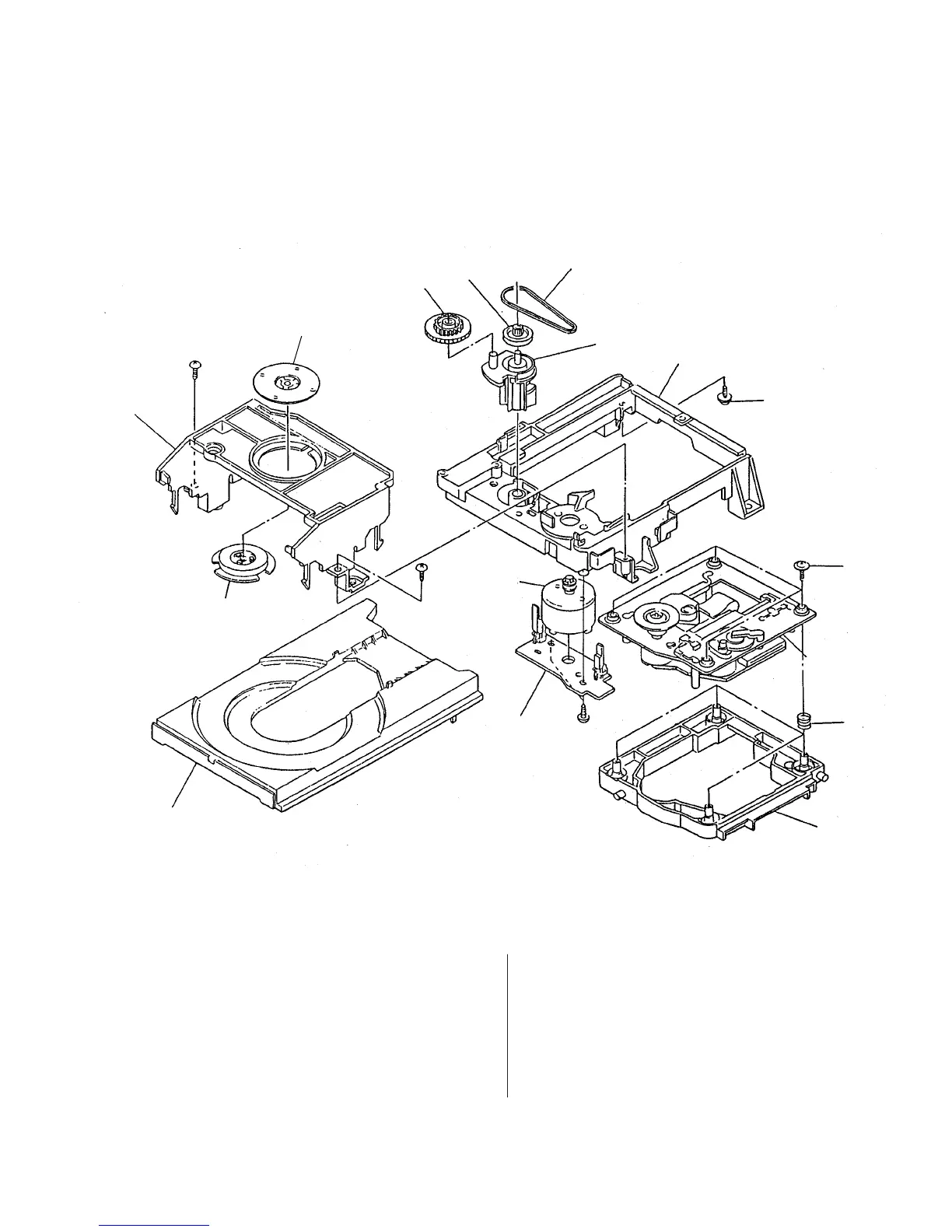

7-5. CD MECHANISM SECTION-1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
––––––– ––––––– –––––––––– ––––––– ––––––– ––––––– –––––––––– ––––––
301 4-960-836-01 TABLE, DISC
302 4-960-835-01 HOLDER (M)
303 1-452-719-11 MAGNET ASSY
304 4-960-842-01 GEAR (P)
305 4-960-841-01 PULLEY (S)
306 4-927-649-01 BELT
* 307 4-960-839-01 CAM
308 4-960-838-03 BASE (MD)
309 4-917-583-21 BRACKET, YOKE
310 4-933-134-01 SCREW (+PTPWH M2.6X6)
311 4-959-996-01 SPRING (932), COMPRESSION
312 4-960-834-01 HOLDER (BU)
* 313 1-650-836-11 LOADING BOARD
M903 A-4604-363-A MOTOR (L) ASSY (LOADING)
#5
#5
#5
BU-5BD19
310
M903
r A
303
(including r A)

302
304
305
306
307
308
309
311
312
313
301
