Sony HCD-H11 Service Manual

– 8 –
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

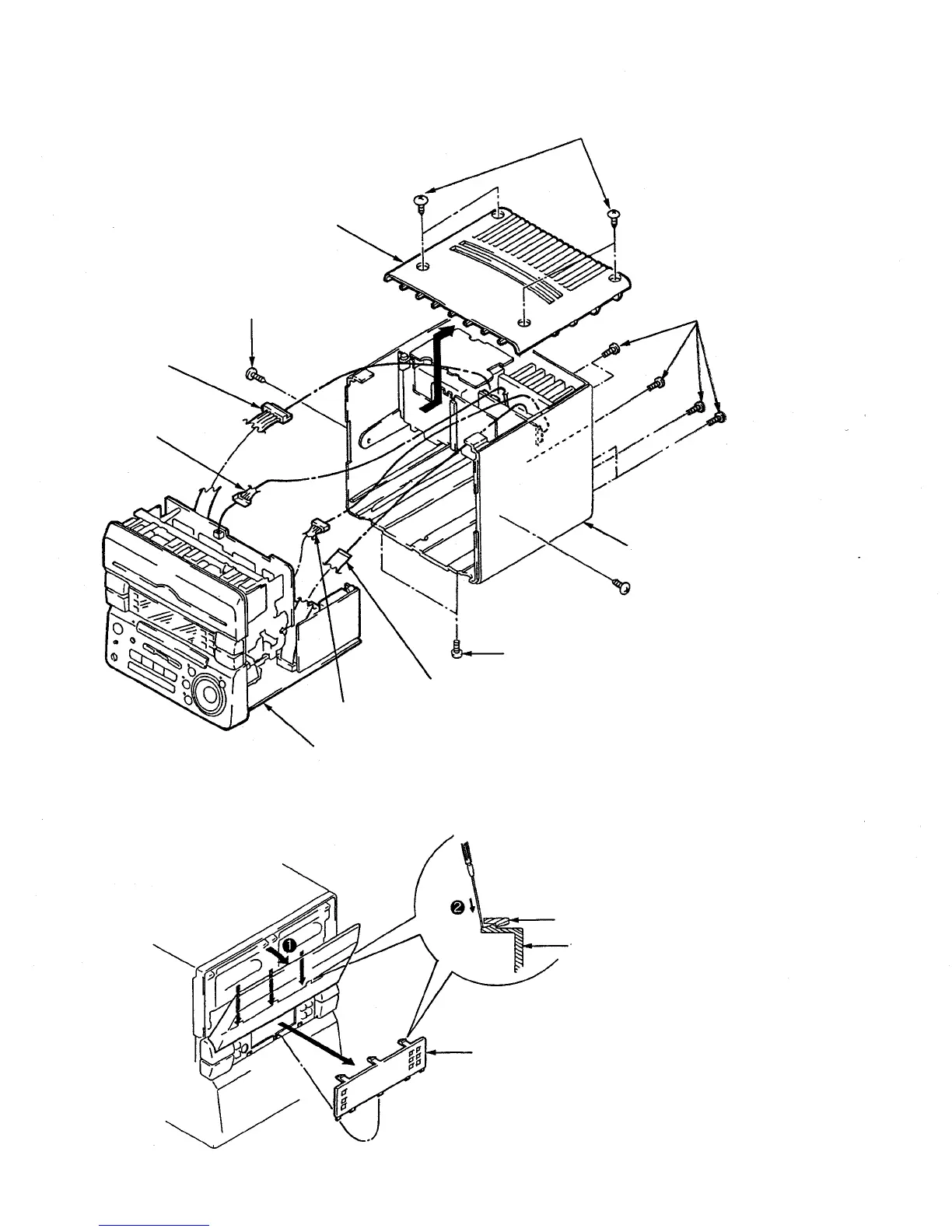

3-1. FRONT PANEL REMOVAL
3 Screw (Case 3TP2)
2 Screw (Case 3TP2)
4 Plate, top
6 CN803
(8 pin)
7 CN602
(2 pin)
8 CN801
(3 pin)
Front Panel Section
9 Wire (Flat Type) (17 cove)
1 Screw (+BVTT3X6)
2 Screw (Case 3TP2)
Case
5 Screw (+BVTP3X10)
Front Panel
Window (DIS)
Window (DIS)
r
TO ADJUST THE AZIMUTH


1
Raise the cassette lid.
2
Press on the window (DIS) clips (3 locations)
with a tool such as a thin screwdriver and
remove the window (DIS).
