Sony HCD-H11 - CD Mechanism Section-2

– 66 –

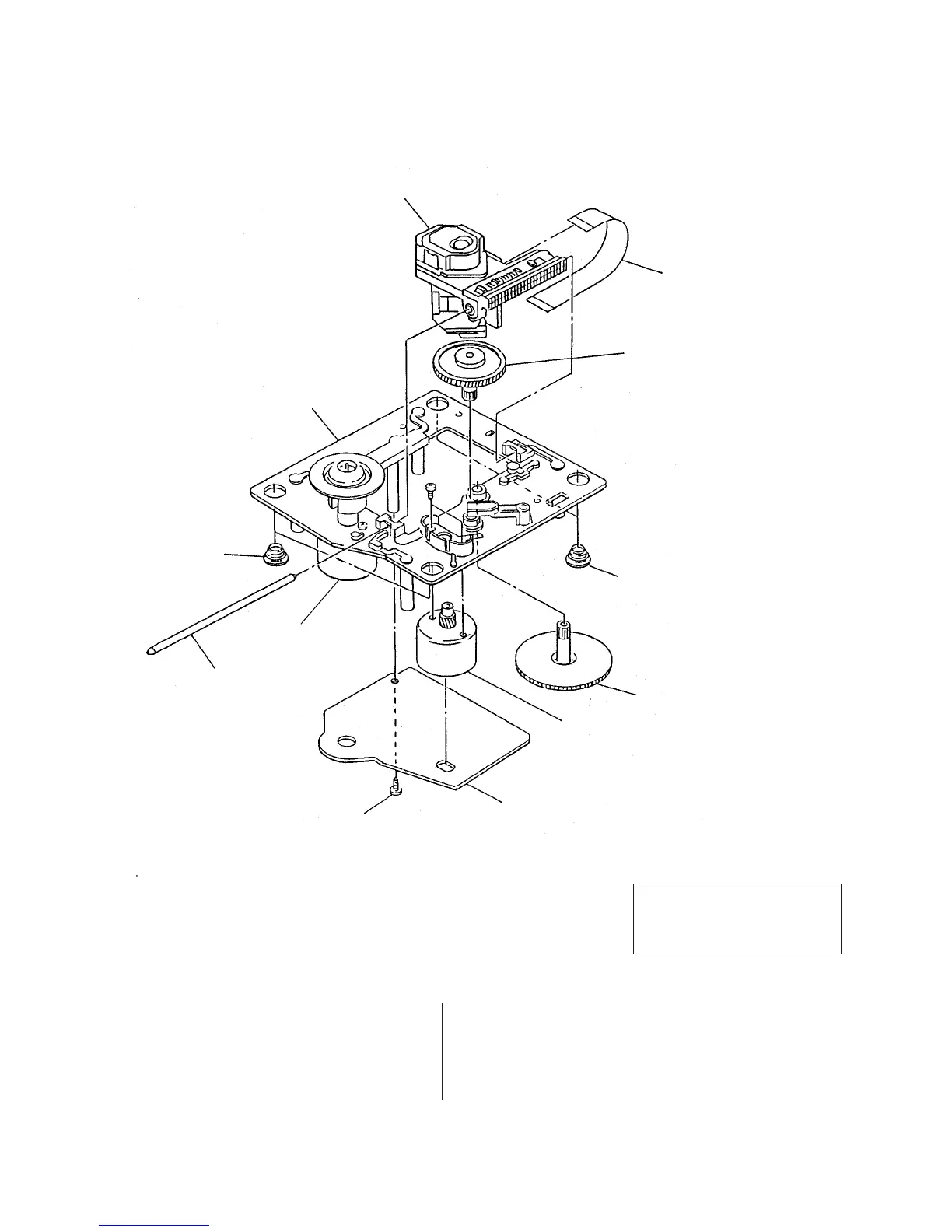

7-6. CD MECHANISM SECTION-2
355
356
357
354
353
351
352
358
354
M102
M101
(including r A)
r A
#12
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
––––––– ––––––– –––––––––– ––––––– ––––––– ––––––– –––––––––– ––––––
351 4-951-620-01 SCREW (2.6X8), +BVTP
* 352 A-4673-402-A BD BOARD, COMPLETE
353 4-917-565-01 SHAFT, SLED
354 4-951-940-01 INSULATOR (BU)
! 355 8-848-387-11 OPTICAL PICK-UP KSS-213BA/S-N
356 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
357 4-917-567-01 GEAR (M)
358 4-917-564-01 GEAR (P), FLATNESS
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
