– 69 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 3-908-597-01 CAM (A)
202 3-908-608-11 SCREW, STEP
203 X-3372-930-1 ARM (A) ASSY, FR
204 X-3370-169-1 FLYWHEEL (AR) ASSY
205 3-928-047-01 PULLEY, TENSION
206 3-908-599-01 LEVER (REV-A)
207 3-908-601-01 SPRING (REV LEVER), TORSION
208 3-908-603-12 LEVER (TRIGGER A)
209 X-3367-593-1 FLYWHEEL (BF) ASSY
210 3-908-605-01 SPRING (TRIGGER), TORSION
211 3-908-609-01 GEAR, TRIGGER
212 3-913-845-11 BELT (A)
213 3-913-846-11 BELT (FR)
214 X-3370-171-1 FLYWHEEL (BR) ASSY
215 3-908-600-01 LEVER (REV-B)
* 216 1-650-669-11 LEAF SWITCH BOARD
217 3-908-598-01 CAM (B)
218 X-3372-931-1 ARM (B) ASSY, FR
219 3-911-114-01 SPRING (FR), TORSION
220 3-908-604-01 LEVER (TRIGGER B)
221 3-911-115-01 WASHER, STOPPER
222 X-3371-441-1 CHASSIS ASSY, MECHANICAL
224 3-917-176-11 BELT (B)
225 X-3370-172-1 FLYWHEEL (AF) ASSY
M1 X-3371-223-1 MOTOR ASSY, CAPSTAN
M2 A-2004-410-A MOTOR ASSY, DC (TRIGGER)

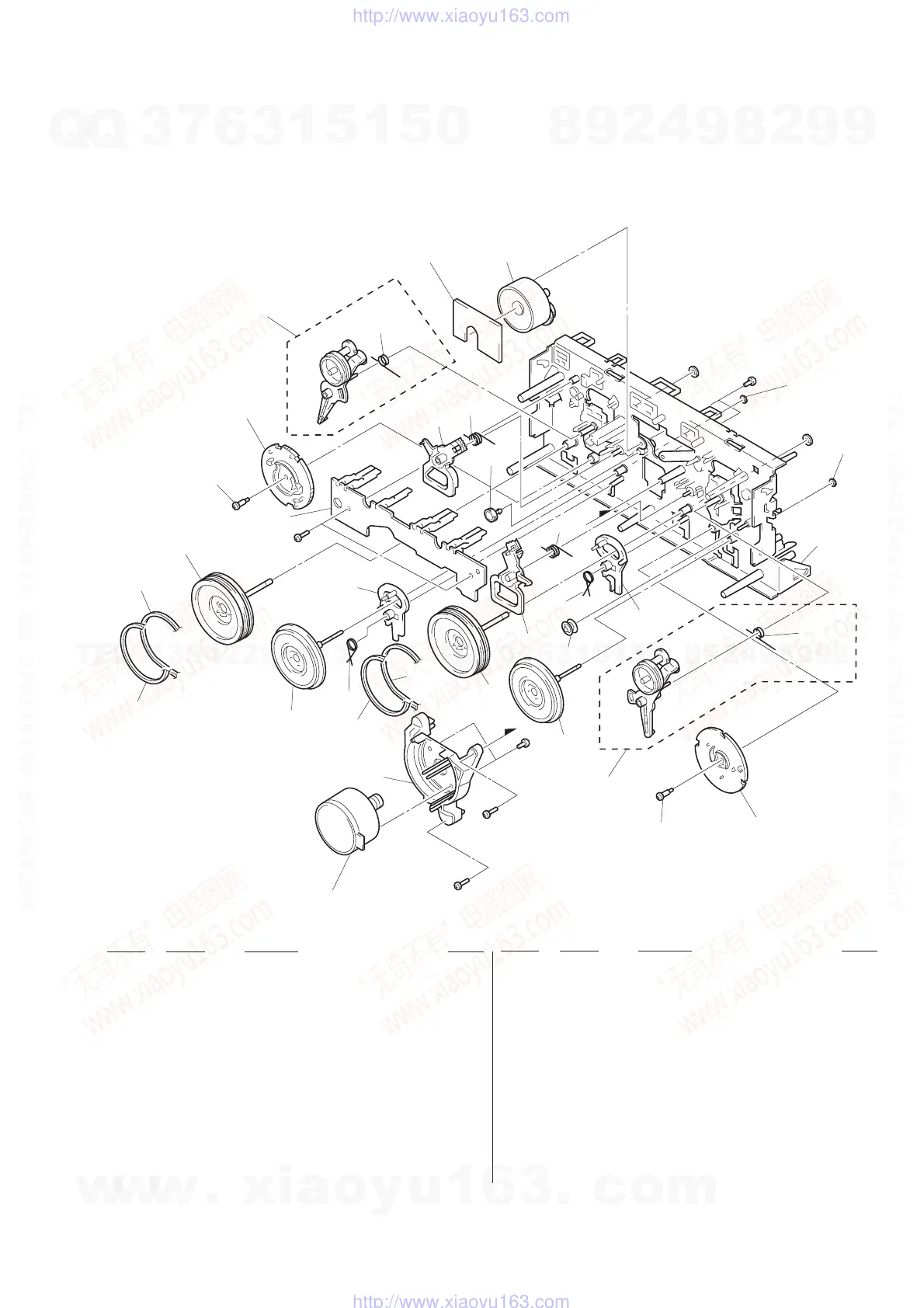

(5) TAPE MECHANISM SECTION-2
(TCM-220WR2)
r
C: MOTOR BOARD
217
202
216
#4
209
213
224
214
215
207
213
212
225
205
202
201
219
222
221
#8
210
206
207
#8
#9
221
220
210
219
211
208
M1
#10
#10
#7
not
supplied
r
C
M2
204
203
218
