Sony HCD-LV60 - Page 7

7

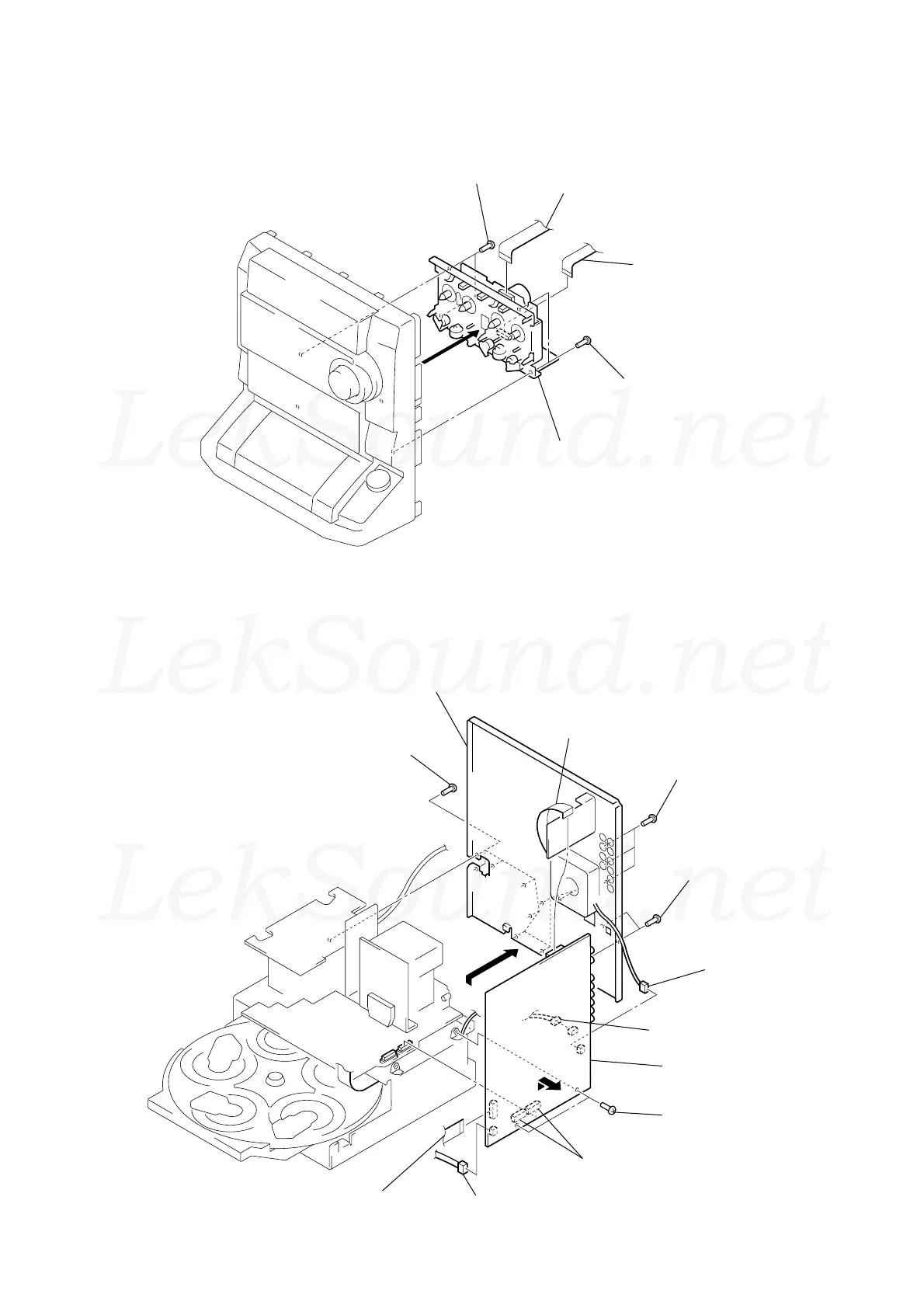

TAPE MECHANISM DECK (TCM-230PWR12)
MAIN BOARD
6 wire (flat type) (13 core)
(CN411)
2 nine screws
(BVTP3 × 8)
5 back panel
1 wire (flat type) (13 core)
(CN441)
2 three screws (BVTP3 × 8)
2 two screws (BVTP3 × 8
)
4 connector (CN903)
7 connector (CN701)
0 MAIN board
3
9 two connector
(CN803, 804)
7 connector
(CN412)
8 two screws
(BVTP3 × 8)
1 wire (flat type) (17 core)
(CN1001)
2 two screws
(BVTP3 × 8)
1 wire (flat type) (15 core)
(CN601)
2 two screws
(BVTP3 × 8)
3 tape mechanism deck
(TCM-230PWR12)
