Sony HCD-LV60 - Page 9

9

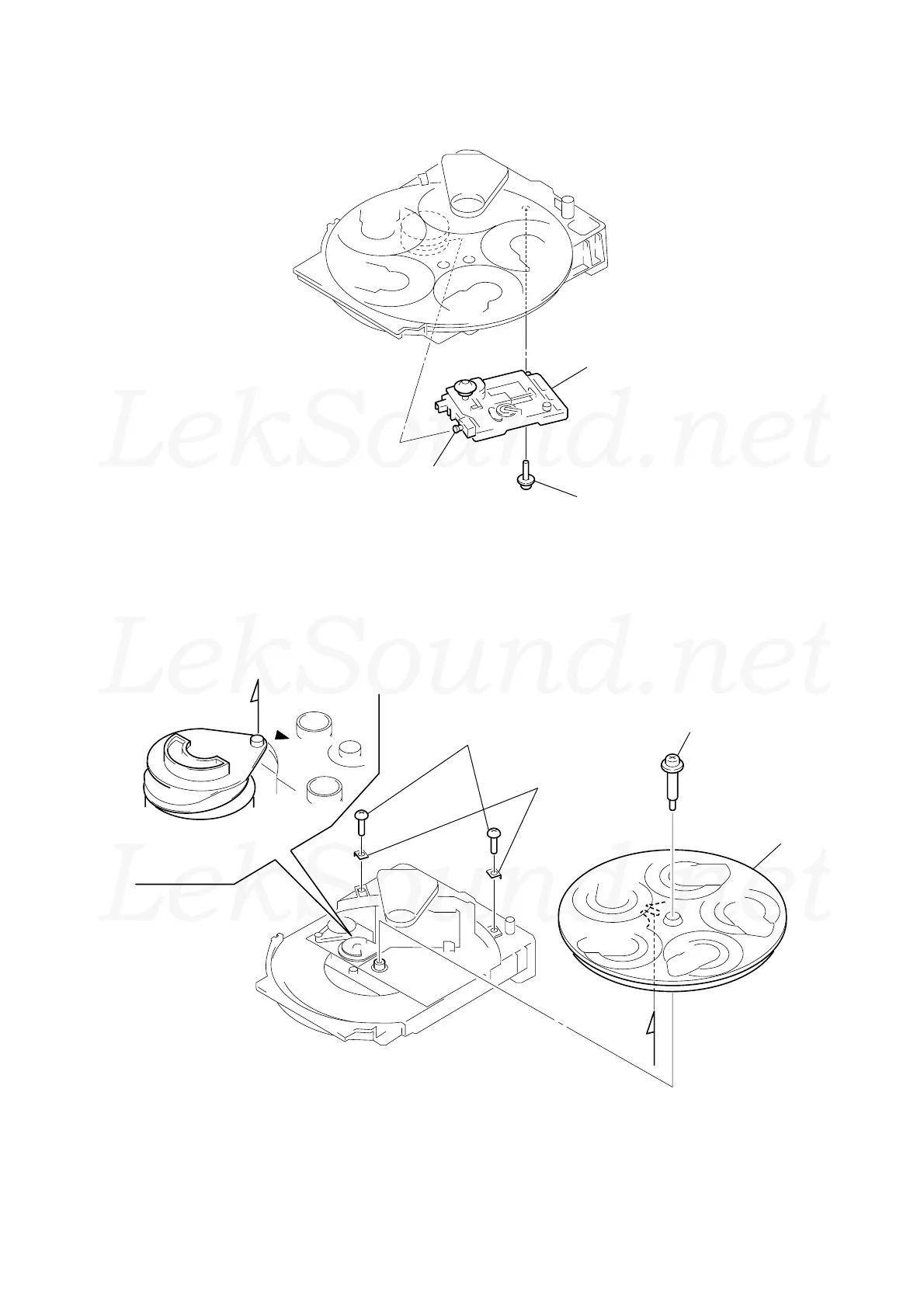

BASE UNIT (BU-5BD34L)
DISC TABLE
3 base unit
(BU-5BD34L)
1 BU fitting scre
w
2 boss
1 two screws
(BVTP3 × 8)
A
2 two brackets (BU)
3 step screw
4 disc table
A
Note: When the disc table is installed, adjust the positions of roller cam
and mark B as shown in the figure, then set to the groove of disc
table.
