Sony HCD-LX5 - Schematic Diagram - PANEL FL Board

2525
HCD-LX5/LX6/LX30/LX50

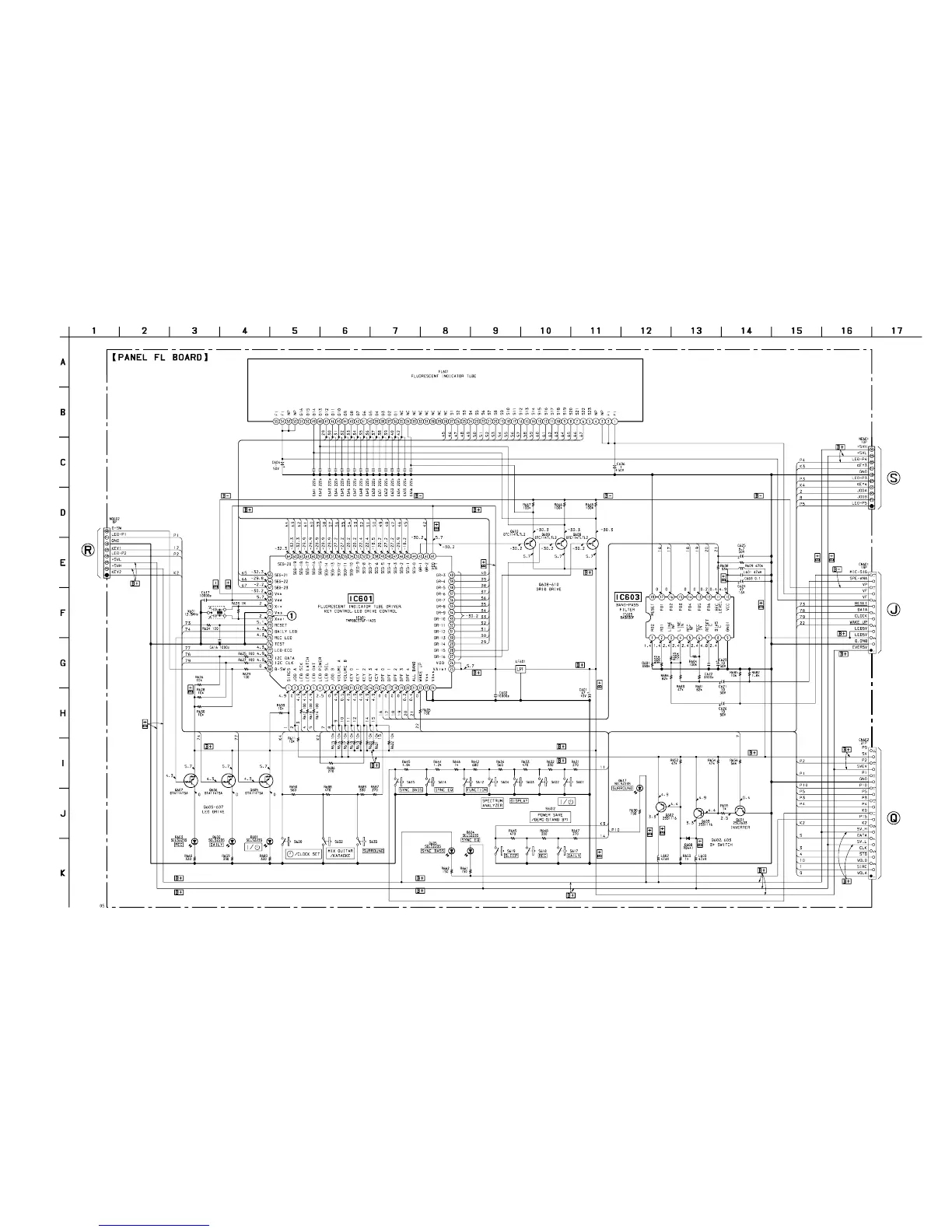

4-15. SCHEMATIC DIAGRAM – PANEL FL Board – • See page 23 for Waveforms. • See page 36 for IC Block Diagrams.
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM
(Page 29)
(Page 29)
(Page 21)
(Page 27)
