8

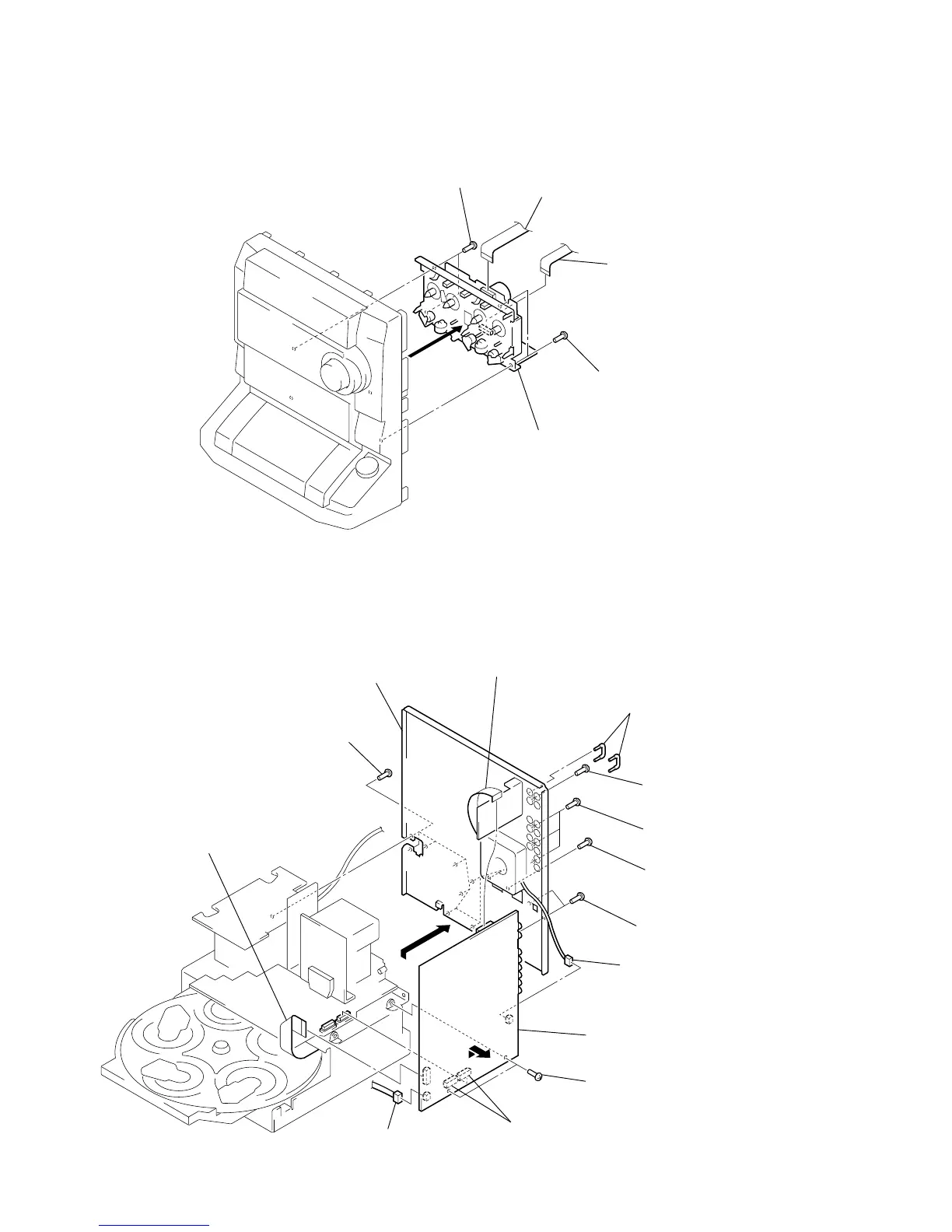

TAPE MECHANISM DECK (TCM-230PWR1)
MAIN BOARD
1 wire (flat type) (17 core)
(CN1001)
2 two screws
(BVTP3 × 8)
1 wire (flat type) (15 core)
(CN601)
2 two screws
(BVTP3 × 8)
3 tape mechanism deck
(TCM-230PWR1)
7 wire (flat type) (19 core)
(CN411)
2 nine screws
(BVTP3 × 8)
6 back panel
1 wire (flat type) (15 core) (LX5)
wire (flat type) (13 core) (LX6/LX30/LX50)
(CN441)
3 jumper plug
(LX5/LX6: Mexican/LX30/LX50)
2 screw (BVTP3 × 8)
(LX5/LX6: Mexican/
LX30/LX50)
2 three screws (BVTP3 × 8)
2 screw (BVTP3 × 8)
(LX50)
2 two screws (BVTP3 × 8)
5 connector (CN903)
qa MAIN board
4
0 two connector
(CN803, 804)
8 connector
(CN412)
9 two screws
(BVTP3 × 8)
To Next Page
