Sony HCD-MC1 - Schematic Diagrams; BD Section Schematic Diagram

HCD-MC1

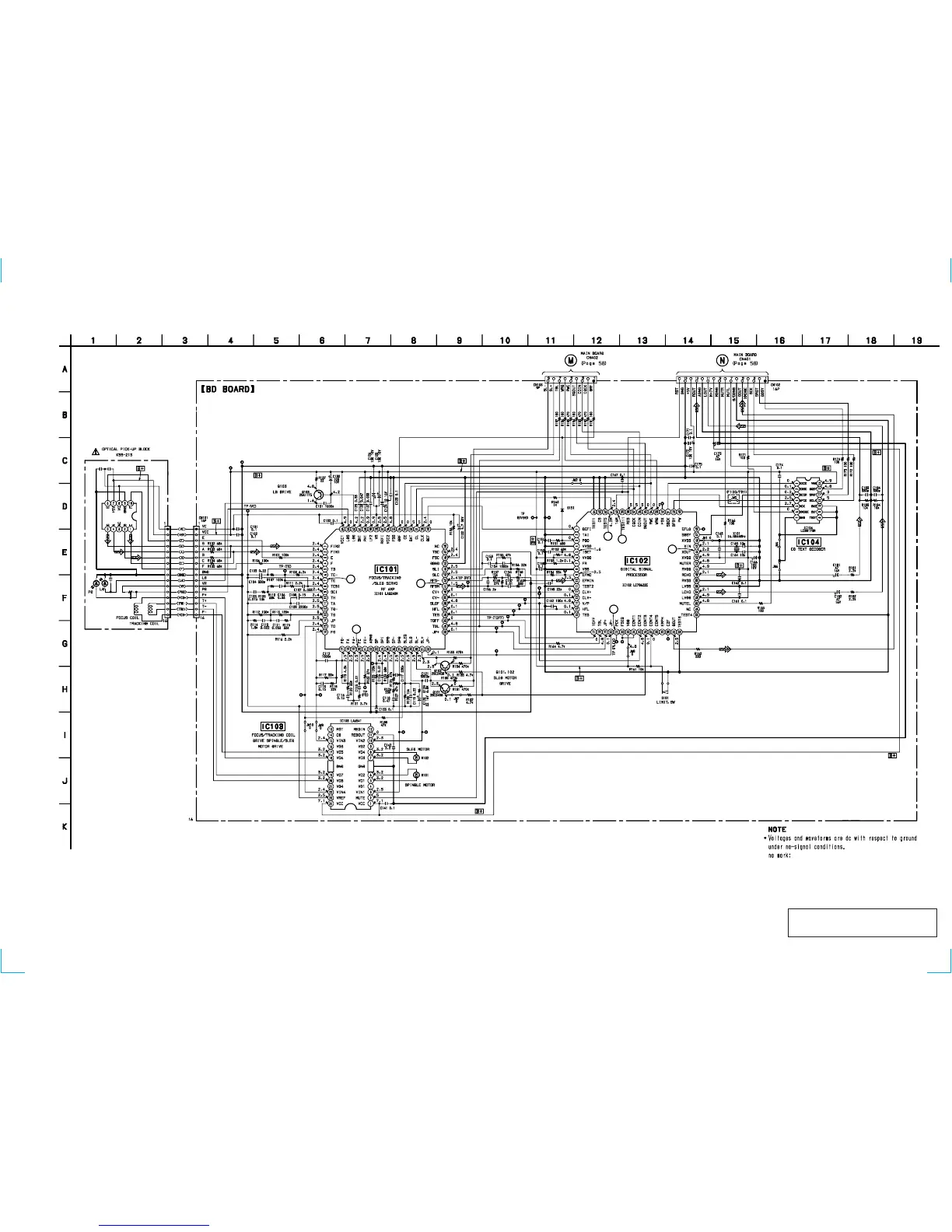

6-4. SCHEMATIC DIAGRAM BD SECTION • See page 71 for Waveforms. • See page 72 for IC Pin Functions.
1SS133T
1
2
3
7
6
4
5
BA/F-NP
CD
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
— 37 — — 38 —
