SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
— 81 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

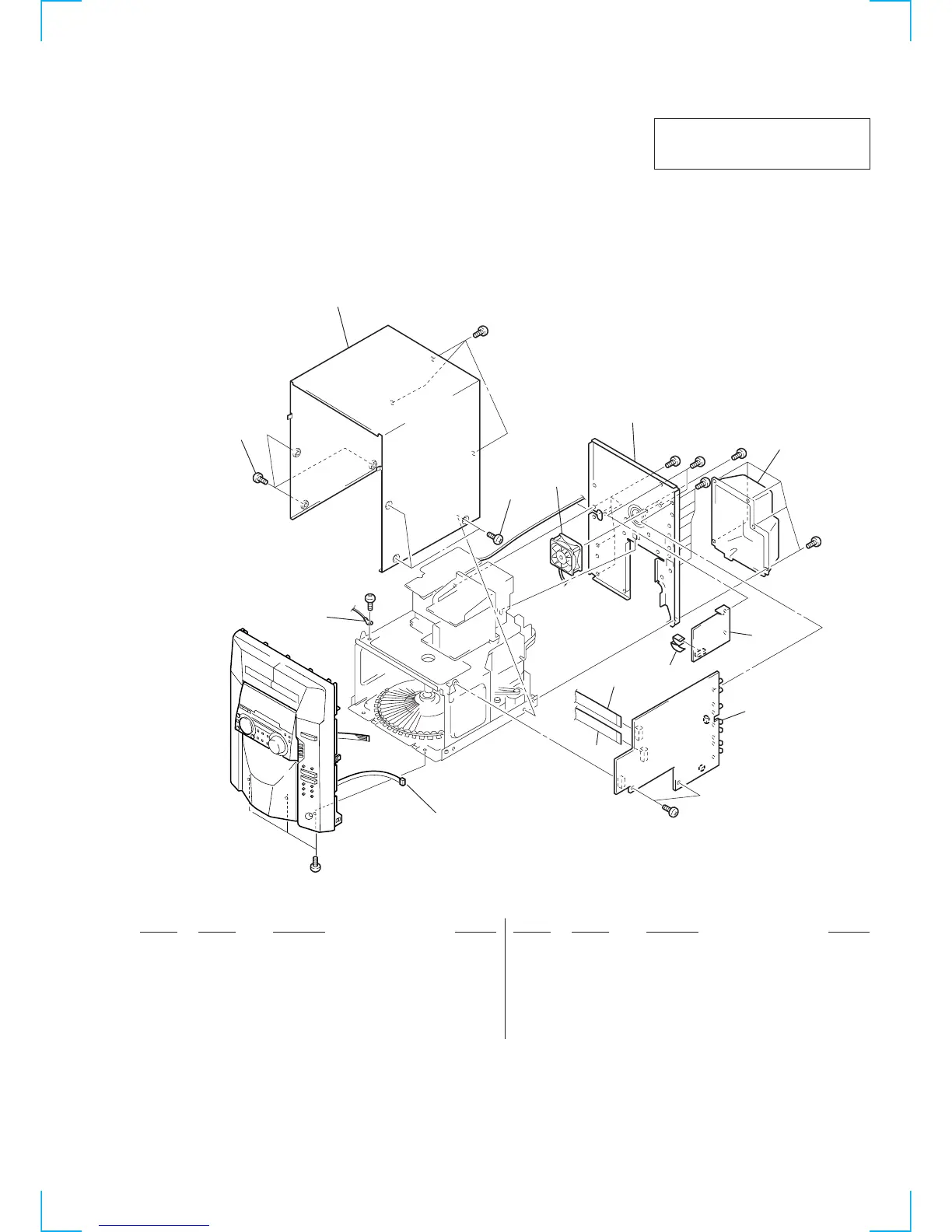

7-1. CASE SECTION
1 3-363-099-11 SCREW (CASE 3 TP2)
* 2 4-999-792-01 CASE
* 3 4-221-076-21 PANEL, BACK (US)
* 3 4-221-076-31 PANEL, BACK (E)
* 4 4-990-365-11 COVER
5 1-693-457-11 ENCAPSULATED COMPONENT (TUNER UNIT)
6 1-769-972-11 WIRE(FLAT TYPE) (13 CORE)
* 7 A-4426-587-A MAIN BOARD, COMPLETE (US)
* 7 A-4426-588-A MAIN BOARD, COMPLETE (E)
8 1-765-332-11 WIRE (FLAT TYPE) (15 CORE)
9 1-773-055-11 WIRE (FLAT TYPE) (17 CORE)
FAN101 1-698-792-11 FAN, DC
1
2
#1
1
not suppliednot supplied
#2
not
supplied
#1
#1
8
9
7
5
6
FAN101
3
4
#1
#1
#1
#1
#1
To Next Page
