Sony HCD-MC1 - Chassis Section Exploded View

— 83 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

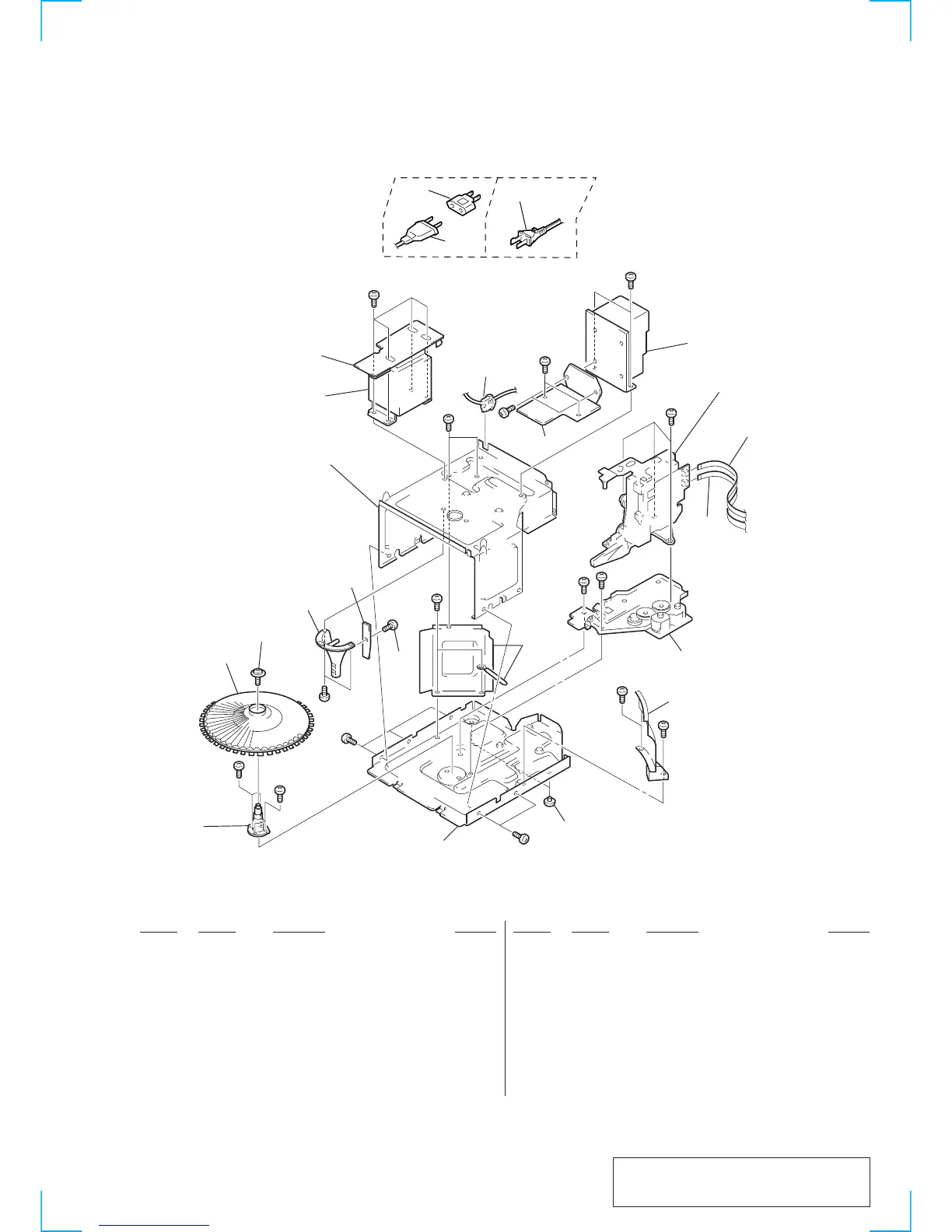

7-3. CHASSIS SECTION
107
108
#2
103
102
#2
#4
#2
#2
#5
#5
#6
#1
#1
#3
104
105
106
#1
#1
#3
#3
#1
113
112
not
supplied
not
supplied
111
110
T991
not supplied
CD MECHANISM
DECK SECTION-1
CD MECHANISM
DECK SECTION-2
101
not
supplied
115
114
114
109
E MODEL
US MODEL
101 4-988-439-01 HOLDER, TABLE
102 4-988-434-01 TABLE (50)
103 4-957-577-31 SCREW PTP WH (2.6 × 8) (DIA. 10)
* 104 4-990-371-11 HOLDER (LED)
* 105 1-669-645-11 CD LED BOARD
106 4-951-620-01 SCREW (2.6X8), +BVTP
107 1-674-313-11 TRANS BOARD
108 3-703-244-00 BUSHING (2104), CORD
108 3-703-571-11 BUSHING (S) (4516), CORD
! 109 1-569-007-11 ADAPTOR, CONVERSION 2P (E)
110 1-782-558-21 WIRE (FLAT TYPE) (16 CORE)
111 1-782-559-21 WIRE (FLAT TYPE) (9 CORE)
* 112 4-990-370-11 COVER (CD)
113 4-965-822-01 FOOT
! 114 1-783-531-11 CORD, POWER (US)
! 114 1-575-653-11 CORD, POWER (E)
* 115 A-4426-598-A POWER AMP BOARD, COMPLETE (US)
* 115 A-4426-599-A POWER AMP BOARD, COMPLETE (E)
! T991 1-431-348-31 TRANSFORMER, POWER (US)
! T991 1-431-842-21 TRANSFORMER, POWER (E)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
