Sony HCD-MC1 - Tape Mechanism Deck Section-1 Exploded View

— 87 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

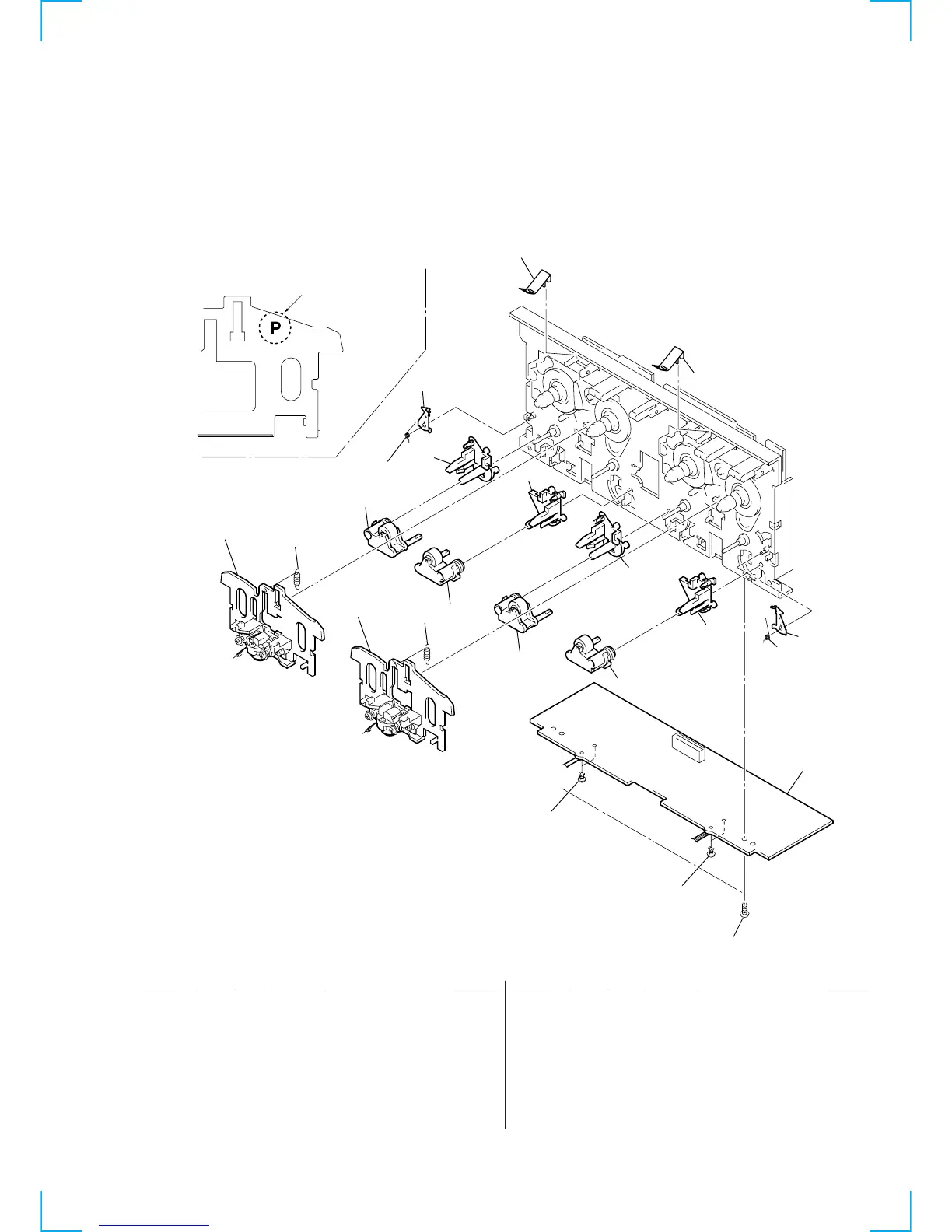

7-7. TAPE MECHANISM DECK SECTION-1
(TCM-230AWR2)
(TCM-230PWR2)
451
452
452
453
453
454
454
455
455
456
460
456
457
462
458
458
457
HRPE101
HP101
459
*NOTE: Two types of parts which are not interchangeable are available
for the Head deck (A) ASSY and Head deck (B) ASSY.
When replacing the parts, refer to the following figure, and use the
appropriate part.
Parts with “P” mark: 230PWR2
Parts without “P” mark: 230AWR2
not supplied
not supplied
451 3-376-464-11 SCREW(+PTT 2.6X6),GROUND POINT
452 3-911-116-42 RIVET, PUSH
453 3-016-574-11 SPRING (HEAD), TENSION
454 X-3374-156-4 PINCH LEVER (REV) ASSY
455 X-3374-155-4 PINCH LEVER (FWD) ASSY
456 3-016-564-01 BASE (PINCH LEVER FWD)
457 3-016-565-01 BASE (PINCH LEVER REV)
458 3-026-892-01 SPRING (CASSETTE), LEAF
459 A-2007-731-A AUDIO BOARD,COMPLETE
460 3-016-573-01 LEVER (EJECT PREVENTION R)
462 3-016-572-01 LEVER (EJECT PREVENTION L)
HP101 A-2056-681-B DECK (A) ASSY, HEAD(230AWR2)(*NOTE)
HP101 A-2056-683-B DECK (A) ASSY, HEAD(230PWR2)(*NOTE)
HRPE101A-2056-682-B DECK (B) ASSY, HEAD(230AWR2)(*NOTE)
HRPE101A-2056-684-B DECK (B) ASSY, HEAD(230PWR2)(*NOTE)
