— 9 —

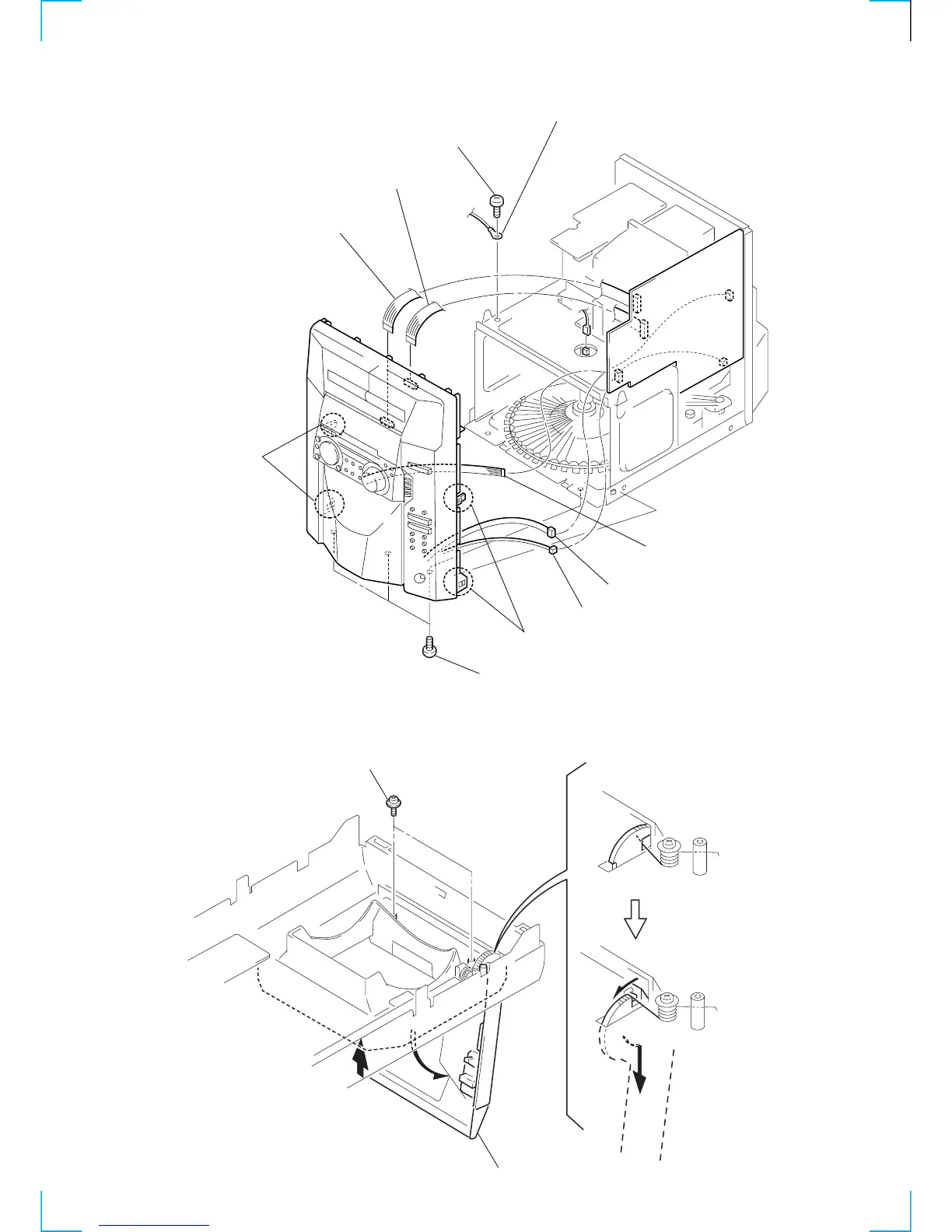

2-2. FRONT PANEL SECTION
2-3. DOOR ASSY
2 Open the door ass'y
1 Two screws
(PTPWH 2.6
× 8)
A
3
Remove the door ass'
y
to direction of the
arrow
A .
6 Screws
(BVTT 3
× 8)
7 Lug
2 Wire (flat type)
(17 core)
1 Wire (flat type)
(15 core)
9 Two claws
9 Two claws
8 Three screws
(BVTP 3
× 8)
3 Wire (flat type) (15 core)
4 Connector CN108
5 Connector CN454
