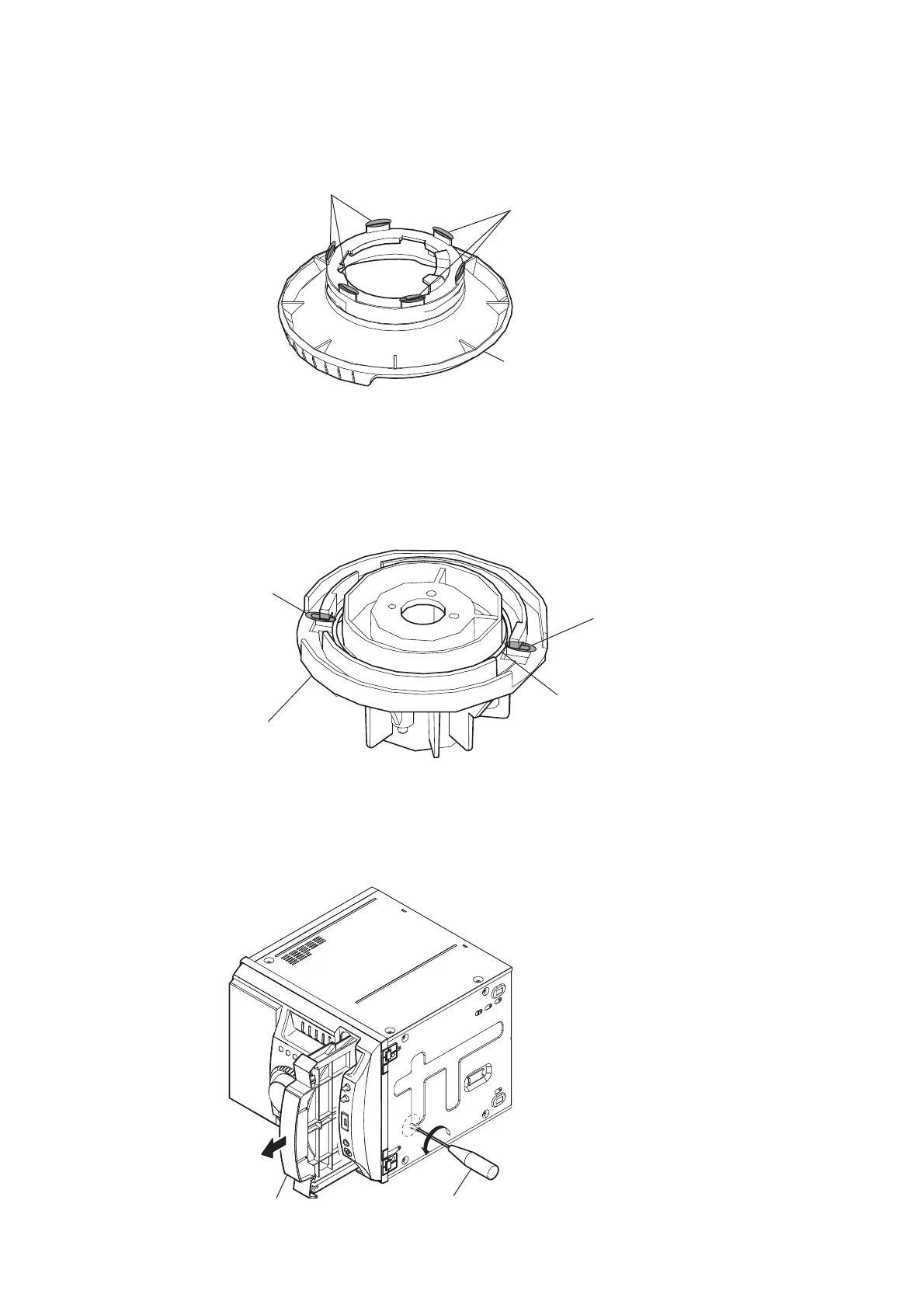

MANUAL OPENING AND CLOSING THE DVD TRAY
As illustrated, insert a fl at-head screwdriver and give a turn to the left to put the tray out.
NOTE FOR REPLACEMENT OF THE KNOB (JOG)
When replacing the KNOB (JOG), apply the SANKOL FTA-001HA (Part No. J-2501-264-A) to the end of the rib at 6 places.
NOTE FOR REPLACEMENT OF THE HOLDER (KNOB)
When replacing the HOLDER (KNOB), apply the SANKOL FG-21BL (Part No. J-2501-251-A) to the end of the SPRING (KNOB)
at 2 places after the SPRING (KNOB) is installed.
SANKOL FTA-001HA
knob (JOG)
SANKOL FTA-001HA
SANKOL FG-21BL
SANKOL FG-21BL
holder (knob)
spring (knob)
1 Insert a tapering driver into the
hole of the chassis, and turn it
in the direction of the arrow A.
A
2
tray
– Bottom view –
