Sony HCD-RV55 - Front Panel Section (3) Exploded View

63
HCD-RV22/RV55

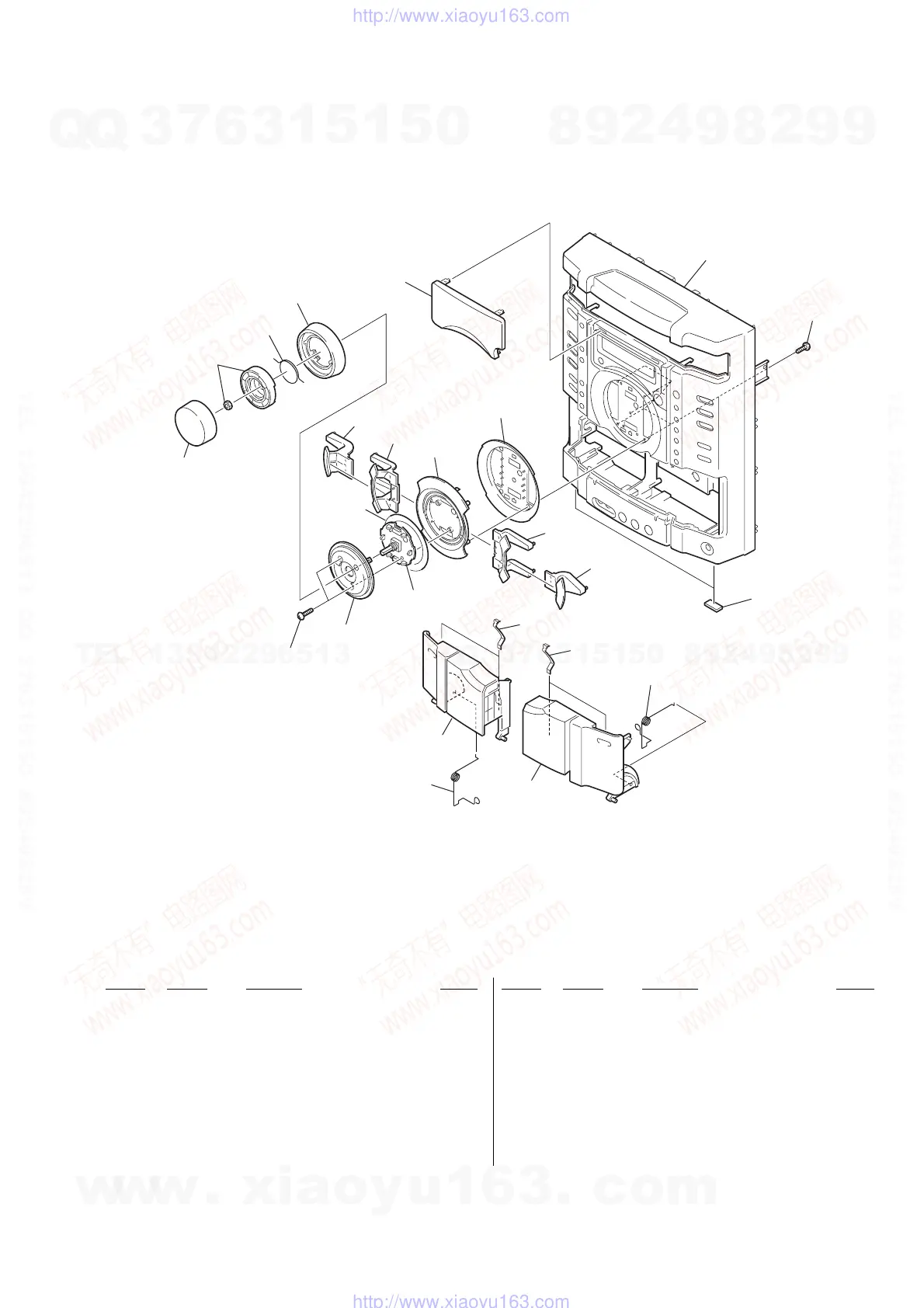

7-4. FRONT PANEL SECTION (3)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-252-202-01 DOOR (B), CASS (RV22)
151 4-252-202-11 DOOR (B), CASS (RV55)
152 4-252-201-01 DOOR (A), CASS (RV22)
152 4-252-201-11 DOOR (A), CASS (RV55)
153 4-951-620-01 SCREW (2.6X8), +BVTP
154 4-252-214-01 KNOB, VOLUME
155 X-4956-295-1 RING ASSY, KNOB
156 4-253-804-01 PANEL, FRONT (RV22)
156 4-253-804-11 PANEL, FRONT (RV55)
157 4-252-198-01 WINDOW, DISPLAY
158 4-252-205-01 BUTTON, PLAY (RV22)
158 4-252-205-11 BUTTON, PLAY (RV55)
159 4-252-207-11 BUTTON, FF/ALBUM+
160 4-252-200-01 COVER, BUTTON
161 4-252-208-11 BUTTON, FR/ALBUM–
162 4-252-206-01 BUTTON, STOP
163 4-225-252-01 CUSHION (FOOT)
164 4-238-631-01 SPRING, TAPE
165 4-951-620-11 SCREW (2.6X10), +BVTP
not supplied
not supplied
163
164
164
151
152
157
not supplied
not supplied
not supplied
not supplied
165
153
154
155
156
161
158
159
162
160
not supplied
(6 STREAM LED board)
not
supplied
