Sony HCD-RV55 - CD Mechanism Deck Section (3) Exploded View

67
HCD-RV22/RV55

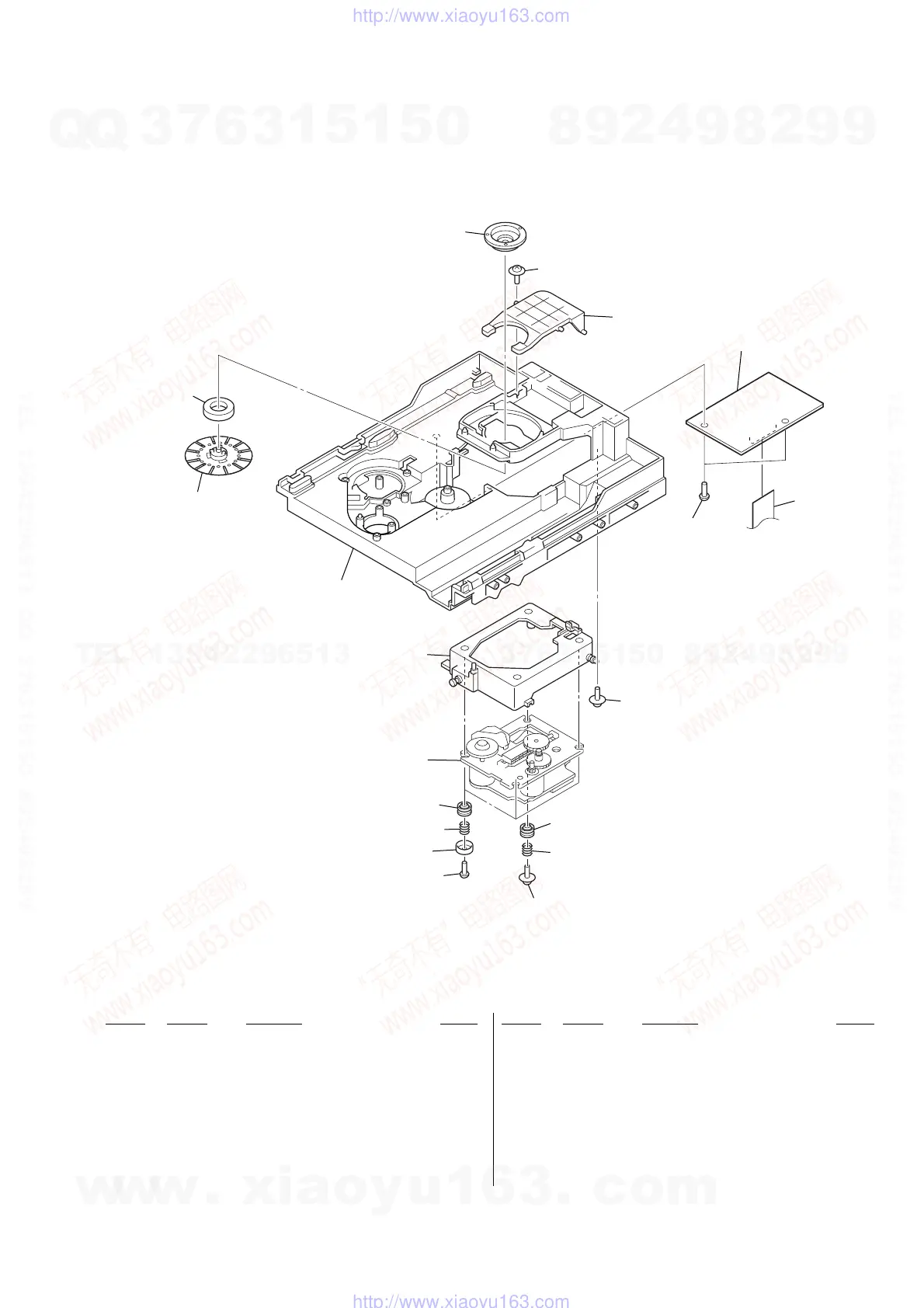

7-8. CD MECHANISM DECK SECTION (3)
(CDM74-K4BD49)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
352
353
351
354
354
355
356
365
357
357
358
358
359
360
361
363
362
364
BU-K4BD49
351 X-4955-774-2 PULLEY (SM) ASSY, CHUCKING
352 1-471-035-11 MAGNET ASSY
353 4-221-688-01 PULLEY (B), CHUCKING
354 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
355 4-243-822-02 LEVER (LIFTER)
356 X-4955-536-1 HOLDER (213) ASSY
357 4-227-549-11 INSULATOR
358 4-227-045-11 SPRING (INSULATOR), COIL
359 4-231-151-01 STOPPER (BU)
360 4-218-253-32 SCREW (M2.6), +BTTP
361 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
362 A-1079-677-A VMP43GY BOARD, COMPLETE (RV22:EA)
362 A-4752-391-A VMP43GY BOARD, COMPLETE
(EXCEPT RV22:EA)
363 4-951-620-01 SCREW (2.6X8), +BVTP
364 1-775-265-11 WIRE (FLAT TYPE) (29 CORE)
365 4-243-817-01 CHASSIS
