HCD-RV660D/RV990D
2-2. CD DOOR

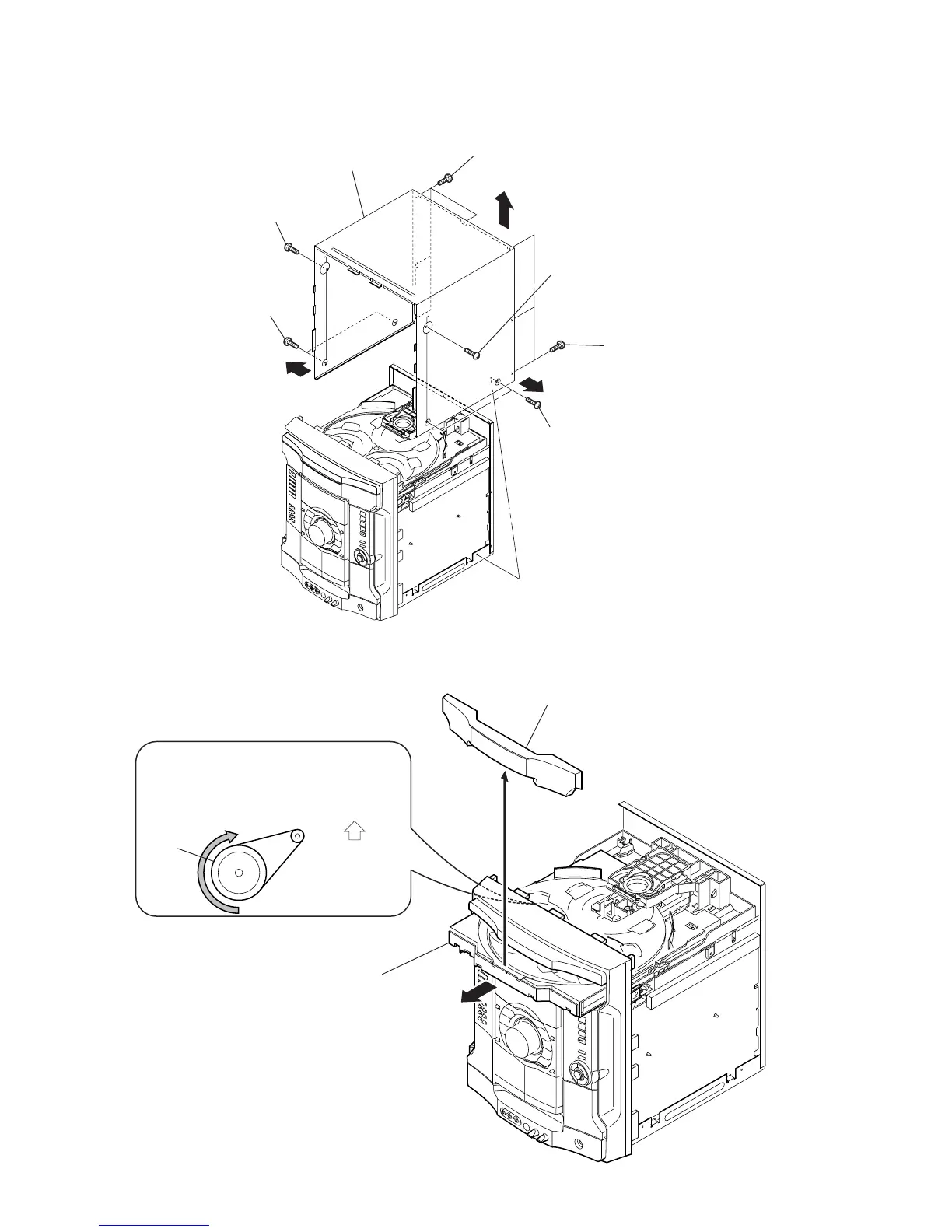

Note : Follow the disassembly procedure in the numerical order given.
2-1. CASE
1 two screws
(case 3 TP2)
2 screw
(case 3 TP2)
4 screw
(case 3 TP2)
3 two screws
(case 3 TP2)
5 four screws (+BVTT 3 × 6)
9 case
6 three screws
(+BVTT 3
× 6)
7
7
8
2 Pull-out the disc tray.
4 CD door
1 Turn the pulley to the direction of arrow.
pulley
Front panel side
CD mechanism deck (CDM74S-DVBU23)
3
Ver 1.1
