HCD-RV660D/RV990D

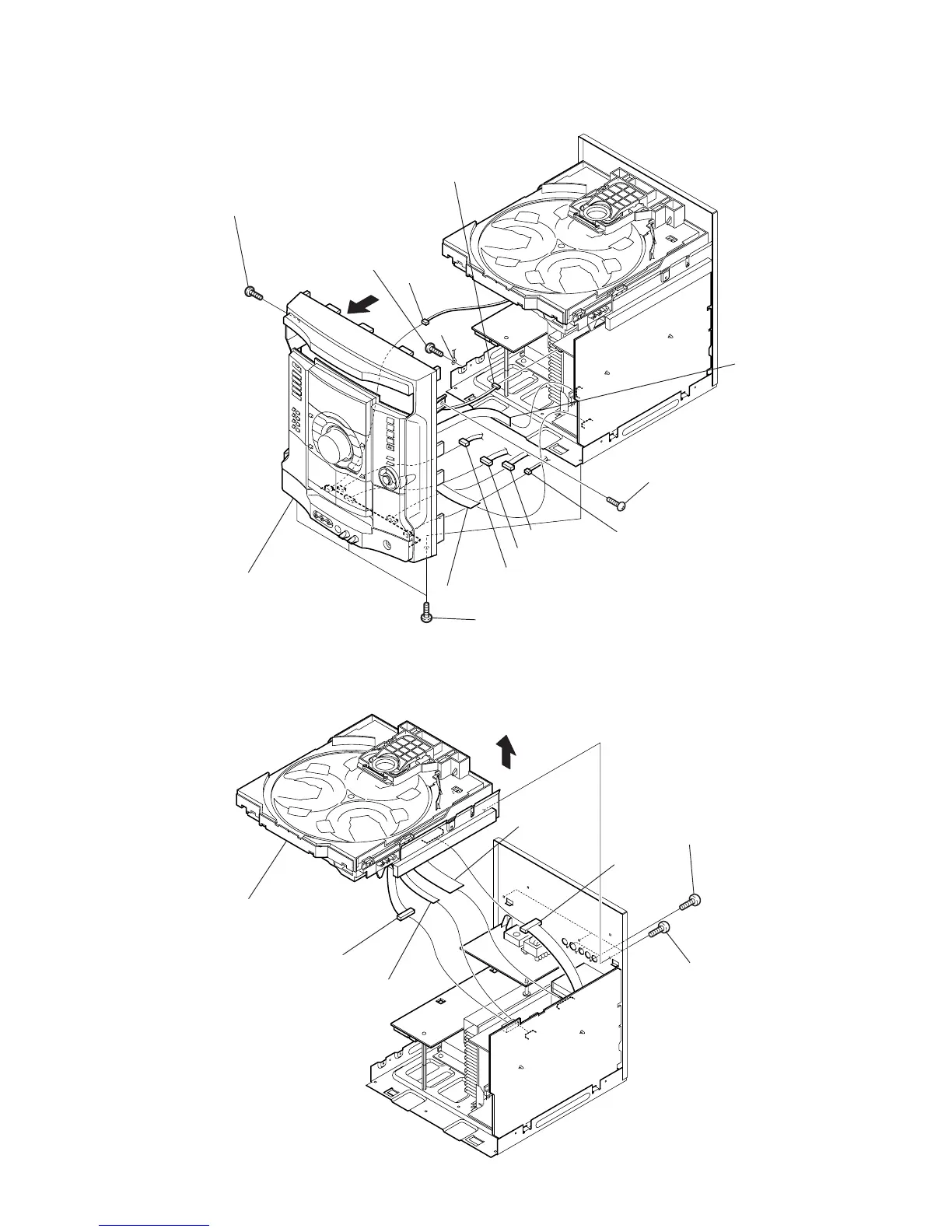

2-3. FRONT PANEL SECTION
2-4. DVD BLOCK SECTION
6 CN501
9 CN605
qa CN502
qd CN503
8 CN70
6
7 CN304
0 connector
qs connector
2 screw
(+BVTP 3
× 8)
3 screw
(+BVTP 3
× 8)
4 screw
(+BVTP 3
× 8)
5
lug
1 three screws (+BVTP 3 × 8)
qf front panel section
2 three screws
(+BVTT 3
× 6
)
1 three screws
(+BVTP 3
× 8)
3
4
CN804
5 CN301
6 CN101
7 CN543
8 DVD block section
