Sony HCD-RX110AV - Printed Wiring Board - Panel Section

– 77 – – 78 –
HCD-GRX10AV/RX110AV

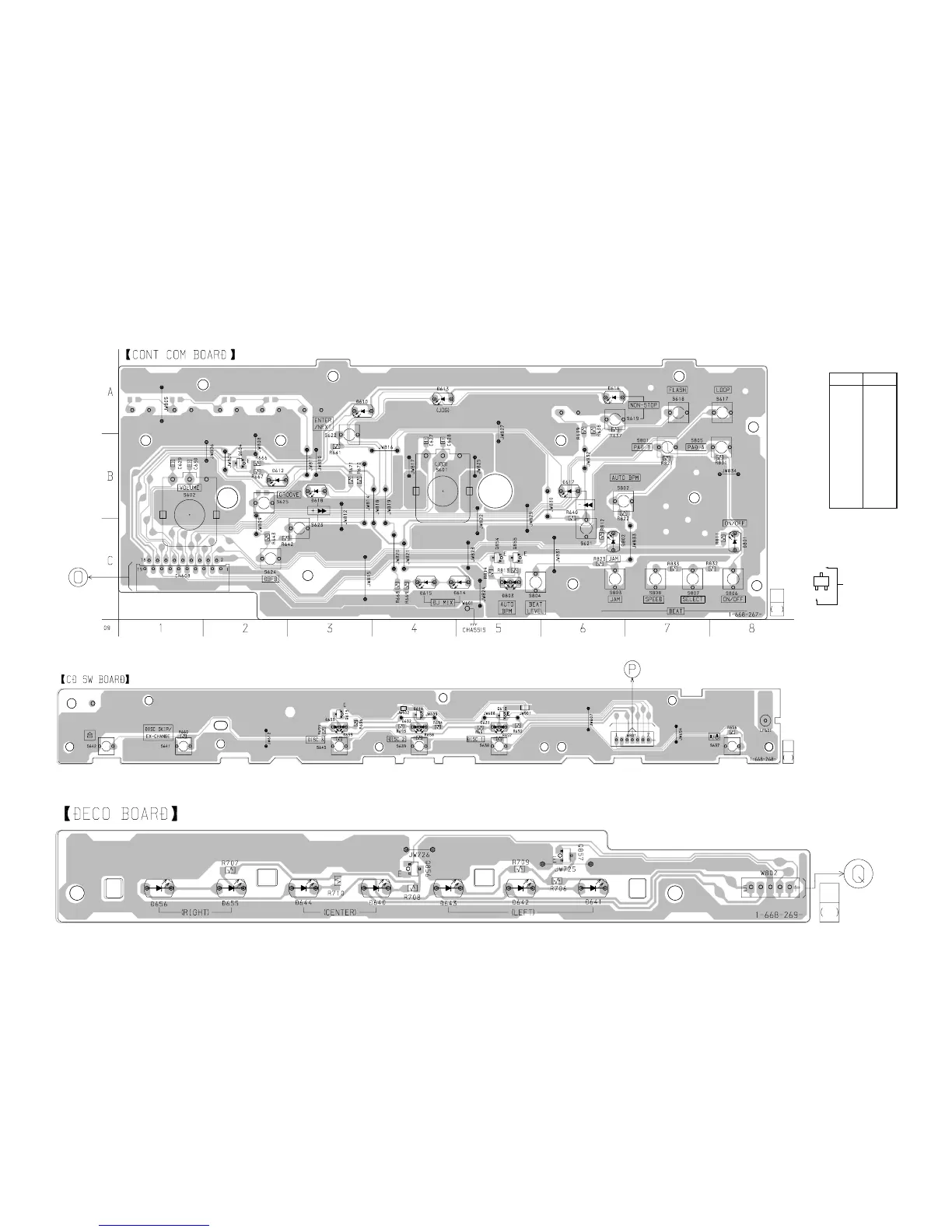

7-27. PRINTED WIRING BOARD – PANEL SECTION –
• See page 20 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
• Indication of transistor
D610 A-3
D612 B-2
D613 A-4
D614 C-5
D615 C-4
D616 A-6
D617 B-6
D618 B-3
D801 C-8
D802 C-6
D803 C-5
Q604 B-2
Q854 C-5
Q855 C-5
Q
C
These are omitte
d
EB
(Page 71)
12
11
( )
(Page 72)
1 2
1 1
(Page 72)
1 2
1 1
