Sony HCD-RX110AV - Cassette Mechanism Deck; Panel Board and Cont Com Board

– 9 –

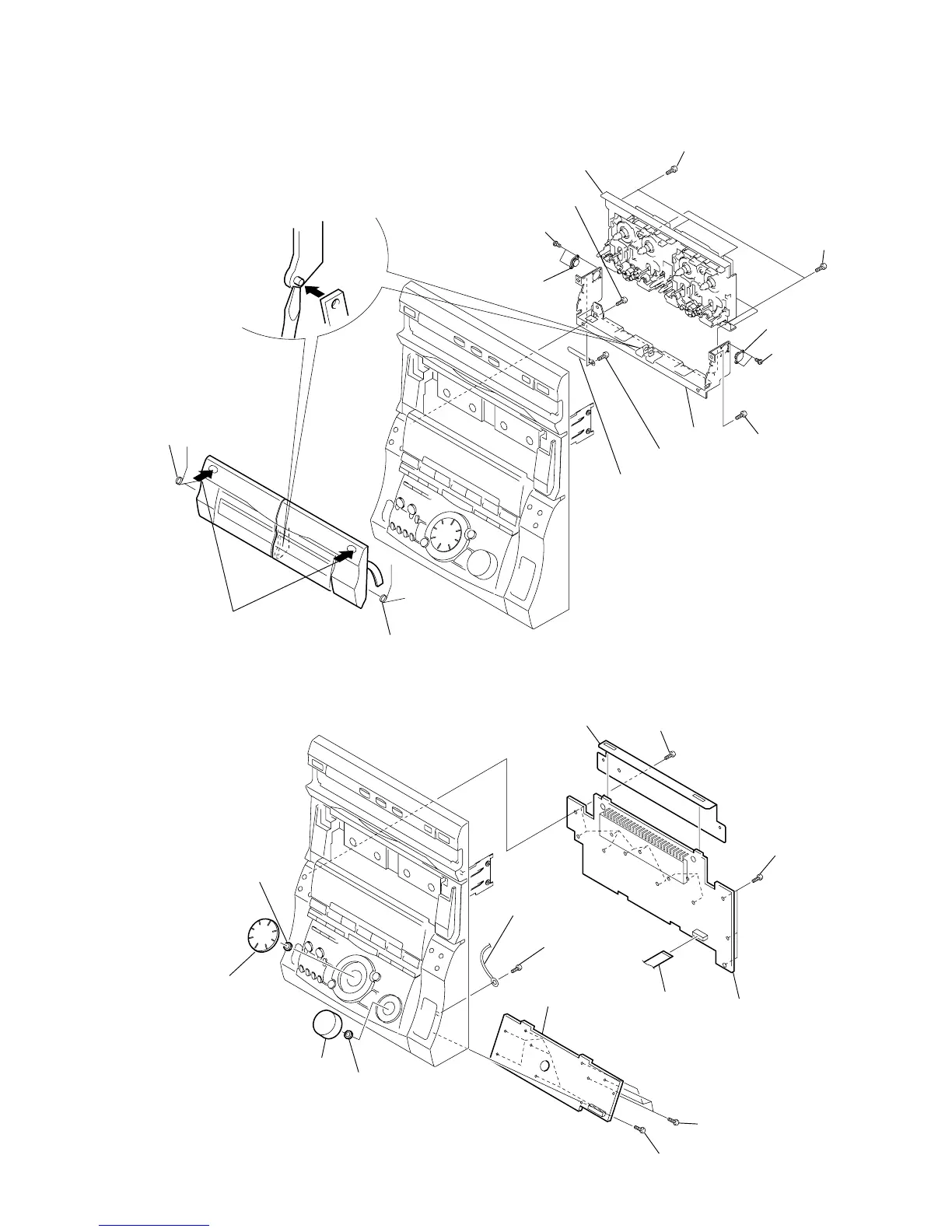

3-3. CASSETTE MECHANISM DECK
3-4. PANEL BOARD AND CONT COM BOARD
1 Ten screws
(BVTP 2.6x8)
2 Three screws
(BVTP 2.6x8)
!™ Four screws
(BVTP 2.6x8)
!£ Six screws
(BVTP 2.6x8)
3 Panel board
!¢ CONT COM board
!º Screw
(BVTP 2.6x8)
!¡ Wire
4 Shield
5 Flat type wire
(CN602)
6 Konb(Jog)
7 Nut
9 Nut
8 Konb(Volume)
1 Two screws
(BVTT 2x4)
2 Two screws
(BVTT 2x4)
9 Three screws
(BVTP 2.6x8)
!º Two screws
(BVTP 2.6x8)
!¢ Two screws
(BVTP 2.6x8)
!¡ Screw
(BVTP 2.6x8)
!™ Screw
(BVTP 2.6x8)
!£ Wire holder
!∞ Bracket
!§ Mechanism deck
3 Damper, oil
4 Damper, oil
5 Push the cassette lids.
6 Remove the cassette lids.
7 Spring
8 Spring
