Sony HCD-RX110AV - SERVICING PROCEDURES; Servicing Notes and Disassembly

– 5 –
SECTION 1
SERVICING NOTE

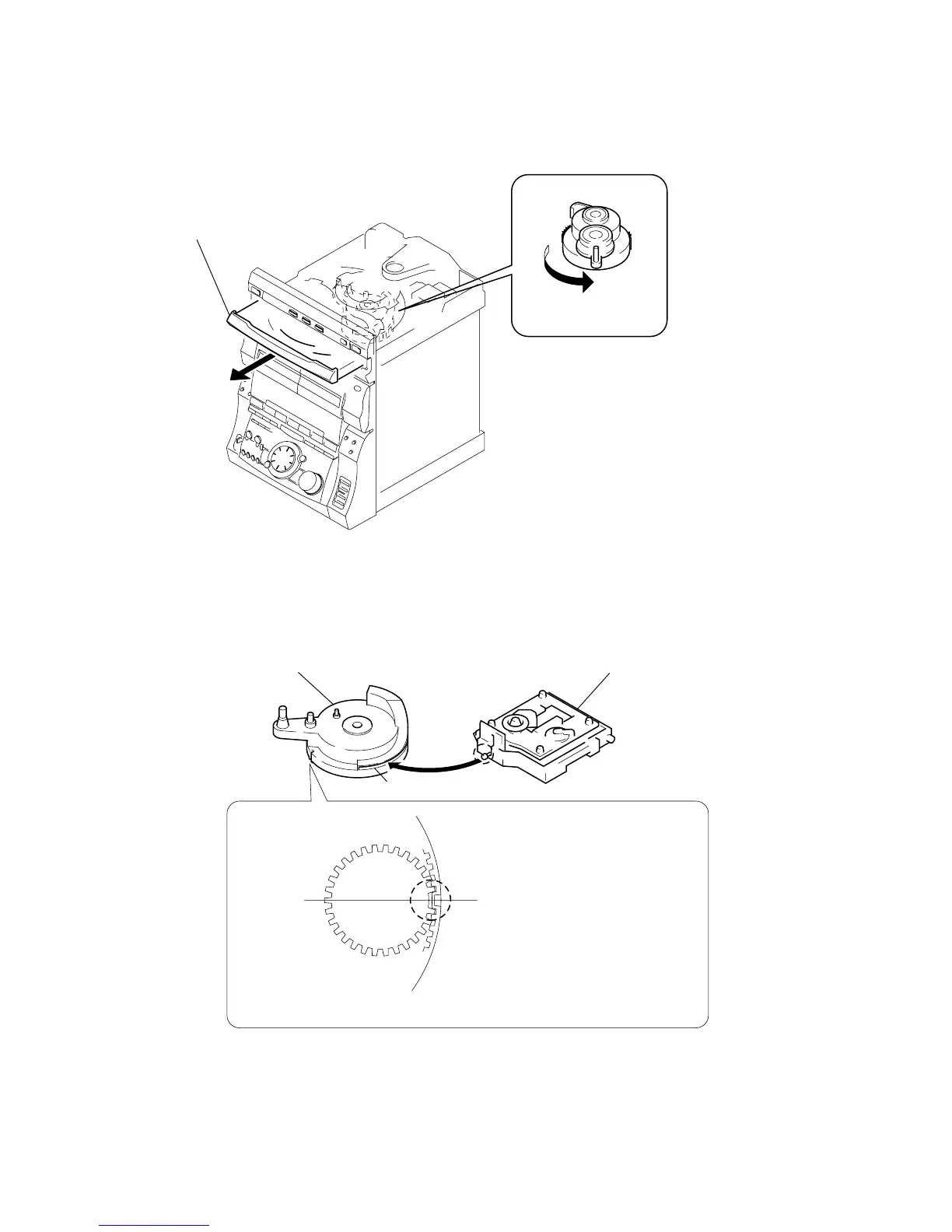

HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH
TURNS OFF
1 Remove the Case.
Note for Installation (ROTARY ENCODER)
3 pull-out the disc tray.
2 Turn the cam to the
direction of arrow.
BU cam
Groove
Section A
Note:When attaching the Base unit, Insert the
section A into the groove of BU cam.
Note:When attaching the BU cam,
engage the Rotary encoder
switch as shown in the figure.
