SECTION 8
EXPLODED VIEWS

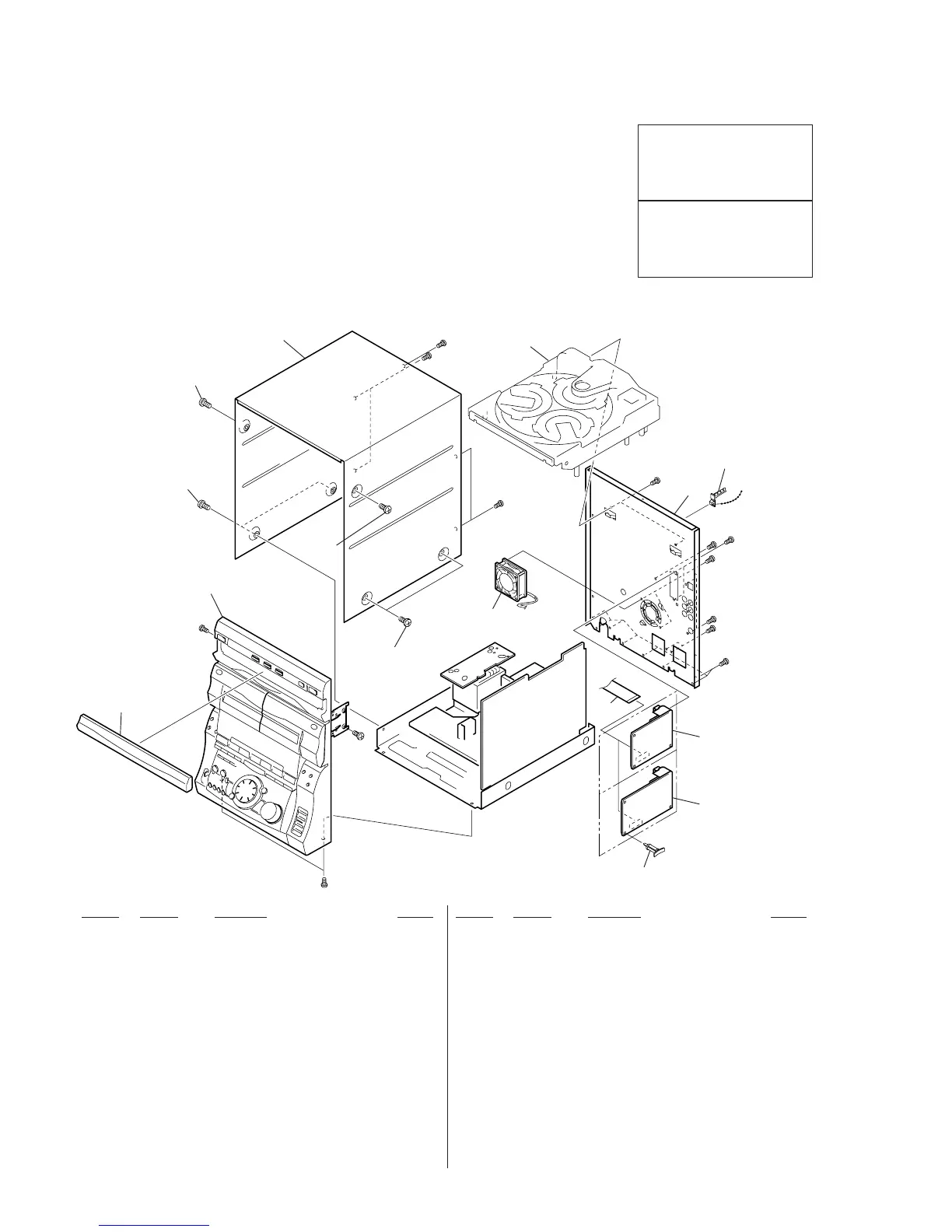

8-1. CASE SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
G : German model.
EE : East European model.
AUS : Australian model.
EA : Saudi Arabia model.
SP : Singapore model.
HK : Hong Kong model.
MY : Malaysia model.
TH : Thai model.
E2 : Without SW tuner E model.
E3 : With SW tuner E model.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-996-816-01 CASE
2 3-363-099-71 SCREW (CASE 3 TP2)
3 3-363-099-11 SCREW (CASE 3 TP2)
4 4-996-784-41 PANEL, LOADING (GRX10AV:EXCEPT TH)
4 4-996-784-51 PANEL, LOADING (GRX10AV:TH/RX110AV)
* 5 4-996-819-01 PANEL, BACK (RX110AV:AEP,G,UK)
* 5 4-996-819-11 PANEL, BACK (RX110AV:EE,CIS)
* 5 4-996-819-21 PANEL, BACK (RX110AV:CND)
* 5 4-996-819-31 PANEL, BACK (GRX10AV:TH)
* 5 4-996-820-01 PANEL, BACK (GRX10AV:E2,E3)
* 5 4-996-820-11 PANEL, BACK (GRX10AV:SP,MY)
* 5 4-996-820-21 PANEL, BACK (GRX10AV:HK)
* 5 4-996-820-31 PANEL, BACK (GRX10AV:AUS)
* 5 4-996-820-41 PANEL, BACK (GRX10AV:EA)
* 6 A-4303-588-A TCB BOARD, COMPLETE (EE,CIS)
* 6 A-4303-590-A TCB BOARD, COMPLETE (AEP,UK,G)
6 1-693-419-11 TUNER (FM/AM) (CND)
6 1-693-420-11 TUNER (FM/AM) (E2,TH,AUS)
6 1-693-421-11 TUNER (FM/AM) (E3,EA,SP,MY,HK)
7 4-956-370-12 BAND, PLUG FIXED
(GRX10AV:HK,AUS/RX110AV:UK)
8 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)(150mm)
(GRX10AV:E2,TH,AUS/RX110AV:CND)
8 1-773-009-11 WIRE (FLAT TYPE) (15 CORE)(150mm)
(GRX10AV:E3,EA,SP,MY,HK/RX110AV:AEP,G,UK,EE,CIS)
9 4-924-098-91 HOLDER, PC BOARD (RX110AV:AEP,G,UK,EE,CIS)
M901 1-698-792-11 FAN, DC (RX110AV)
M901 1-763-048-21 FAN, D.C. (GRX10AV)
1
2
2
3
3
4
5
7
8
9
#2
#2
#2
#2
#1
#2
#2
#2
#2
#2
CDM38L-5BD29AL
CDM38LH-5BD29AL
Front panel
M901
#2
6 (EXCEPT AEP,UK,
G,EE,CIS)
6 (AEP,UK,G,EE,CIS)
#3
#3
